3-phase network parameter analyzer
- Regular price
- €129,64
- Regular price
-
- Sale price
- €129,64
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty
3-Phase Network Analyzer / Network Analyzer / Network Parameter Meter - Multifunctional digital panel meter, current, voltage, frequency and total power indicator, with two relay outputs and digital input, RS485 ModBus RTU - TPM-01ESH manufacturer TENSE (Turkey)
The multifunctional power network analyzer is designed for accurate measurement of parameters of three-phase networks.
Power analyzers are designed to measure and monitor electrical values. Using the communication function, energy measurements can be independently monitored and reported.
Key benefits:
- RS485 Modbus RTU (1200-38400bps)
- 3-phase voltage transformer and 3-phase current transformer.
Display of voltage and current harmonics up to the 31st harmonic.
Displays active power per phase (P)
Displays reactive power per phase (Q, inductive and capacitive)
Displays apparent power per phase (S)
Displays the Cosφ and power factor values of each phase
Displays the phase-neutral, phase-to-phase voltage (V) and current (I) values of each phase, measurement frequency
Displays the total values for active energy import and export (ΣkWh)
Displays the total values of inductive and capacitive reactive energy (ΣkVArh)
Display of minimum and maximum values, max. demand
2 relay outputs, 1 digital input
Event logs (high/low voltage/current, voltage/current imbalance, THD-I)
Menu is password protected.

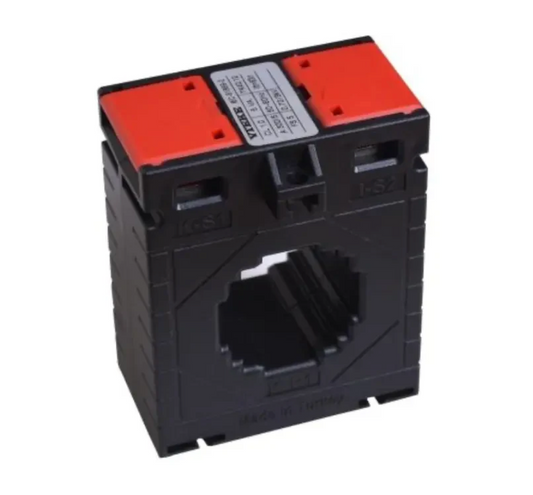

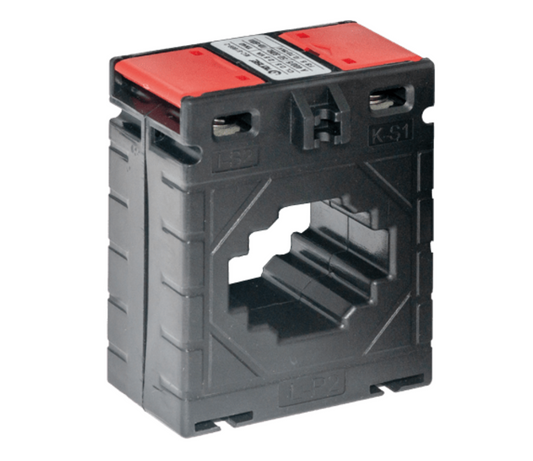

This network analyzer is typically used with current transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. If you want to connect the analyzer to ModBus, we will send you a register table with ModBus addresses upon request.
