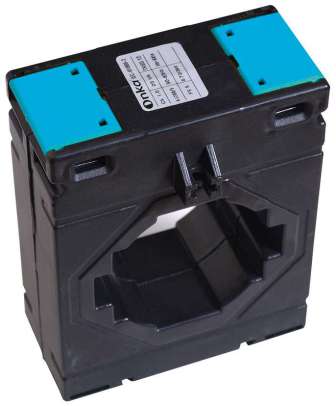

ONKA Current Transformer - CURRENT TRANSFORMER 600/5A, 60MM, CLASS 0.5S, 5VA (TK606005304 / 80011767)
- Regular price
- €27,20
- Regular price
-
- Sale price
- €27,20
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Clip-on measuring transformer for primary rated currents of 600 A, secondary current 5 A, rated outputs 5 VA, available in accuracy class 0.5S, ONKA.
The ONKA TK606005304 is a plug-in/window current transformer designed for indirect measurement of sinusoidal alternating current in power supply and measurement systems. It is suitable for household, commercial, and light industrial switching equipment.
Technical parameters
| Parameter | Value |
|---|---|
| Primary rated current | 600 A |
| Secondary current | 5 A |
| Mounting/internal rail diameter | Ø 60 mm |
| Rated power (secondary load) | 5 VA |
| Accuracy class | 0.5S |
| Mounting type | Built-in / plug-in, mounting feet included |
Product Description
The transformer converts primary current up to 600 A into a standard secondary current of 5 A, enabling a safe and convenient connection:
-
Meters and ammeters
-
protection and automation systems
-
monitoring and measuring equipment
The installation is done by sliding the transformer onto the bus and thanks to the included mounting feet, the main circuit does not need to be interrupted. The compact design allows installation even in cabinets with limited space.
Benefits
-
Handles current up to 600 A - suitable for medium-sized loads
-
Standard 5 A output - compatible with most measuring and control equipment
-
Accuracy class 0.5S - reliable and precise measurements suitable for measuring and control
-
Compact size (60 mm rail) - suitable for cabinets with limited space
-
Easy installation - clip-on housing + mounting feet, no interruption of the main circuit
-
Stability and compatibility - suitable for continuous current monitoring and measurement systems
Recommended use
-
Switchboards in residential, commercial, and light industrial installations
-
Current measurement, load monitoring, and protection control systems
-
Connection of meters, ammeters, and automation systems that require a stable output signal
