Vendor: TENSE

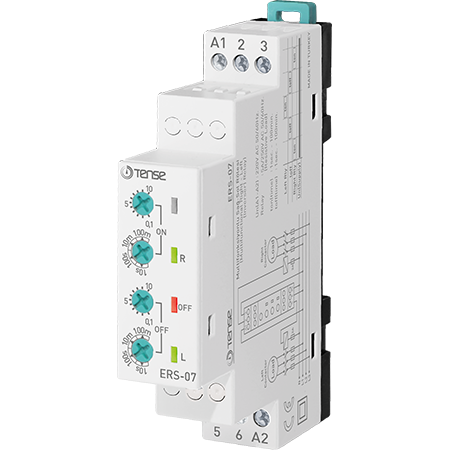

Time-reversing reverse cyclic relay 230V AC

Barcode: ERS-07
€40,12
€40,12
excl. VAT: €33
Low stock: 5 left
  • Description
  • Instructions
  • Payment methods
  • Warranty

Cyclic relay with time inversion - "left-right / up-down / forward-backward".

Product description

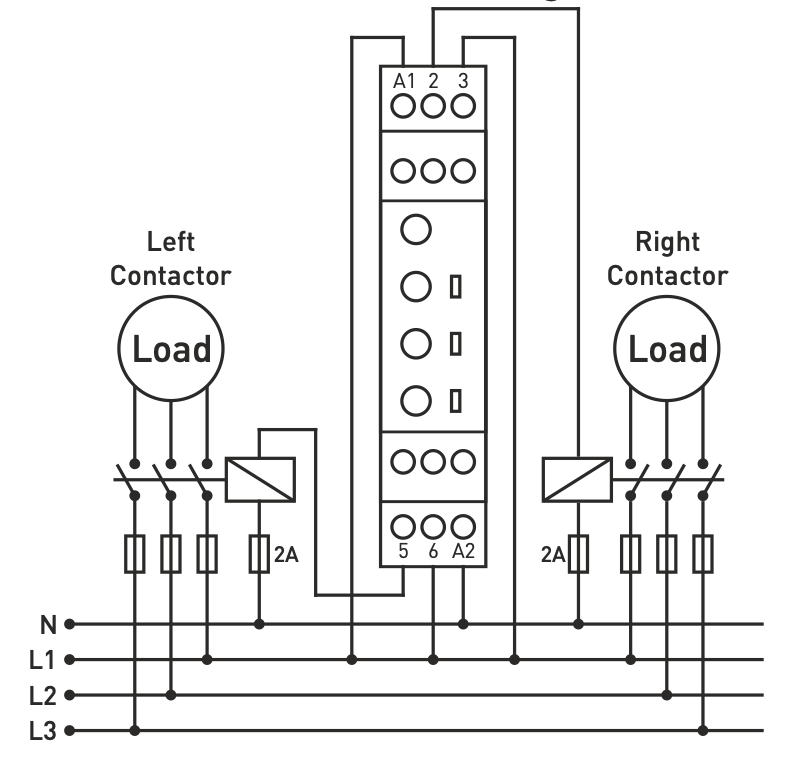

The inverse reverse cyclic time relay is designed for alternating switching of two independent loads. It can be used in the modes left-right, up-down, forward-backward and is also ideal for reversing electric motors with a safety delay between the switching operations.
Typical applications are automatic cycles in dishwashers, washing machines, door operators, lifting mechanisms, conveyor belts, or motion systems.

Main Features

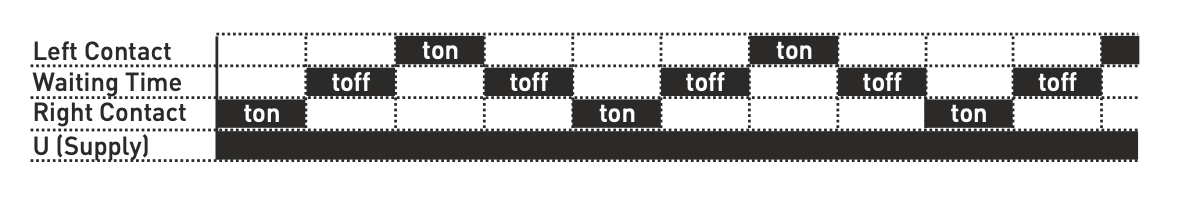

  • Cyclic switching of two outputs according to set times

  • Modes:

    • left - right

    • up - down

    • forward - backward

  • Built-in safety delay between switches

  • Ton- and Toff-timing independently selectable

  • Adjustable range 0.1 s to 100 minutes for both times

  • Suitable for controlling motors, actuators, valves, drives, and AC loads

Application

  • Reverse operation of electric motors

  • Automatic "back-and-forth" cycles

  • Sliding mechanisms, lifting systems

  • Two-position ventilation and pump systems

  • Equipment for dishwashers, washing machines, conveyor belts

  • Control of moving advertising elements or rotating devices

Mounting

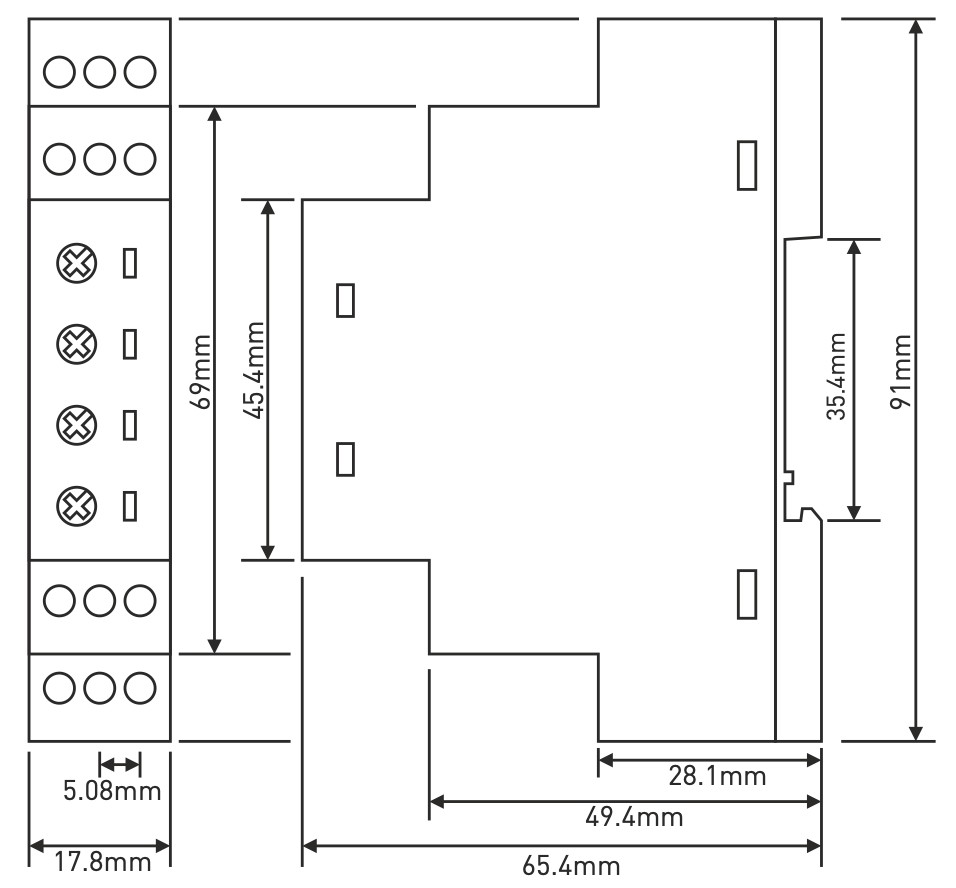

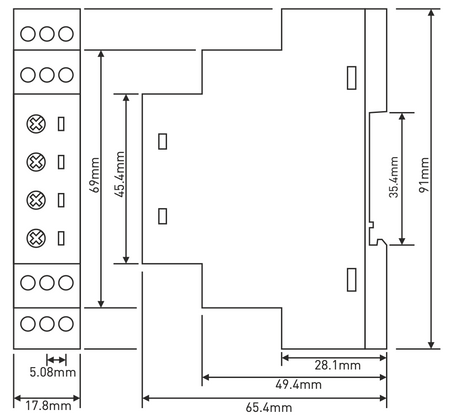

  • Installation on standard 35 mm DIN rail

  • Suitable for control cabinets, industrial enclosures, and automation systems
