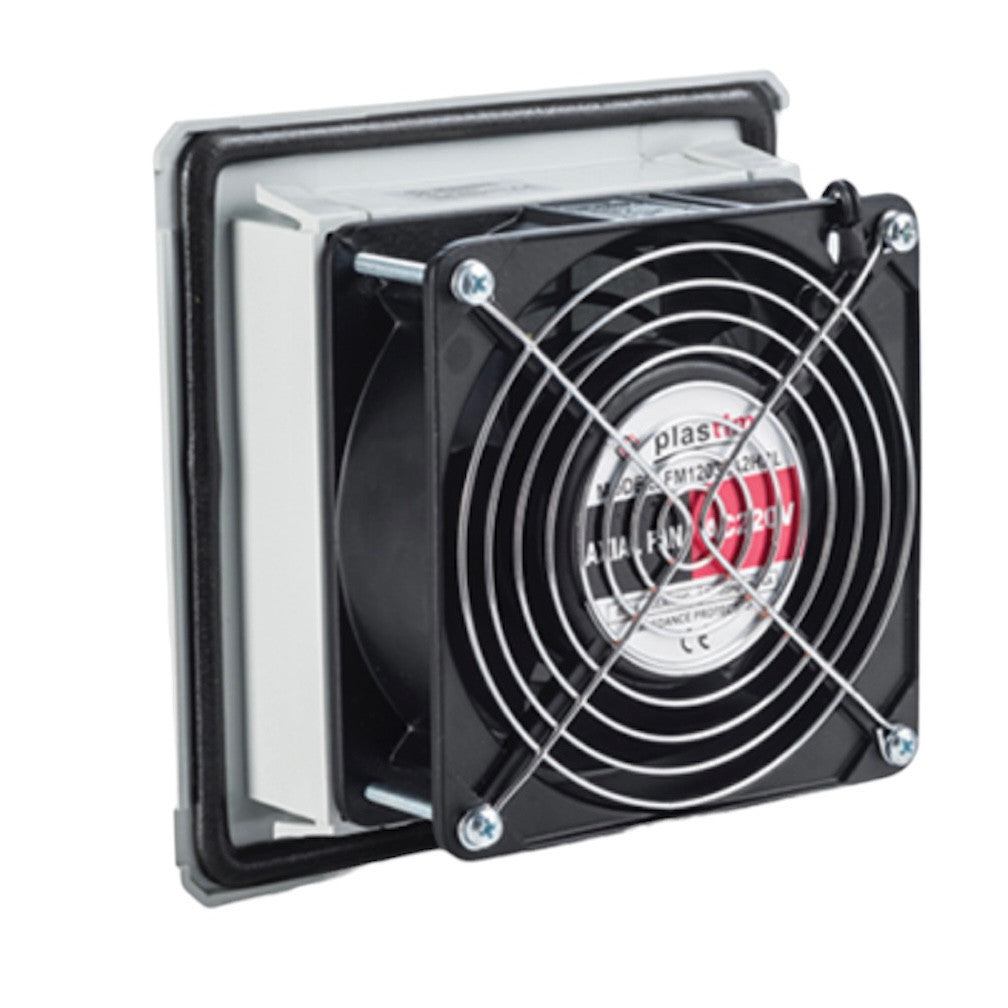

Fan with filter + clamp, 100 (140) m3/h 160x160, 230V 50/60Hz IP54 PTF1500T Plastim

Barcode: PTF1500T

Regular price: €46,12
Regular price
Sale price: €46,12
Unit price: per

18 in stock

Product variants

Description
Instructions
Payment methods
Warranty

Ventilation grille with fan and filter, size 160x160 mm, for installation in electrical panel, automation cabinet, ATM or gaming machine. PTF1500T, manufacturer Plastim (Turkey)

Used for outdoor air intake for electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed in the side walls of cabinets to maintain IP.

External dimensions: 160x160x69 mm
Installation size: 125x125mm
Air volume: 100 (140) m3/h
Sound level: 42 (46) dB(A)
Bearing: Ball bearing
Operating voltage: 220-230 VAC, 50/60 Hz
Current consumption: 0.14 (0.13) A
Nominal power: 26 (23) W
Electrical connection: 3-pole 2.5 mm2 terminal block
Airflow direction: Outside to inside (can be changed)
Operating temperature: -10/+70 °C
Protection class: IP54
Plastic: UL94 V0 ABS Flame retardant
Sealing: Polyurethane seal
Color: RAL 7035 (RAL 7032 on request)
Weight: 0.68 kg
Installation: Quick Clip-on

For automatic air exchange and temperature control with this fan, you need a simple bimetal thermostat or a more complex temperature controller. Both devices are available on our website.
