Ventilator with filter 850 (1200) m3/h, 325x325, 230V 50/60Hz IP54 PTF5000 Plastim

Barcode: PTF5000

Regular price: €330,72
Regular price
Sale price: €330,72
Unit price: per

13 in stock

Product variants

Description
Instructions
Payment methods
Warranty

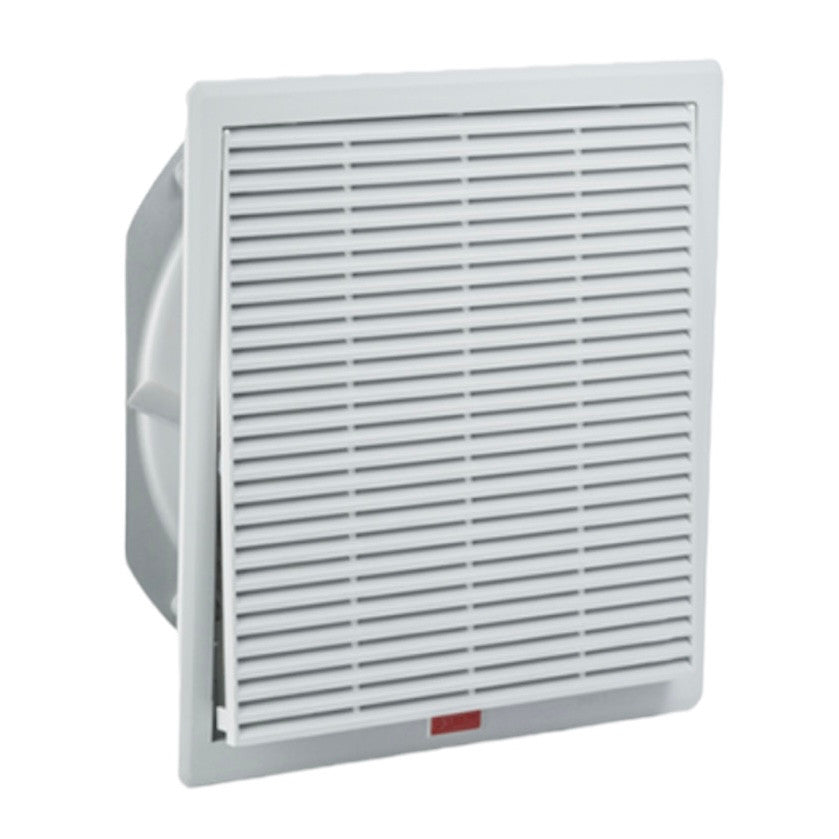

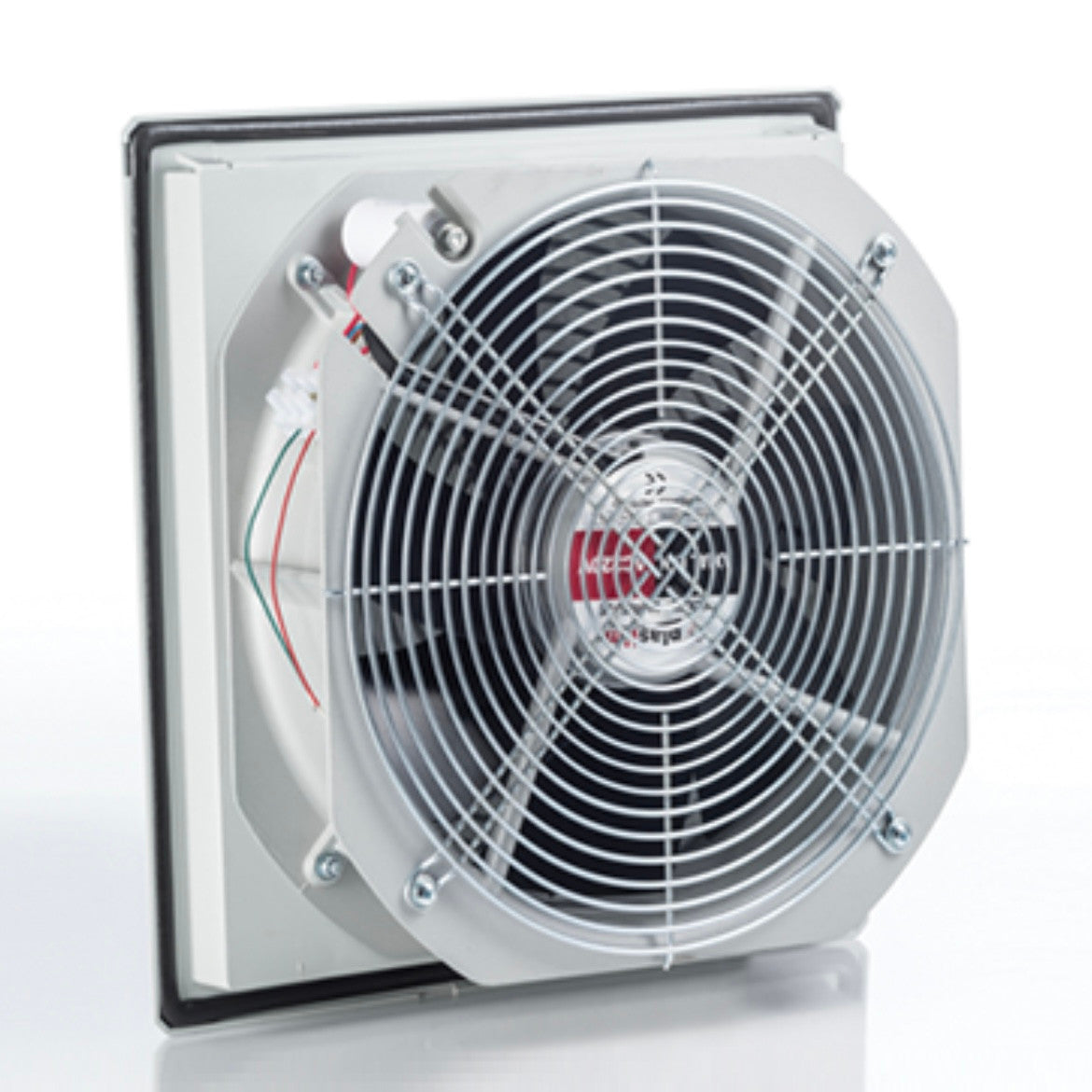

Ventilation grille with fan and filter, size 325x325 mm, for installation in electrical panel, automation cabinet, ATM or gaming machine. PTF5000, manufacturer Plastim (Turkey)

Used for outdoor air intake for electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed in the side walls of cabinets to maintain IP.

External dimensions: 325x325x111 mm
Installation dimensions: 291x291 mm
Airflow: 850 (1200) m3/h
Noise level: 65 (68) dB(A)
Bearing: Ball bearing
Operating voltage: 220-230 VAC, 50/60 Hz
Power consumption: 0.35 (0.72) A
Nominal power: 110 (140) W
Electrical connection: 4-pole terminal
Flow direction: Outside to inside (can be changed)
Operating temperature: -10/+70 °C
Protection class: IP54
Plastic: UL94 V0 ABS Flame retardant
Sealing: Polyurethane sealing
Color: RAL 7035 (RAL 7032 on request)
Weight: 4.12 kg
Installation: Quick Clip-on

The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.

For automatic air exchange and temperature control with this fan, you need a simple bimetal thermostat or a more complex temperature controller.
