Ventilator with filter, 240 (270) m3/h, 260x260, 230V 50/60Hz IP54 PTF3500 Plastim

Barcode: PTF3500

Regular price: €106,24
Regular price
Sale price: €106,24
Unit price: per

40 in stock

Product variants

Description
Instructions
Payment methods
Warranty

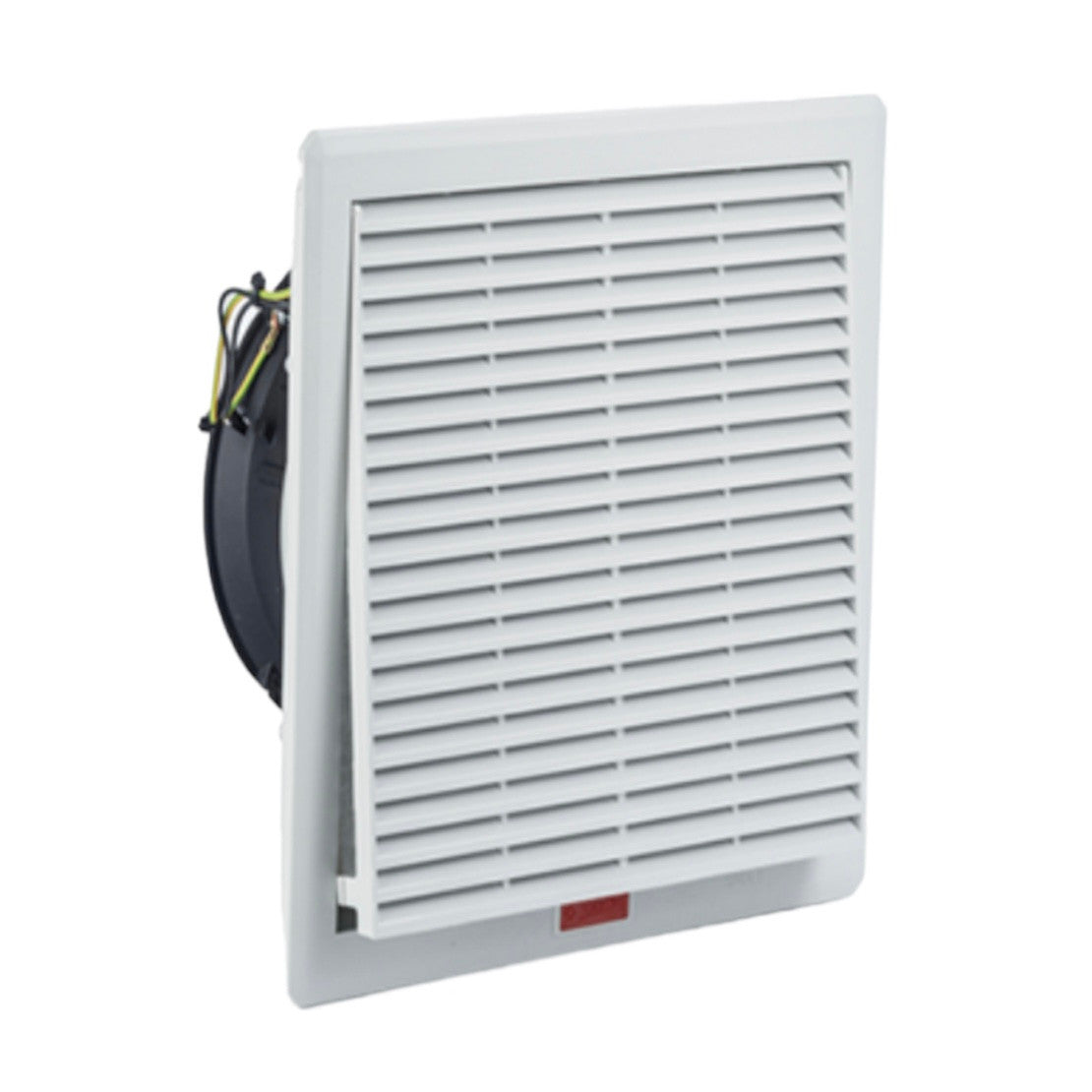

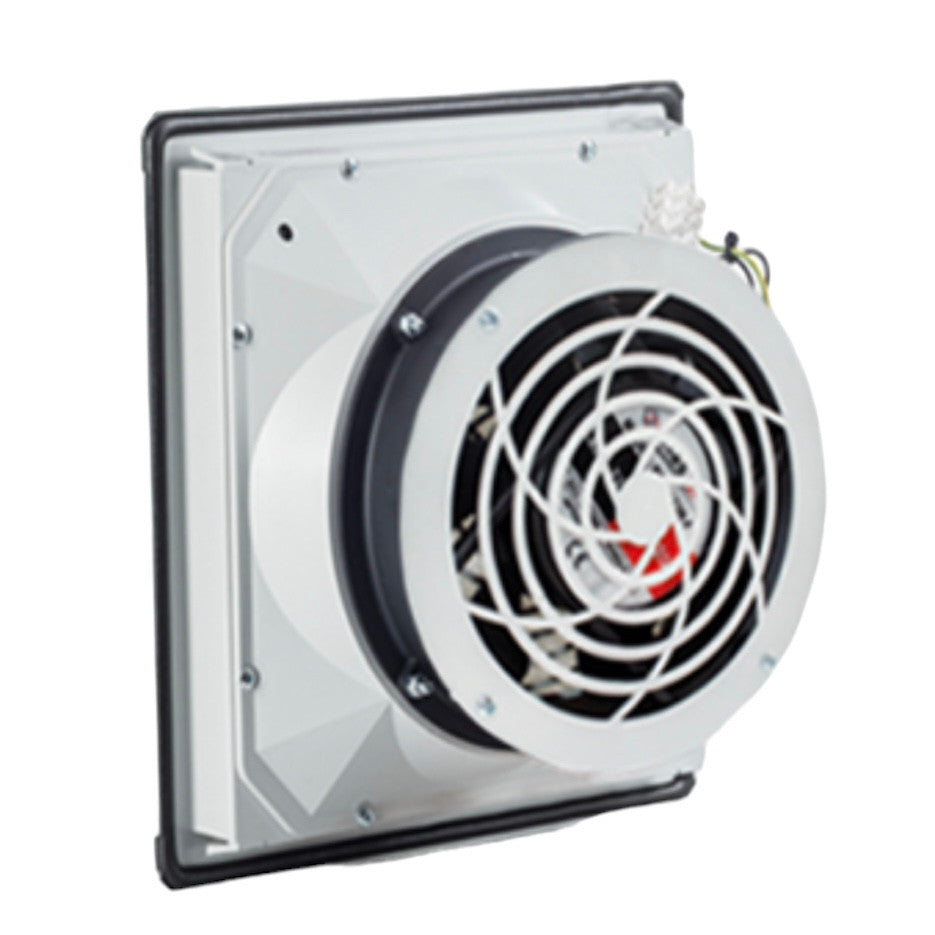

Ventilation grille with fan and filter, size 260x260 mm, for installation in electrical panel, automation cabinet, ATM or gaming machine. PTF3500, manufacturer Plastim (Turkey)

Used for outdoor air intake for electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed in the side walls of cabinets to maintain IP.

External dimensions: 260x260x103 mm
Installation size: 223x223 mm
Air volume: 240 (270) m3/h
Sound level: 52 (53) dB(A)
Bearing: Ball bearing
Operating voltage: 220-230 VAC, 50/60 Hz
Power consumption: 0.23 (0.22) A
Power: 37 (35) W
Electrical connection: 3-pole terminal
Flow direction: Outside to inside (can be changed)
Operating temperature: -10/+70 °C
Protection class: IP54
Plastic: UL94 V0 ABS Flame retardant
Sealing: Polyurethane seal
Color: RAL 7035 (RAL 7032 on request)
Weight: 1.6 kg
Installation: Quick Clip-on

For automatic air exchange and temperature control with this fan, you need a simple bimetal thermostat or a more complex temperature controller. Both devices are available on our website.

The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.

Manual

https://files.principalelektrik.org/Filter%20FANS%2030m3%20%28%20SKU%20PFI1000%2C%20SKU%20PFI1500%2C%20SKU%20PFI2000%2C%20SKU%20PFI2500%2C%20SKU%20PFI3000%2C%20SKU%20PTF1000%2C%20SKU%20PTF1000T%2C%20SKU%20PTF1500%2C%20SKU%20PTF1500T%2C%20SKU%20PTF2500%2C%20SKU%20PTF2000%2C%20SKU%20PTF3000%2C%20SKU%20PTF3500%2C%20SKU%20PTF4500%2C%20SKU%20PTF5000.pdf
