Plastim

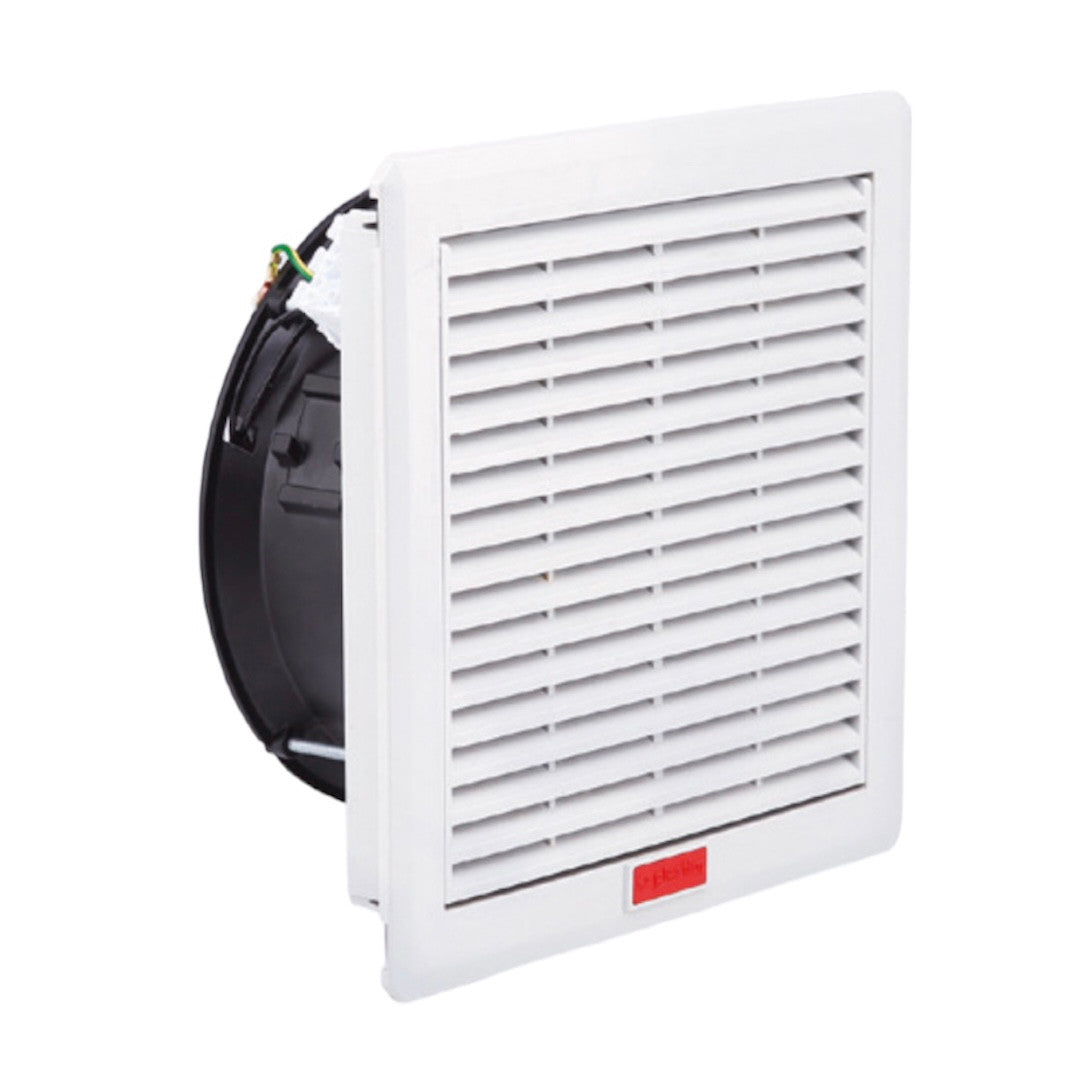

Ventilator with filter, 175 (245) m3/h, 210x210, 230V 50/60Hz IP54 PTF3000 Plastim

In stock - 47 items available
SKU: PTF3000
€81,36 incl. VAT

Online payment by card – After completing the order, you will be redirected to the payment portal. You will receive a payment confirmation by email.

Cash on delivery – You pay the amount according to the payment instructions directly to the driver of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day. It contains the account number you should specify when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you want to use one of the last two payment methods, please contact our manager. He will give you instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In case of a complaint, no return shipping fee will be charged.

Ventilation grille with fan and filter, size 210x210 mm, for installation in electrical panel, automation cabinet, ATM or gaming machine. PTF3000, manufacturer Plastim (Turkey)

Used for outside air intake for electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed in the side walls of cabinets to maintain IP.

The ventilation grille is equipped with a replaceable filter. This filter pattern can be easily replaced or cleaned and reused.

  • External dimensions: 210x210x92 mm
  • Installation size: 175x175mm
  • Air volume: 125 (175) m3/h
  • Noise level: 52 (53) dB(A)
  • Bearing: Ball bearing
  • Operating voltage: 220-230 VAC, 50/60 Hz
  • Current consumption: 0.23 (0.22) A
  • Power: 37 (35) W
  • Electrical connection: 3-pole terminal
  • Flow direction: Outside to inside (can be changed)
  • Operating temperature: -10/+70 °C
  • Protection class: IP54
  • Plastic: UL94 V0 ABS Flame retardant
  • Sealing: Polyurethane sealing
  • Color: RAL 7035 (RAL 7032 on request)
  • Weight: 1.45 kg
  • Installation: Quick Clip-on

For automatic air exchange and temperature control with this fan, you need a simple bimetal thermostat or a more complex temperature controller. Both devices are available on our website.
