Monitoring/Security Relay for Overvoltage, Undervoltage Control

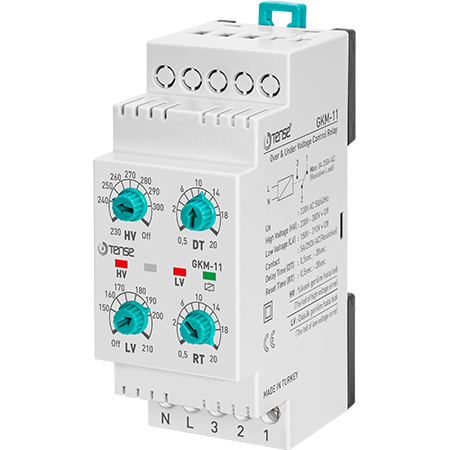

GKM-11 - Single-phase overvoltage and undervoltage relay, TENSE

Product description

The GKM-11 relay is used to protect sensitive equipment against over- and undervoltage in single-phase distribution systems. When the set over- or undervoltage limit is exceeded, the relay opens the output contact and switches off the load, preventing damage to the equipment.

Function and operation

• Status indication:

  • Normal status - green LED

  • High voltage fault - red "HV" LED

  • Low voltage fault - red LED "LV

• Adjustable protection: over- and undervoltage limits, switching delay (DT) and reset time (RT)

• Relay contact: 5 A / 250 V AC (resistive load)

Technical details

• Operating voltage: 220 V AC, 50/60 Hz

• High voltage range: 230-300 V

• Low voltage range: 150-210 V

• Delay and reset time: 0.5-20 s

• Power consumption: <6 VA

• Operating temperature: -20 °C to +55 °C

• Mounting: DIN rail

• Weight: 0.1 kg

• Max. cable cross-section: 2.5 mm²

• Max. installation height: 2000 m

Application

• Single-phase distribution and switching equipment

• Sensitive electrical equipment, household appliances, industrial machines
