Relay interface with mounting block - 6 A, 12-24 V AC/DC, HB+NC (HF-41F)

Product description

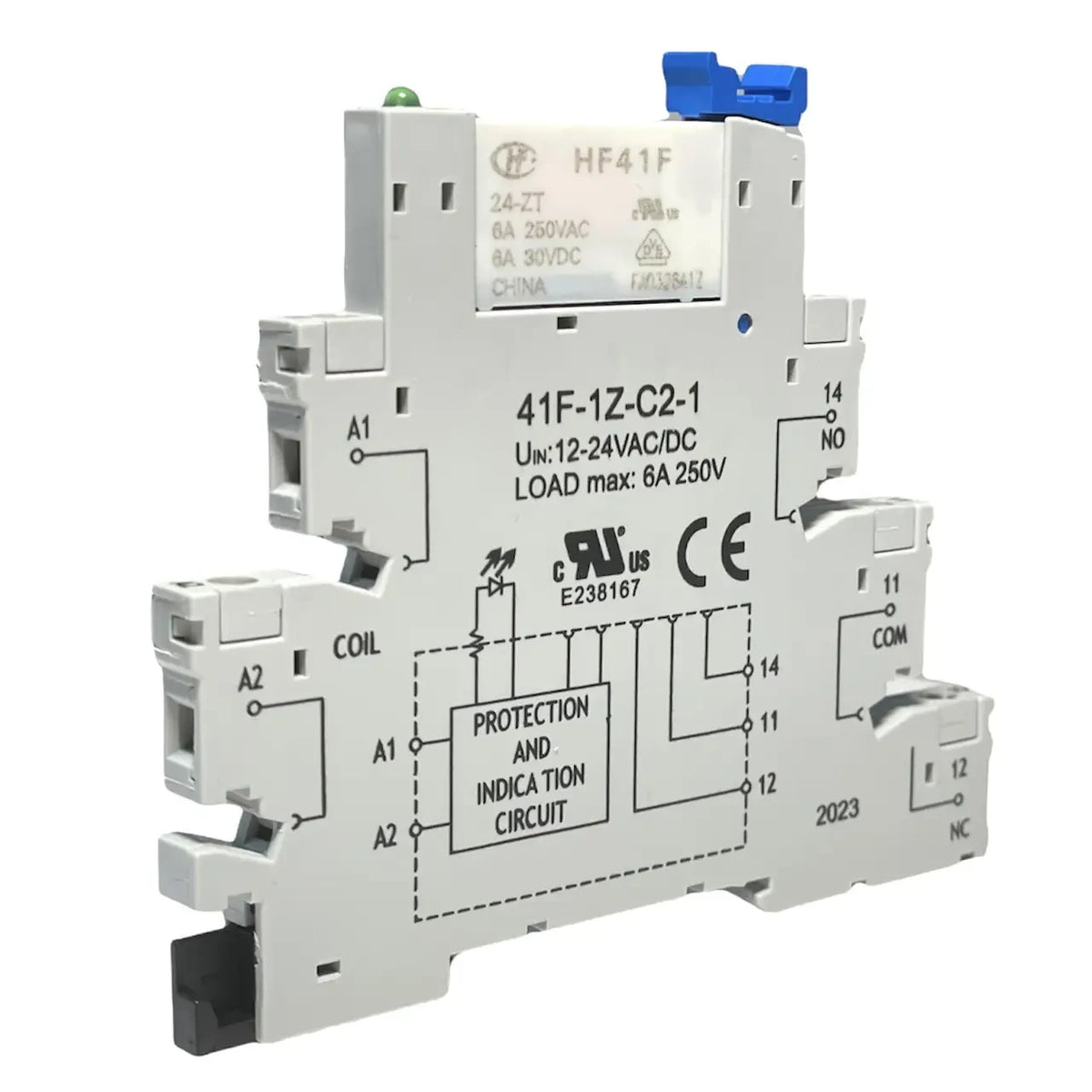

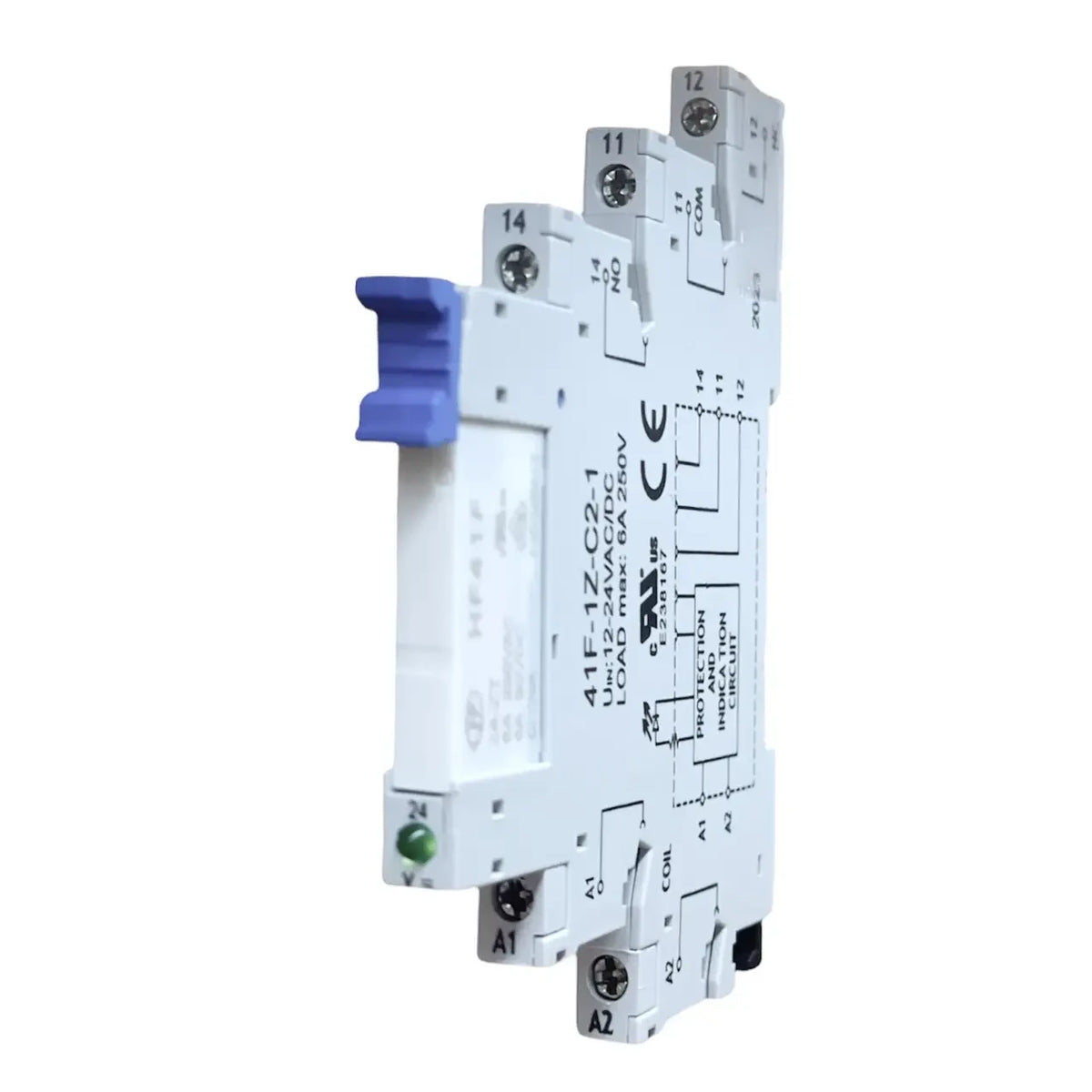

The relay interface HF-41F consists of the base module 41F-1Z-C2-1 and the plug-in mini relay HF41F/24-ZT with power contacts.
Used for galvanic isolation, amplification of control signals from PLCs, control systems or sensors, and to increase the switching capacity of output circuits.

Thanks to the modular design, the relays can be quickly replaced without dismantling the entire module - ideal for industrial applications, automation, and control cabinets.

Features and benefits

• Galvanic isolation of control and power circuits

• Increased switching capacity of PLC output signals

• Mounting on DIN rail (standard 35 mm)

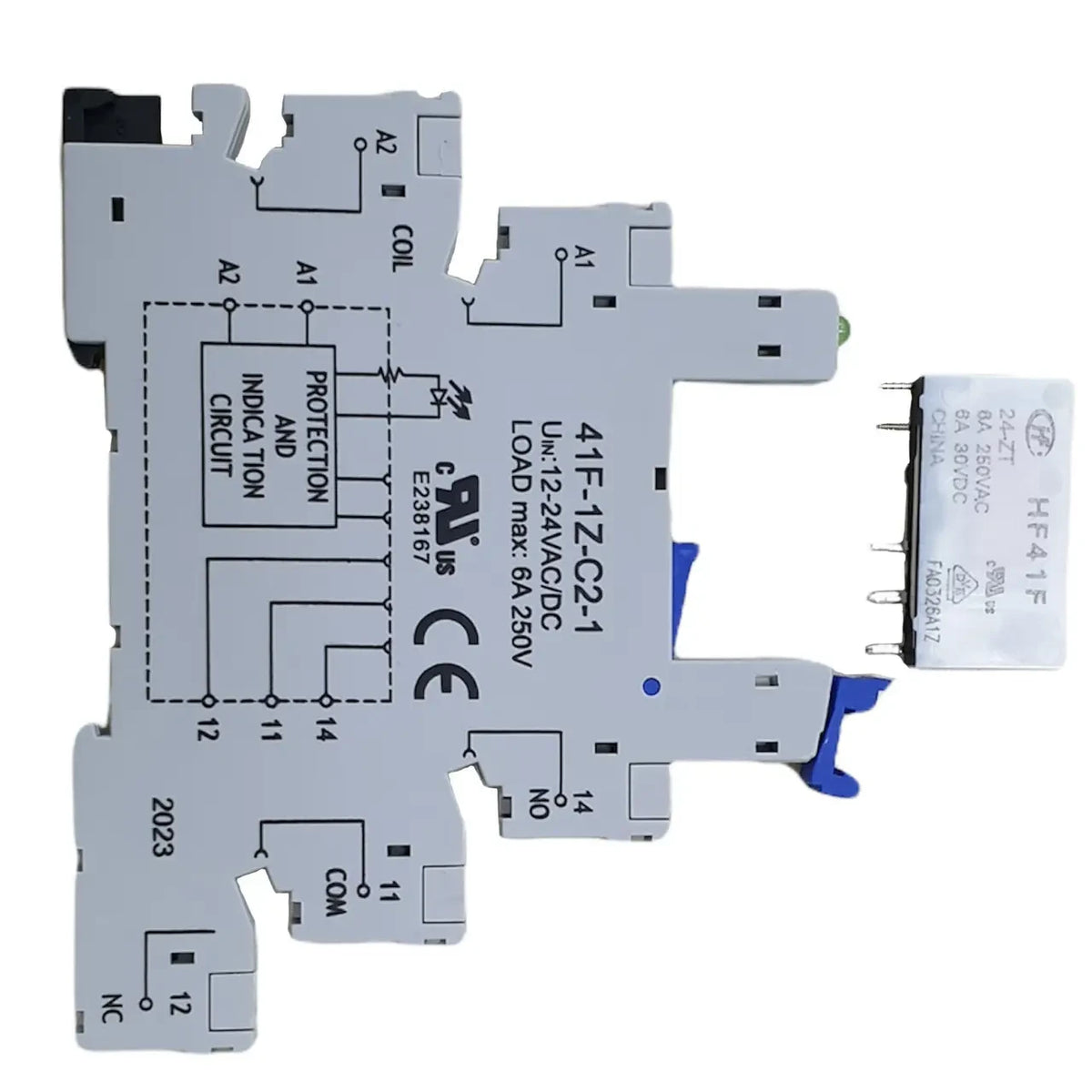

• Quick relay change - plug-in design without dismantling the entire module

• Space-saving thanks to width of only 6 mm

• LED status indication (green relay activation lamp)

• Suitable for AC/DC input voltage 12-24 V

Technical parameters

• Input voltage: 12-24 V AC/DC

• Rated operating voltage of contacts:

  • AC: 250 V

  • DC: 30 V

• Rated current: 6 A

• Contact type: NO + NC (1 changeover contact)

• Indication: green LED

• Operating temperature: -20...+55 °C

• Protection rating: IP20

• Module width: 6 mm

• Version: base + plug-in relay HF41F

Application

• Automation and industrial control

• PLC outputs with low current

• Separation of signal and power circuits

• Control of switches, valves, motors, signaling

• Installation in enclosures with high component density
