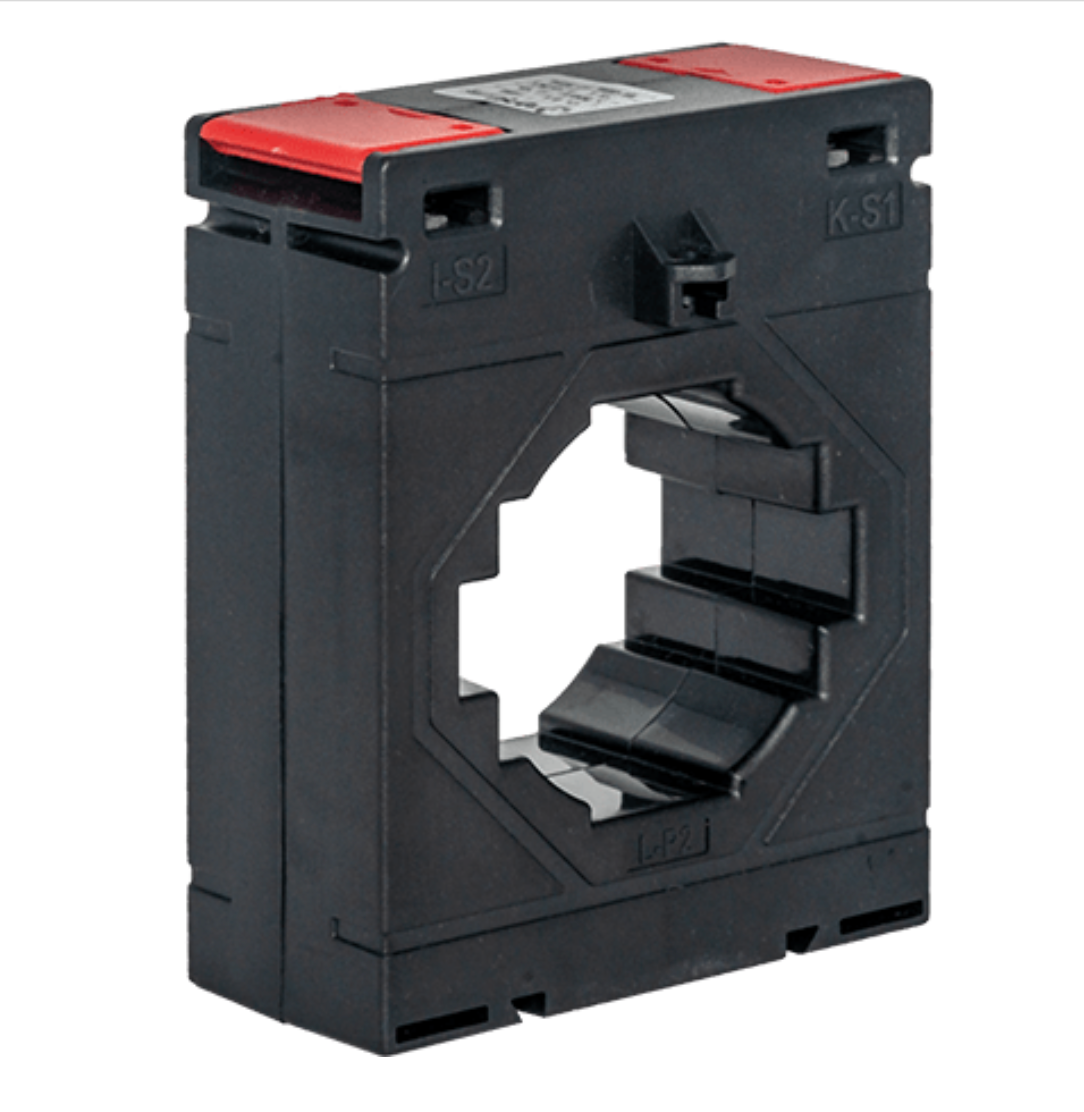

TK80 - Current measuring transformer 1500/5
- Regular price
- €39,68
- Regular price
-
- Sale price
- €39,68
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
|
Current transformer 81x13, 1500/5A -0.5S - 20VA - 80mm, Voltage
Voltage transformers enable accurate measurement and control of electrical parameters in AC systems. They convert high current values into lower, safe values for measuring equipment, allowing electrical systems to be efficiently controlled and managed. Technical specifications
Coefficient: 1500/5A Load capacity: 20VA Accuracy class 0.5S Terminal block Non-removable cover; for high-voltage conductors; Made of brass for extra safety Housing Non-flammable, self-extinguishing ABS Mounting KK0001 or KK0002 Primary winding 80 x 10 mm Round conductor Ø 65 mm T-resistance against short-circuit current Ith = 60*In T-resistance against exposure to constant current Id = 1 * In Ambient temperature (operating hours) -25°C~+85°C Rated frequency 50 Hz ... 60 Hz Switching current limitation FS 5 Test voltage 3 kV for 1 minute Max. system voltage 0.72 kV Standards: IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN57414, BS3938, BS7626, EN 61869
Advantages of voltage current transformers: High accuracy: provide reliable measurements for precise control of electrical parameters. Wide range of rated currents: allows selecting the optimal model for specific needs. Various sizes: different window sizes provide flexibility in installation and compatibility with different conductors. Reliability and durability: made from high-quality materials that ensure a long service life. |
The choice of voltage current transformers guarantees stable operation of electrical systems and measurement accuracy, a key factor for efficient energy management.
Downloaden
Technische informatie over stroomtransformatoren (996 kB) - te versturen op aanvraag
Online payment by card – after completing the order, you will be redirected to the payment page. The payment confirmation will be sent to your e‑mail.
Cash on delivery (COD) – you pay the amount directly to the driver upon delivery.
By bank transfer – at the latest on the next working day, you will receive a pro-forma invoice by e‑mail with the account number to which you can pay.
On invoice – this payment option is available for partners who have concluded a framework agreement with our company.
If you want to use one of the last two payment methods, please contact our business manager. He will explain to you how to receive an invoice with or without VAT.
The electrical equipment we supply meets high quality standards, has a 24-month warranty, and fully complies with all EU requirements.
In case of a complaint, no return costs will be charged.
