Vendor: TENSE

Time relay 230 V/AC 8-pole, 48 x 48 mm

Barcode: ERS-12Y
€17,84
€17,84
excl. VAT: €15
Low stock: 2 left
variant: 0-12s
  • Description
  • Payment methods
  • Warranty

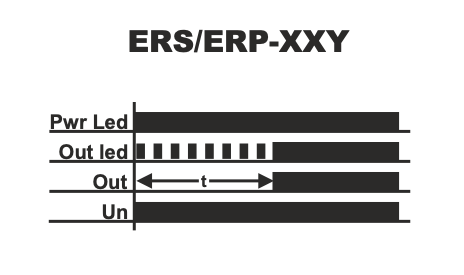

Delay relay (ON-DELAY) timer built-in single function 230 V/AC with 1 switching contact, socket design, 8-pin, 1/16DIN (48 x 48 mm) (TENSE)

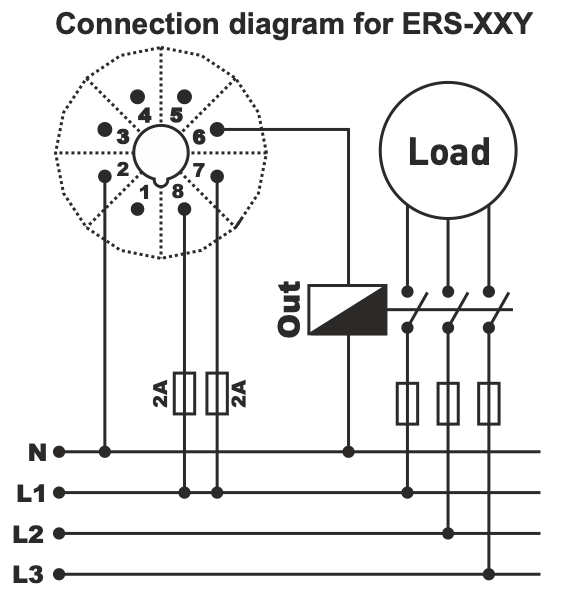

The delay relay is used to switch loads in stages: electric boilers, ovens, heating devices, etc., thereby preventing power surges in the network and the tripping of circuit breakers due to large overvoltages.

It can also be used to coordinate the switch-on time of various devices in machines, apparatus, or other equipment.

Time range:

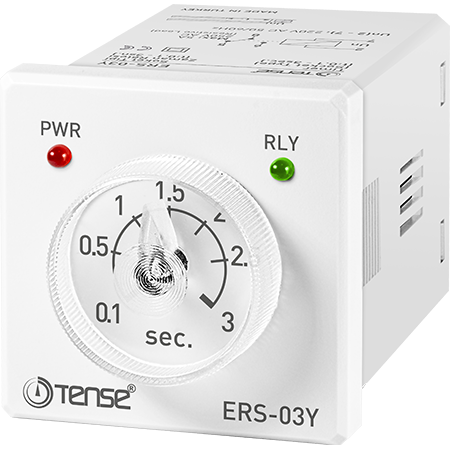

ERS-03Y - 0-3 s

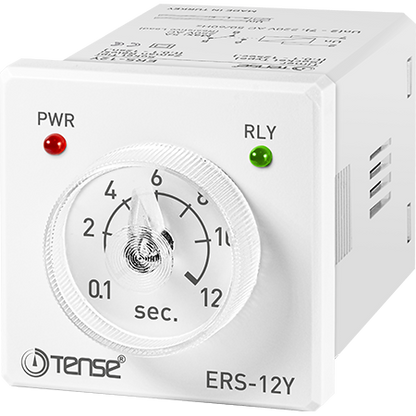

ERS-12Y - 0-12 s

ERS-30Y - 0-30 s

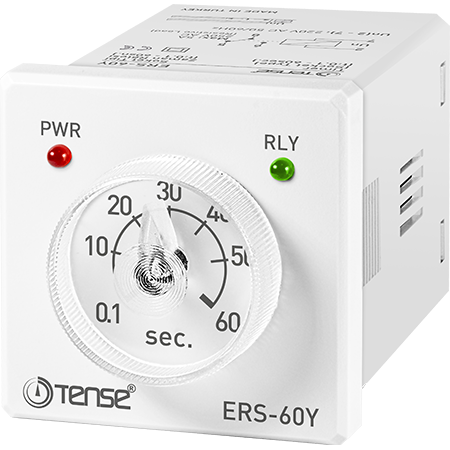

ERS-60Y - 0-60 s

ERS-03DY - 0-3 min.

ERS-12DY - 0-12 min.

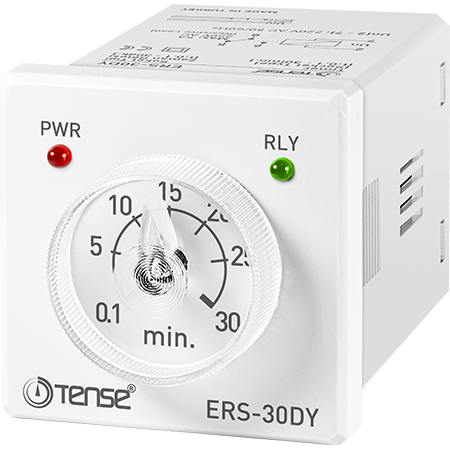

ERS-30DY - 0-30 min.

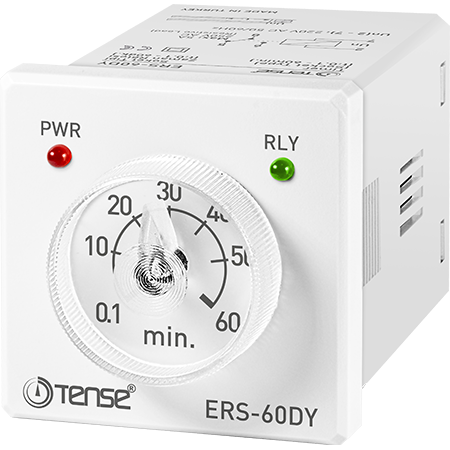

ERS-60DY - 0-60 min.
