Vendor: TENSE

Temperature controller for panel mounting ON - OFF with external sensor

Barcode: DT-322
€31,64
€31,64
excl. VAT: €26
Out of stock
  • Description
  • Instructions
  • Payment methods
  • Warranty

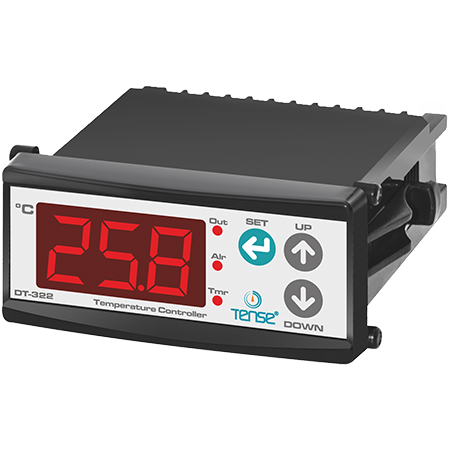

Thermostat / 2-point temperature controller DT-322 - TENSE (Turkey)

Description:
2-point temperature controller for panel mounting with ON/OFF mode. Designed for control and monitoring of thermal processes in heating, air conditioning, ventilation systems, building automation, and industrial applications.

Main Features

  • Sensor type: NTC

  • Outputs: Relay OUT and ALARM (NO+NC), 250 VAC, 2A

  • Optional function: Heating/Cooling

  • Adjustable hysteresis for SET and ALARM

  • OUTPUT ON delay for cooling mode

  • Adjustable ON/OFF timers for OUT output in case of sensor failure

  • Upper and lower limits for SET and ALARM settings

  • EEPROM memory for storing settings

  • Password protection against unauthorized parameter changes

  • High measurement accuracy

Technical parameters

  • Measuring range: -19.9 °C ... +99.9 °C

  • Resolution/step: 0.1 °C

  • Power supply and operation: standard size for panel mounting

  • Relay outputs: 250 VAC / 2 A

Application

  • Temperature control in industrial equipment, air conditioning, and heating

  • Temperature process monitoring

  • Equipment protection and process automation
