Step switch 0-1-2-3-4 degrees rotary switch, 1-2 pole, 10-160A

Online payment by card – After completing the order, you will be redirected to the payment portal. You will receive a payment confirmation by email.

Cash on delivery – You pay the amount according to the payment instructions directly to the driver of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day. It contains the account number you should specify when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you want to use one of the last two payment methods, please contact our manager. He will give you instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In case of a complaint, no return shipping fee will be charged.

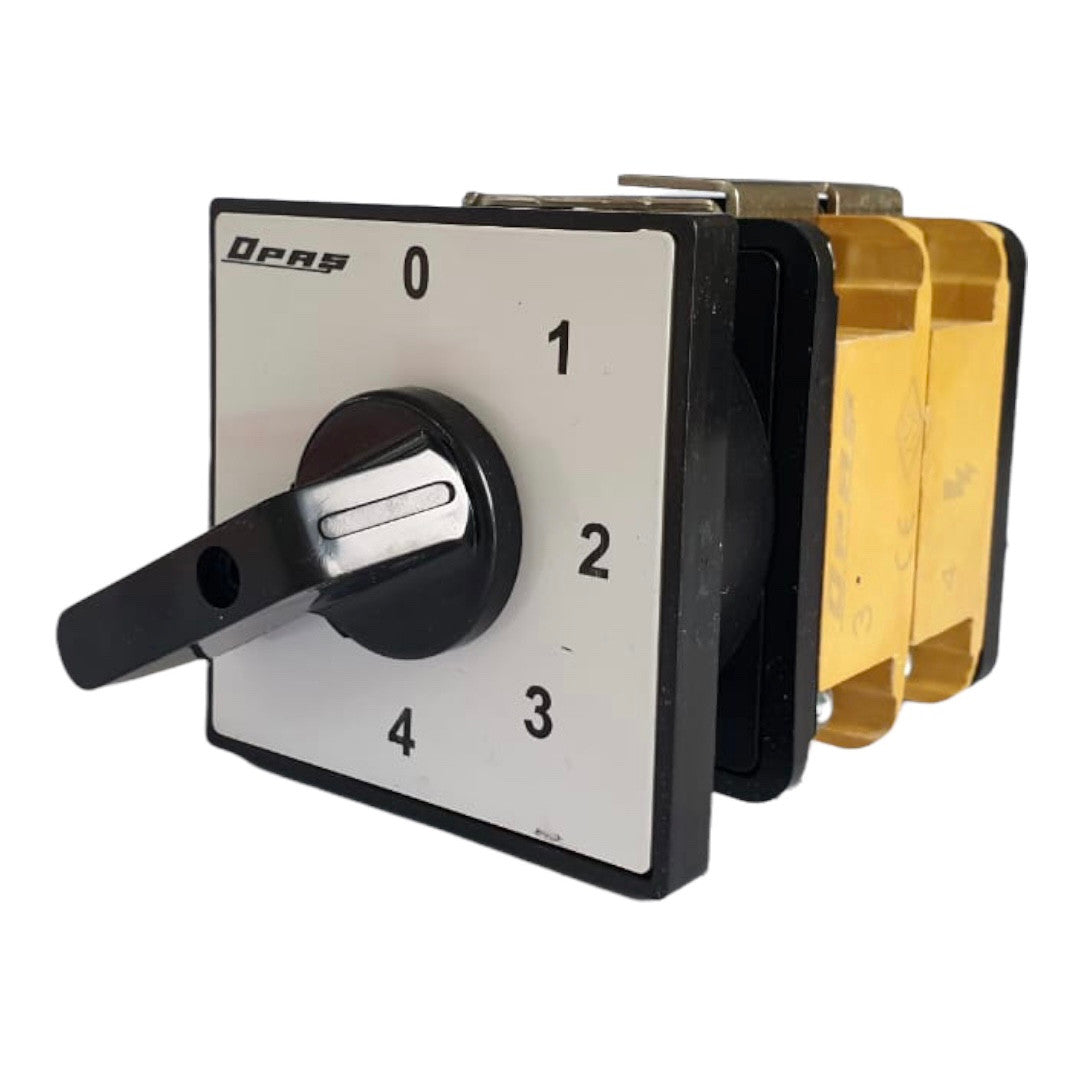

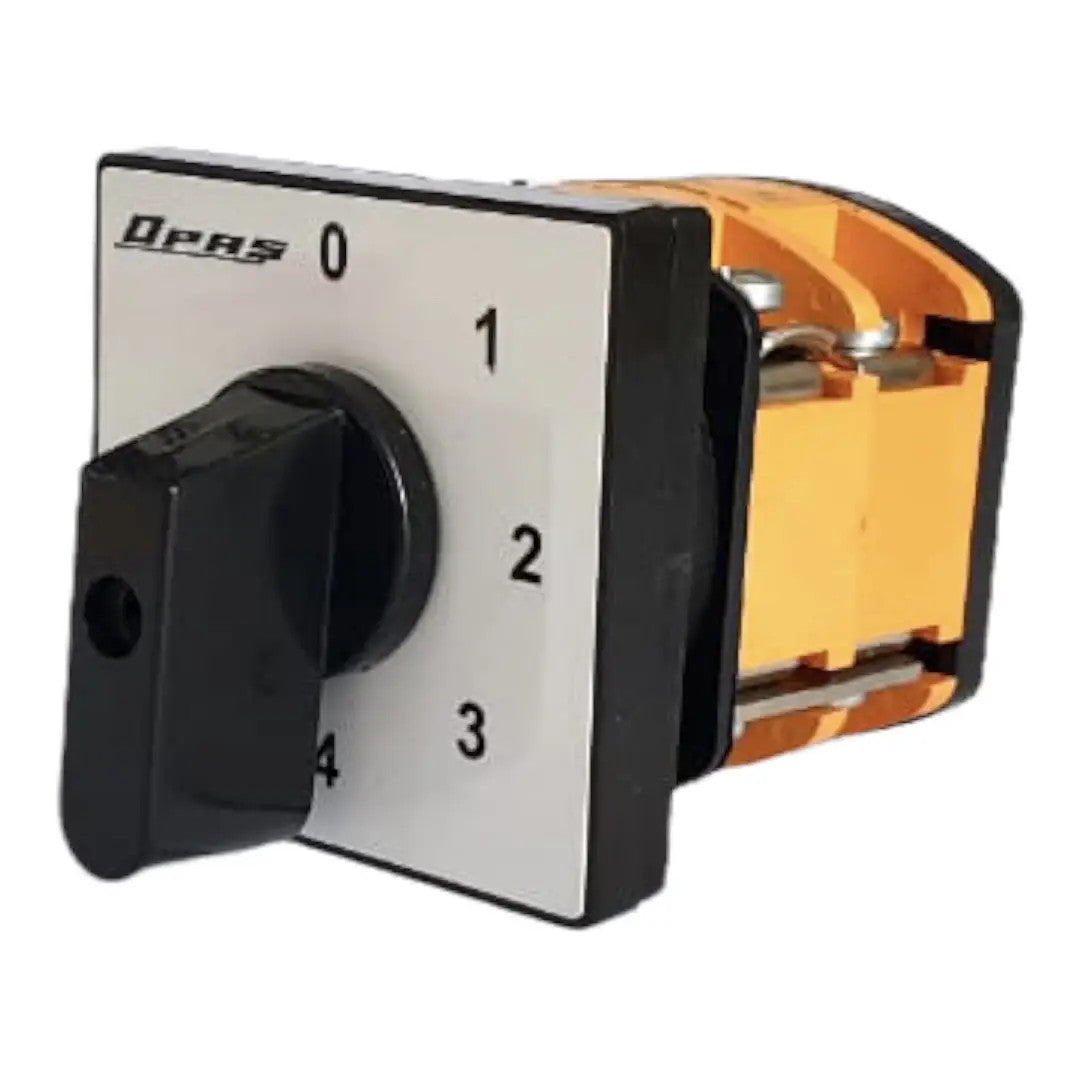

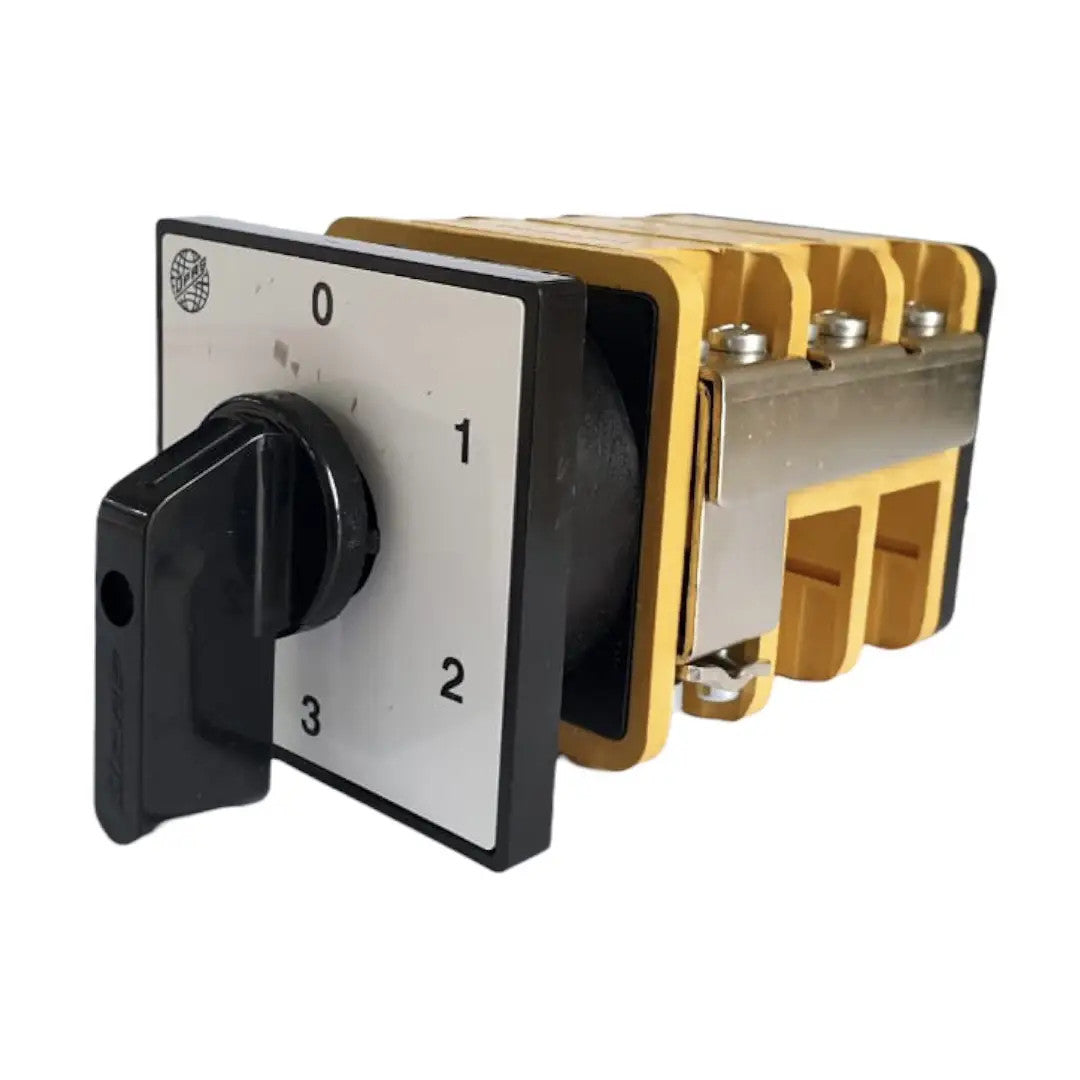

Step switch 0-1-2-3-4, rotary switch, 1-2 pole, 10-160A, YPT114, manufacturer OPAŞ (Turkey)

• 10A, 16A, 25A, 32A, 40A, 63A, 100A, 125A, 160A

The 0-1-2-3-4 step switch can be used, for example, to select one of the three phases and a generator to power single-phase electrical devices or to switch on one of the various devices/modes/process program steps, etc.

Package switches are designed for manually switching low-voltage circuits. They are used for creating main and control circuits, turning on and off electric motors and other low-power devices. The advantages of this series of switches are the compact dimensions, electrical and mechanical resistance, and high on/off capacity.

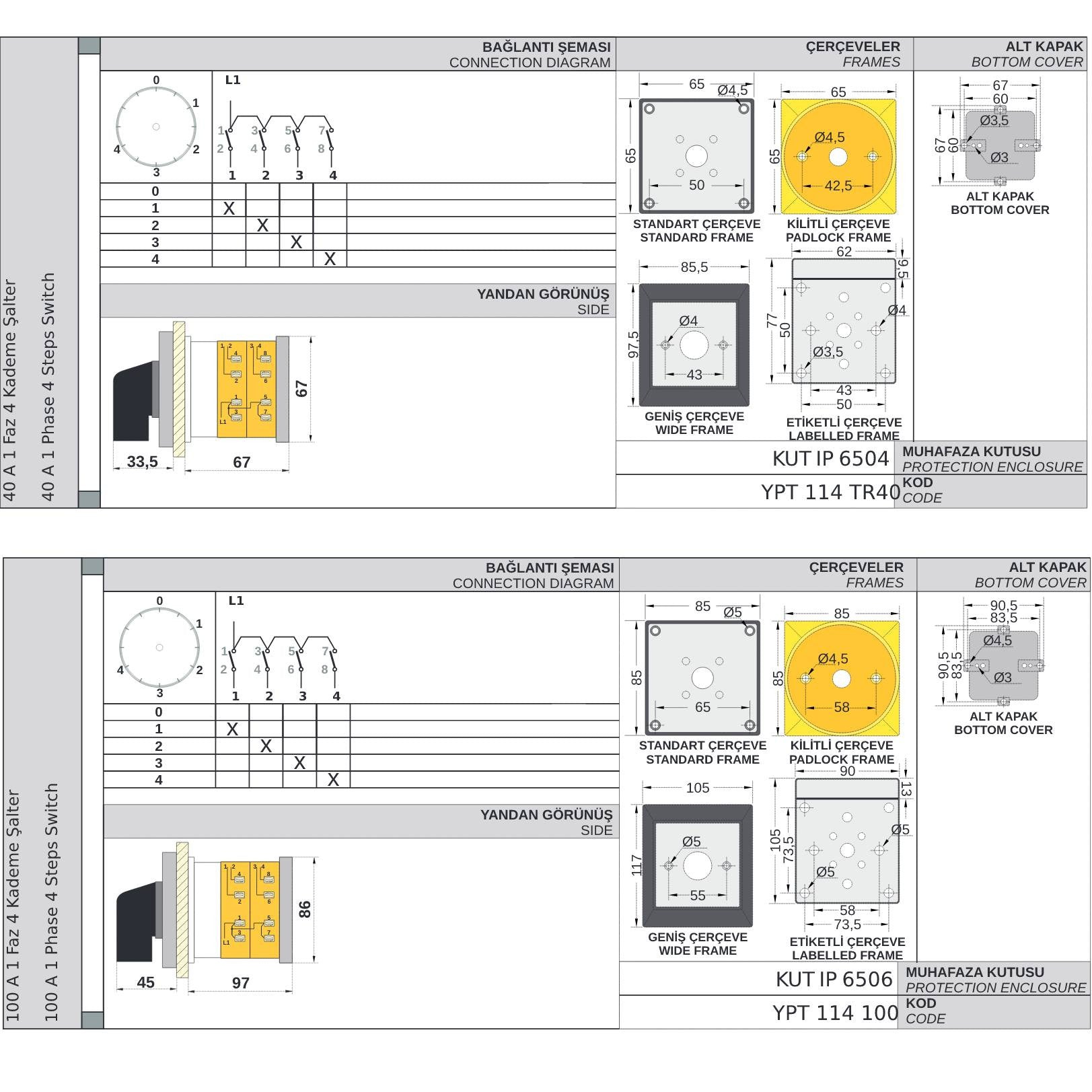

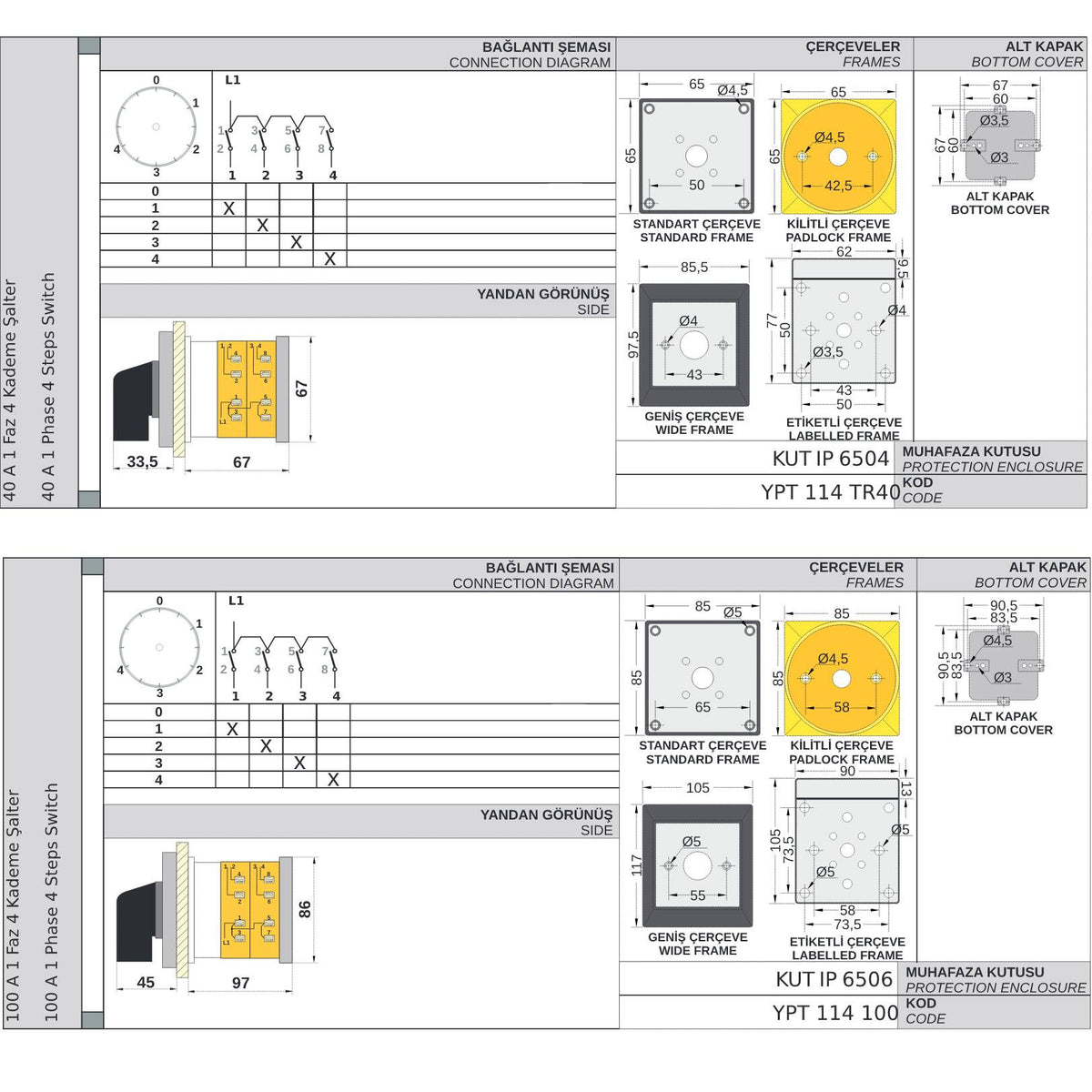

The multi-position diagram 0-1-2-3-4 is used for switching between different operating modes of the equipment (movement speed, heating temperature).

Technical specifications:

• Articulated version.
• Type of device: Rotary switch

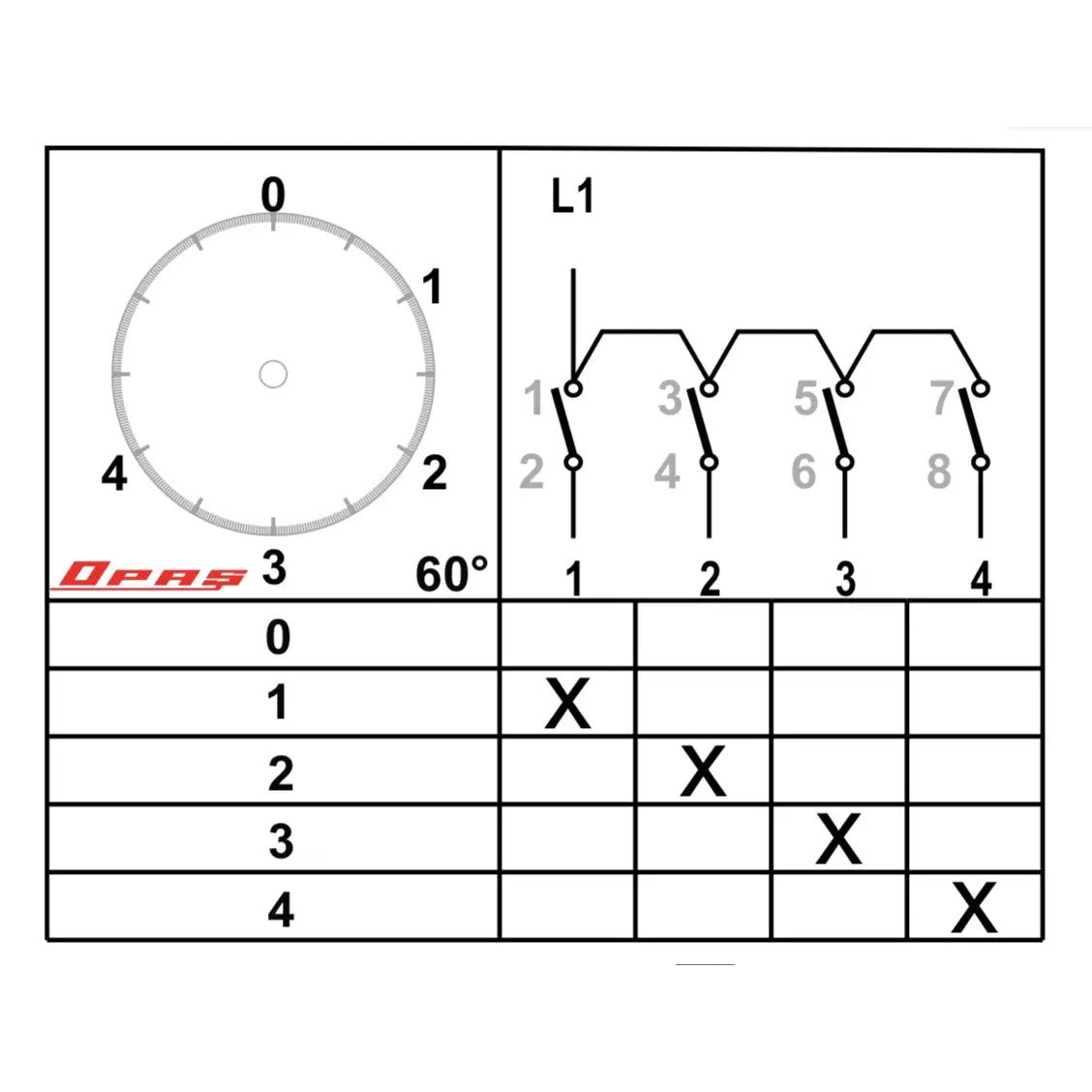

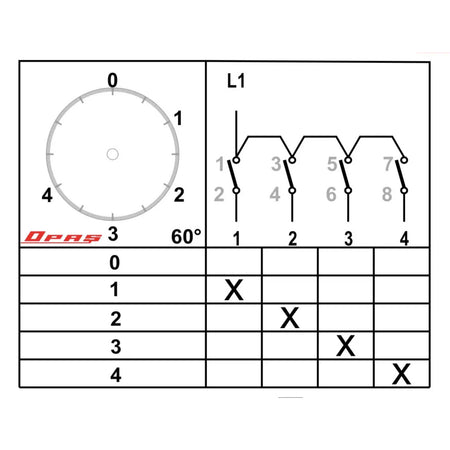

• Switching diagram: 0 - 1 - 2 - 3 - 4
• Number of poles: 1
• Type: Built-in
• Number of phases: one phase
• Protection: No
• Protection degree against dust and water: IP20
• Operating temperature range: -30 to +55°C
