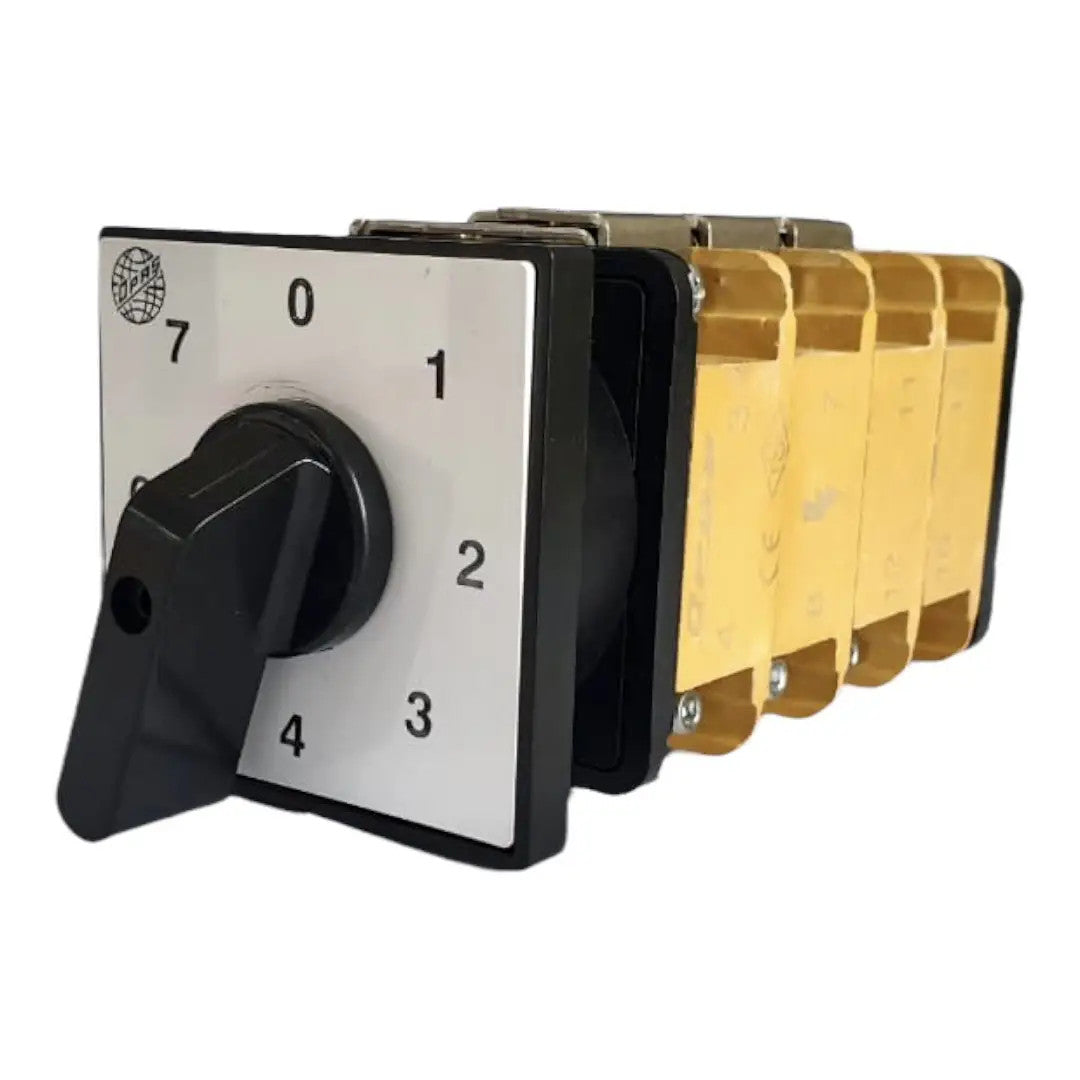

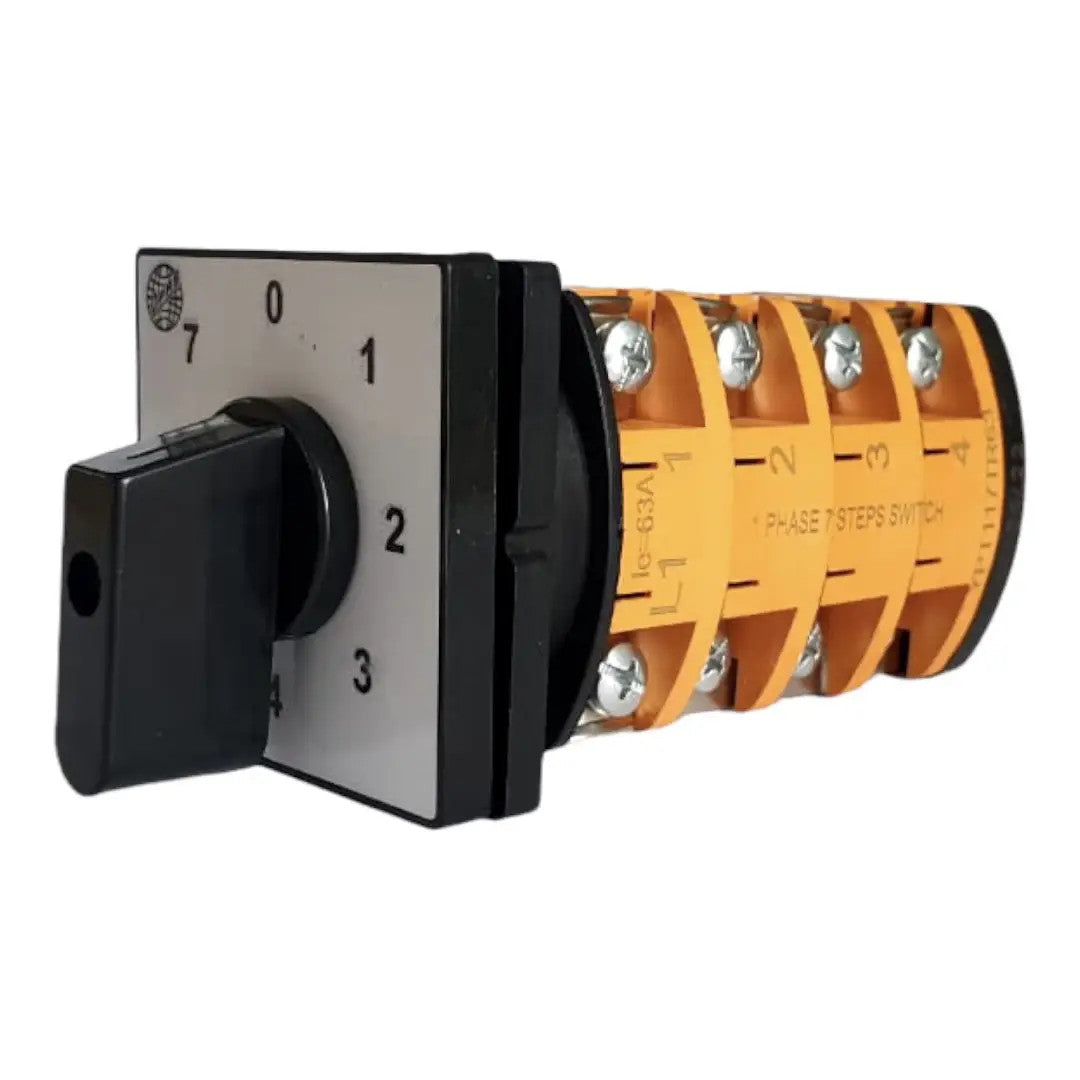

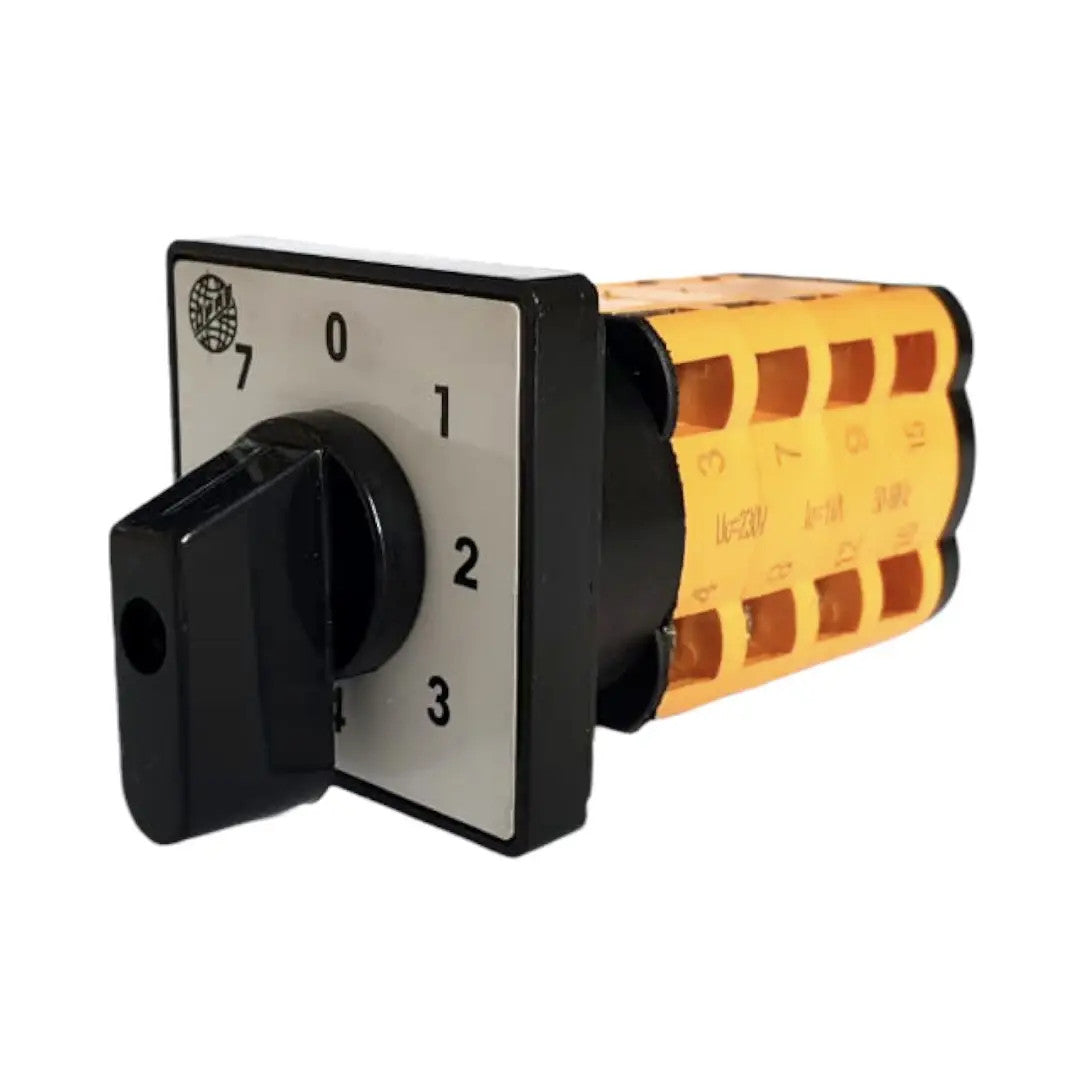

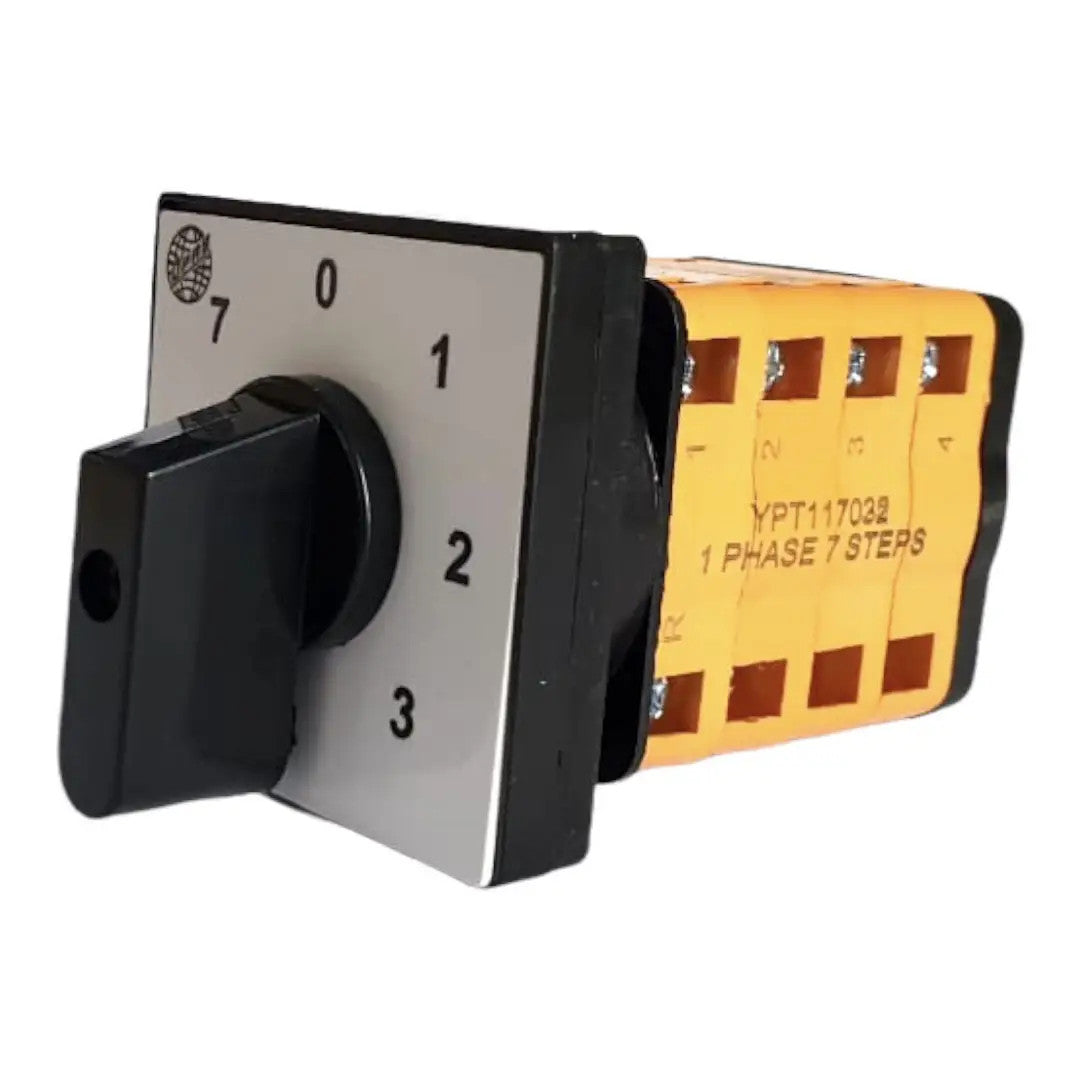

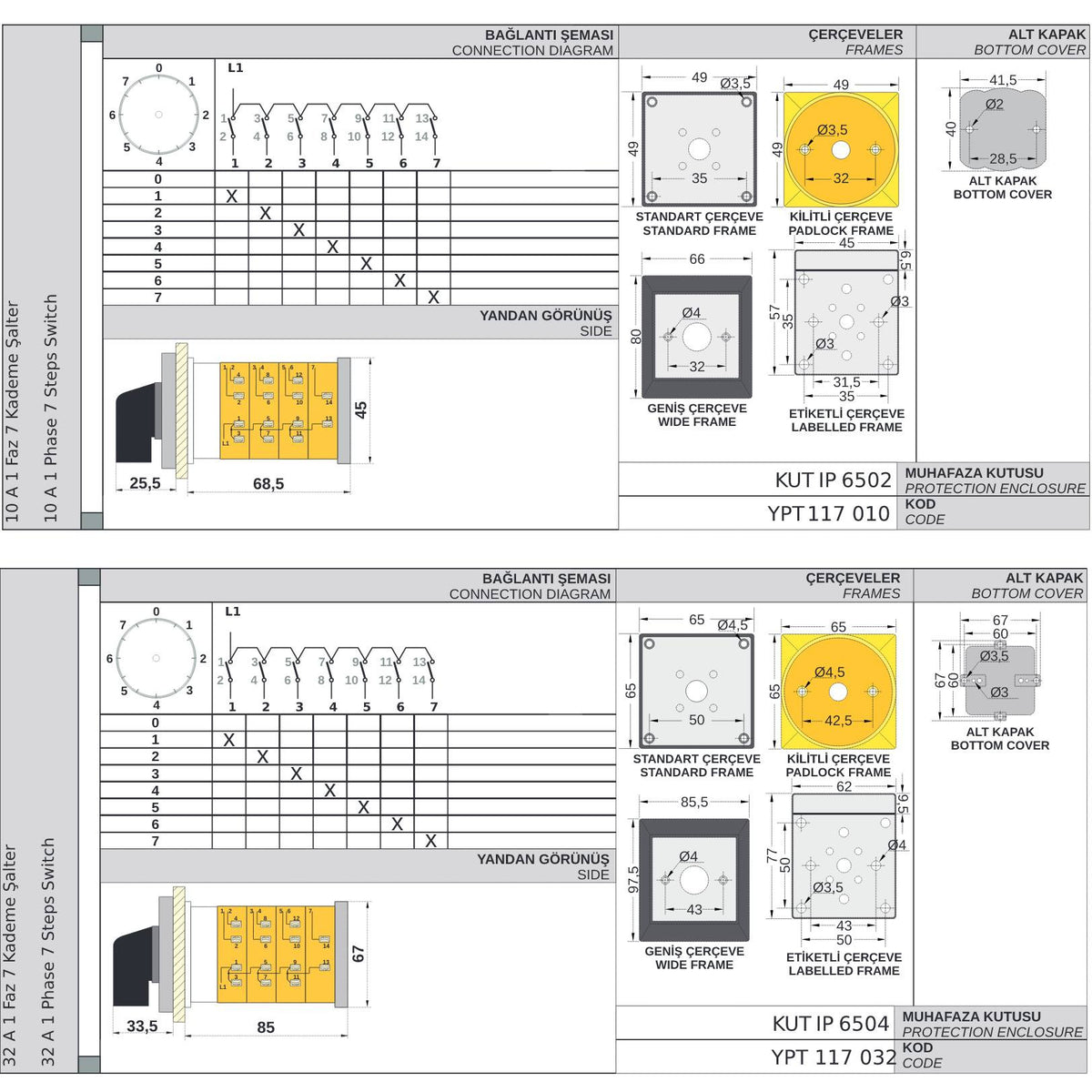

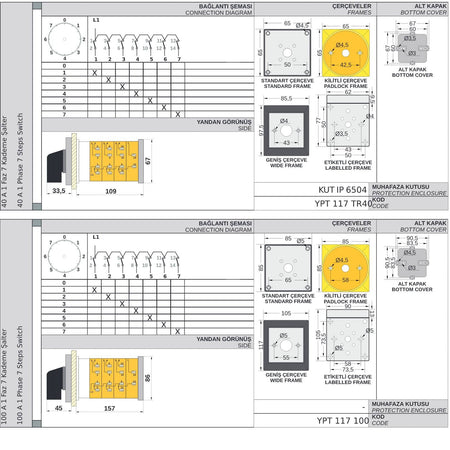

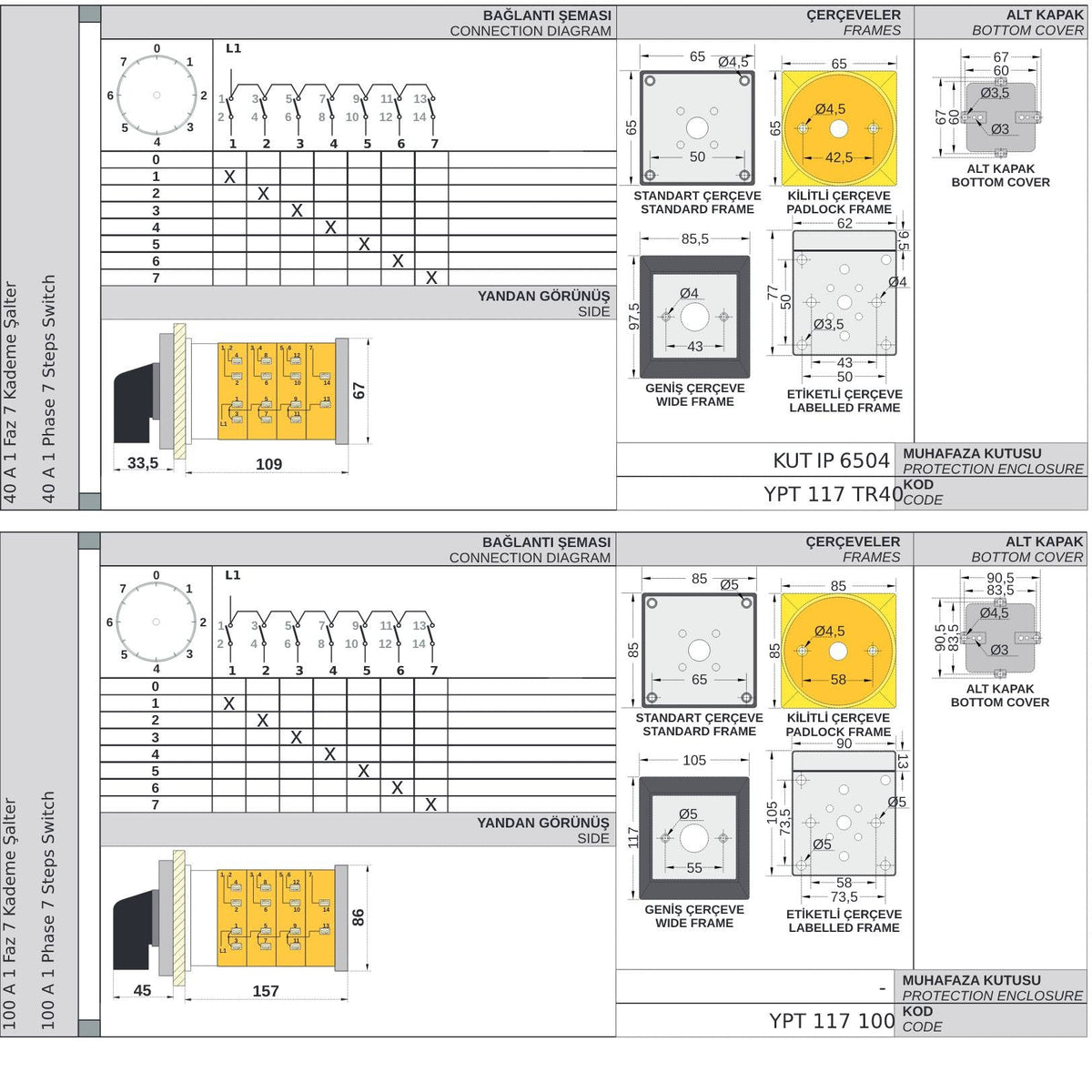

Step switch 0-1-2-3-4-5-6-7, rotary switch, 1-pole, 10-160A, YPT117 manufacturer OPAŞ (Turkey)

• 10A, 16A, 25A, 32A, 40A, 63A, 100A

The 0-1-2-3-4-5-6-7 step switch can be used, for example, to activate one of various devices / modes / processing program steps, etc.

Package switches are designed for manually switching low-voltage circuits. They are used for creating main and control circuits, turning on and off electric motors and other low-power devices. The advantages of this series of switches are the compact dimensions and electrical and mechanical resistance.

The multi-position scheme 0-1-2-3-4-5-6-7 is used for switching between different operating modes of the equipment (movement speed, heating temperature).

Technical specifications:

• Articulated version.
• Type of device: Rotary switch

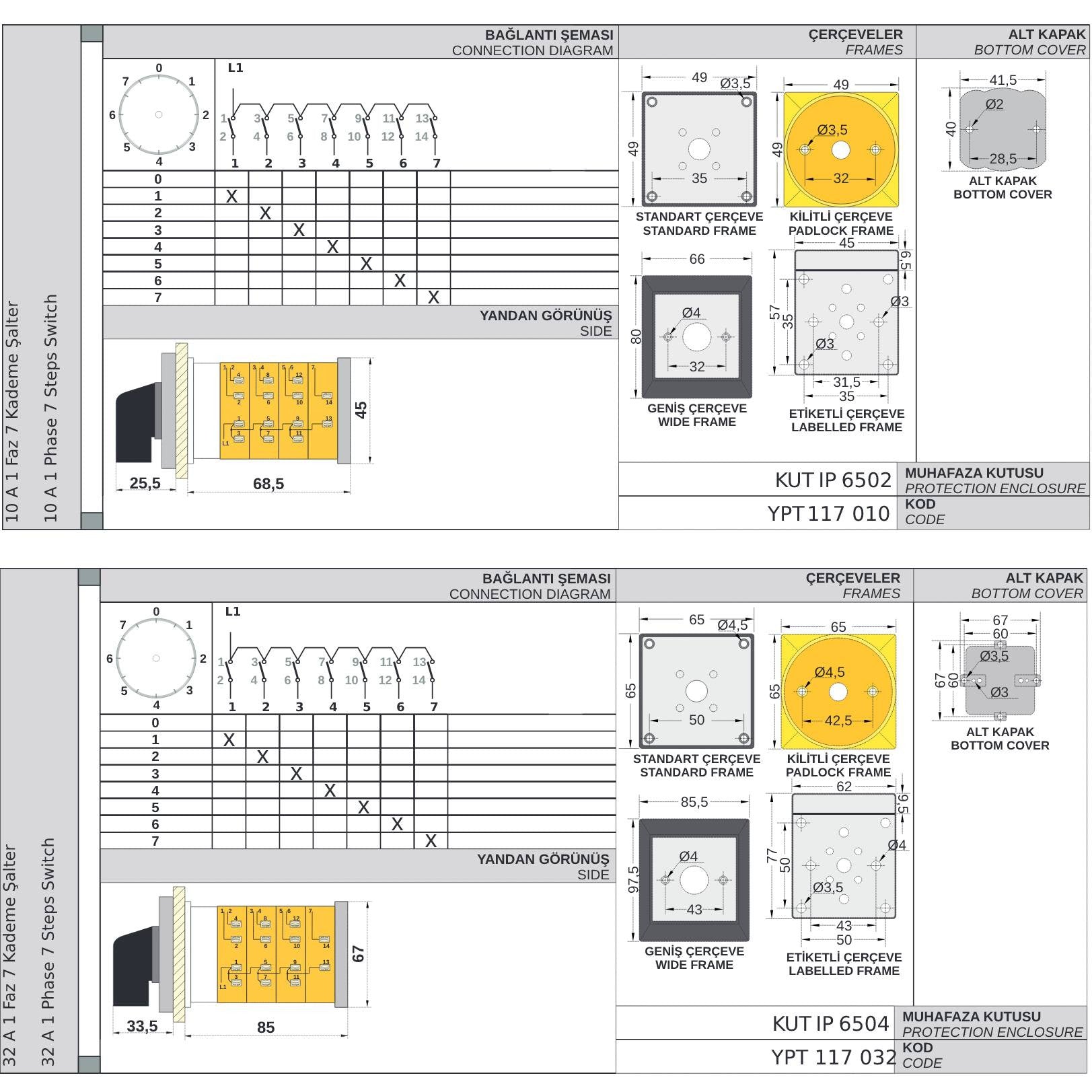

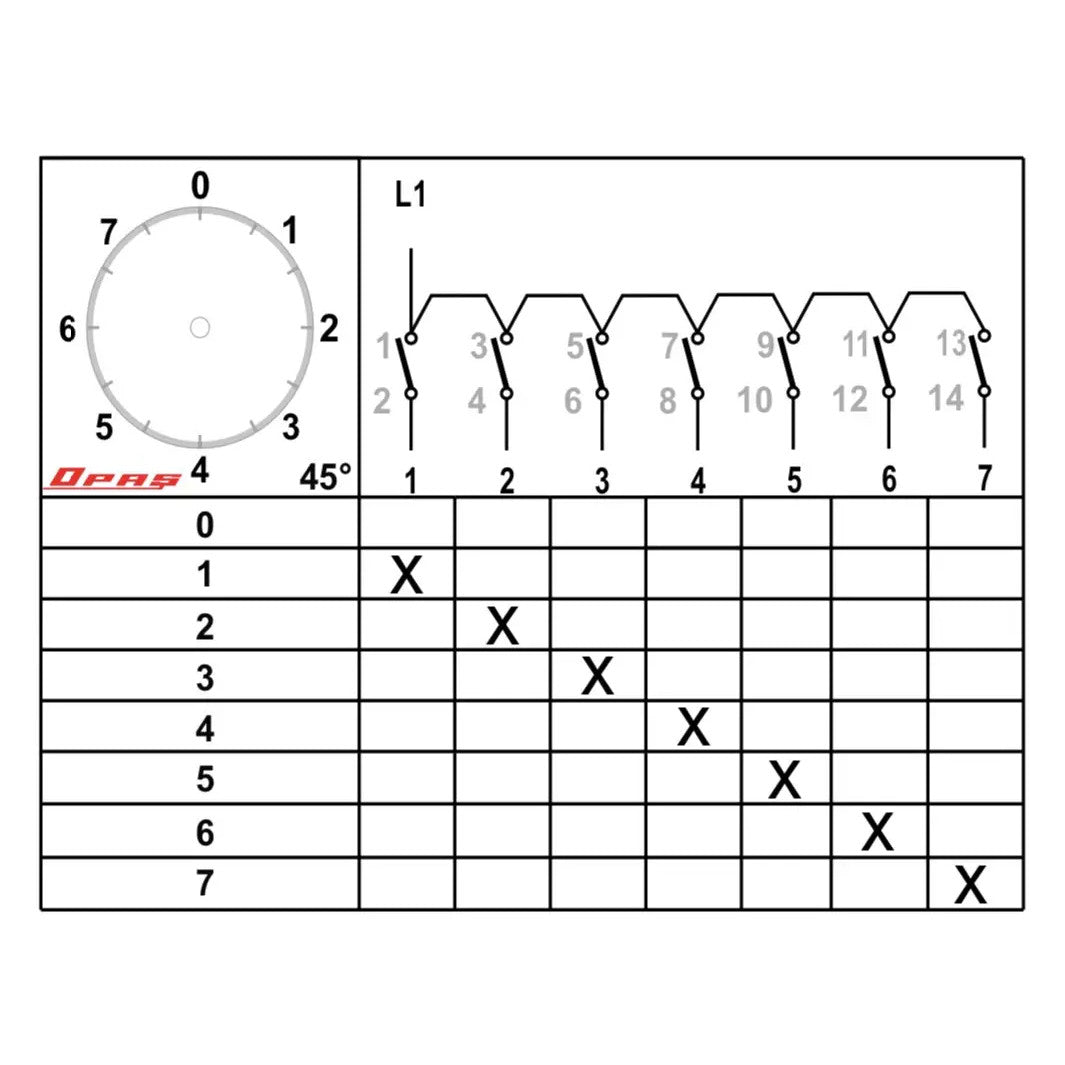

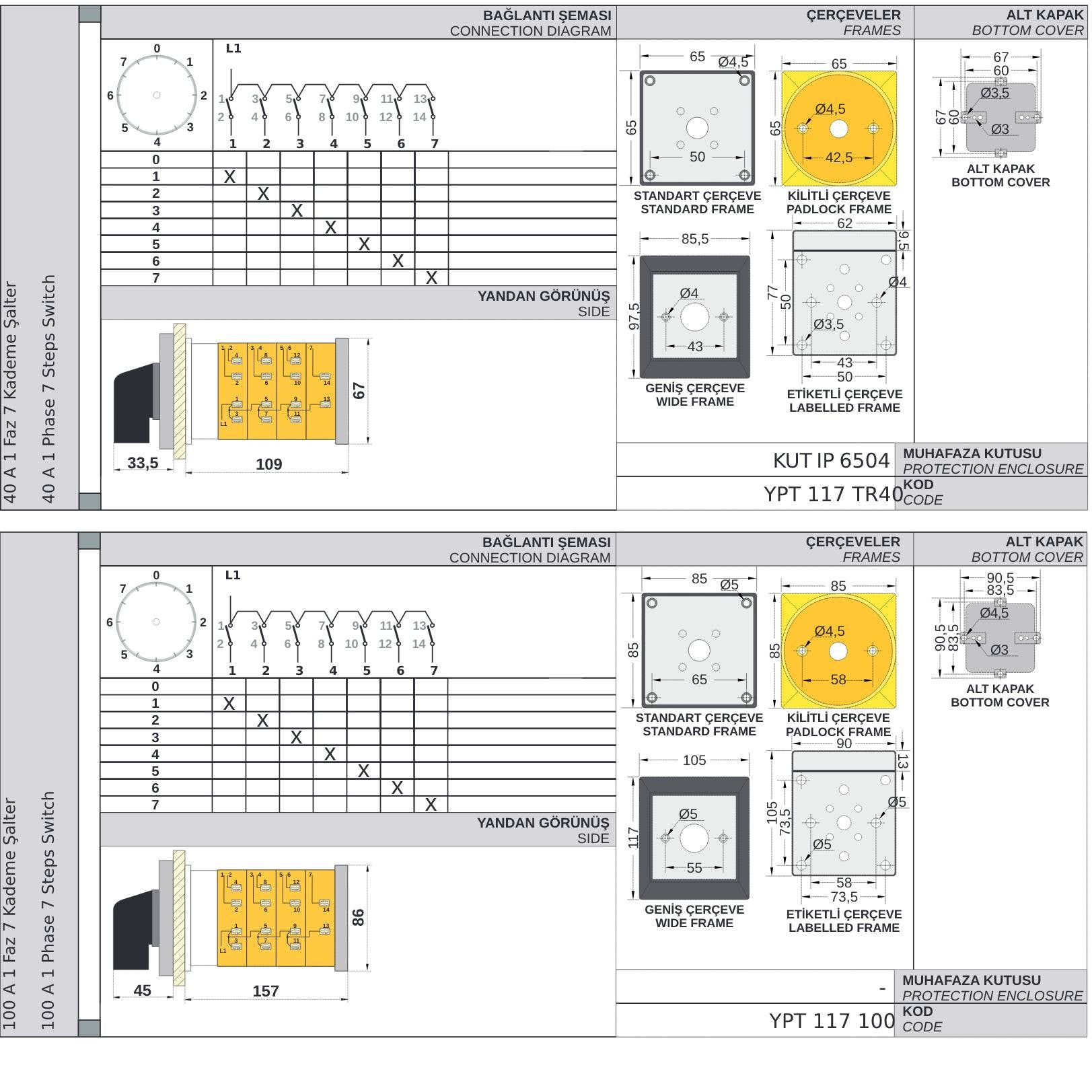

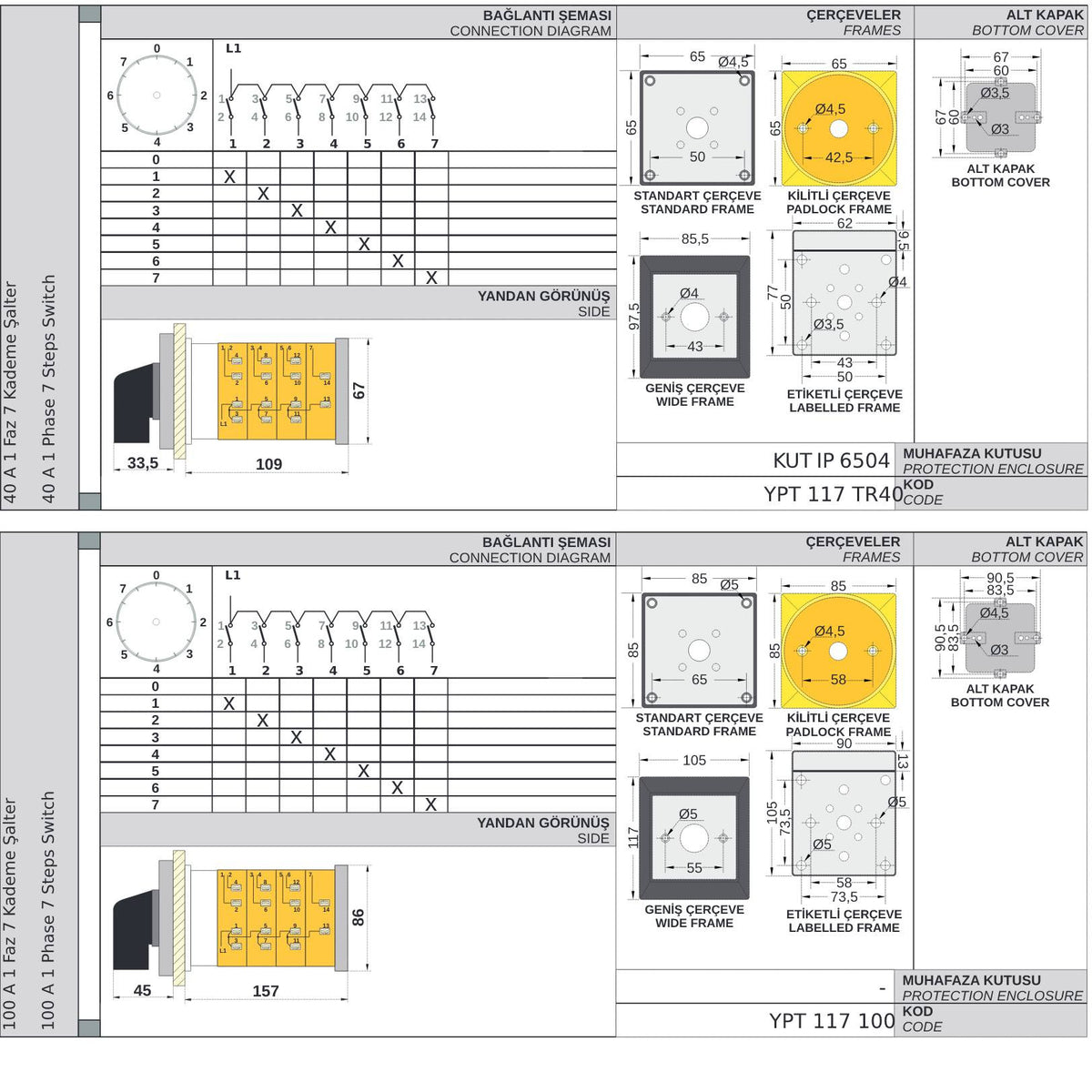

• Switching scheme: 0 - 1 - 2 - 3 - 4 - 5 - 6 - 7
• Number of poles: 1
• Type: Built-in
• Number of phases: one phase
• Protection: No
• Protection degree against dust and water: IP20
• Operating temperature range: -30 to +55°C
• Manufacturer.
• Country of manufacturer: Turkey
• Number of work positions: 8
