Temperature and humidity controller HT-310 TENSE

Product description

Relay for temperature and humidity control. The humidity and temperature controller has separate outputs, hysteresis setting, and is designed for flush mounting. Device dimensions: 72 × 36 × 100 mm.

This controller is suitable for controlling air conditioning, heating systems, dehumidification, heating, and other processes where temperature and humidity need to be measured and controlled.

Main features

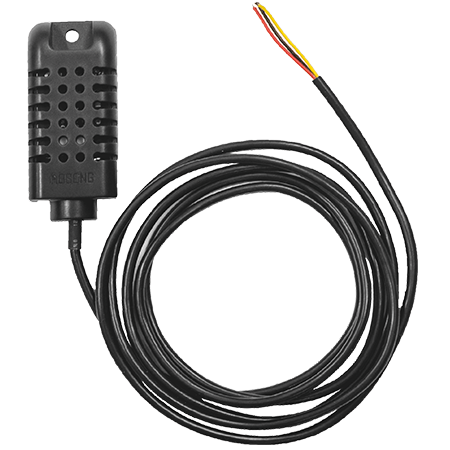

• Sensor type: NT-310 (common for temperature and humidity)

• Temperature measurement range: -19.9 °C ... +80.0 °C; step of 1 °C

• Humidity measurement range: 5% ... 95%; step 1

• Control principle: ON-OFF

• Outputs:

  • °C OUT: switching control contact, 2A resistive load for temperature

  • %RH OUT: break contact, 2A resistive load for humidity

• Operating modes:

  • Temperature: Cooling/Heating

  • Humidity: Dehumidification / Humidification

• Hysteresis: Separately adjustable for temperature and humidity

• ALARM: Choice between absolute, relative temperature or sensor error

• ON/OFF delay: for cooling mode (e.g., compressors)

• Fixed offset: adjustable for temperature or humidity when changing sensor wire length

• Password protection: protection of set parameters

• Memory: non-volatile EEPROM memory for storing settings

• Connection: easy disconnect/connect to the controlled device using quick connectors

• Power supply: 100-240 V, 50-60 Hz

Usage

The controller can be used as:

• Hygrostat / hygrometer / humidity meter / density meter (hygrometer)

• Thermostat / thermal relay

• Relay for measuring humidity level and air temperature

Safety warning

• Pay attention to polarity when connecting the temperature sensor; incorrect connections can lead to sensor damage or incorrect controller operation.

• When connecting the controller to the power supply, use a fuse of 250 mA / 250 V and cables with the correct cross-section.

• Observe electrical safety regulations.

• Use shielded twisted earth wire for signal contacts. Keep cables away from power cables, switches, and electromagnetic fields.

• Important: The device must be installed in an environment with a temperature of -20...+55 °C, otherwise the plastic housing may deform and the controller may become defective.
