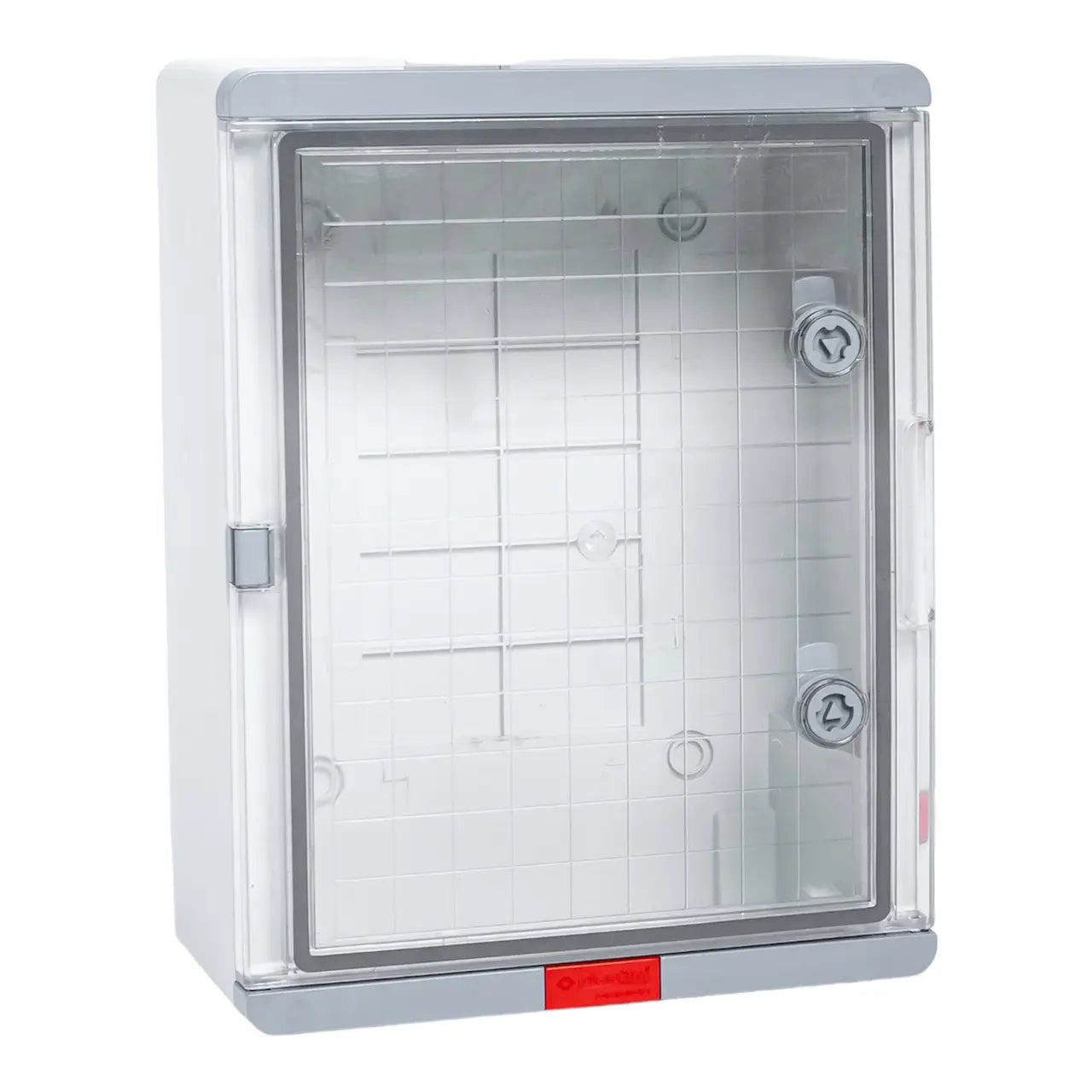

Plastic box IP 67, transparent door, 500x400x180 mm

Sealed plastic electrical panel IP67 with mounting panel Plastim (Turkey)

The IP67 shock-resistant panel from the Turkish manufacturer Plastim is a reliable solution for protecting electrical connections in harsh conditions - high humidity, dust, chemical environments, or outdoor installations. The durable plastic enclosure and high degree of sealing make it the ideal choice for industrial, construction, energy, and maritime infrastructure applications.

Advantages of the IP67 plastic sealed enclosure

Complete protection against dust and moisture (IP67)
The device is completely dust-tight and resistant to short-term immersion in water (1 m / 30 min). Suitable for car washes, outdoor installations, and wet or dusty environments.

Corrosion resistance
The plastic does not rust, which is especially valued for installations in marine environments, chemical plants, or areas with high humidity.

Easy to install and transport
The plastic housing is significantly lighter than metal alternatives, making it easier to install and handle in hard-to-reach places.

High dielectric properties
Plastic does not conduct electricity, which increases electrical safety and provides additional insulation.

UV resistance
The UV-stable ABS plastic housing retains its strength and colorfastness during prolonged outdoor use.

Technical parameters

• Material: ABS, UV-stable, halogen-free

• Protection: IP67

• Impact resistance (IK): IK08

• Nominal current: 800 A

• Nominal voltage: 690 V

• Dimensions (H × W × D): 500 × 400 × 180 mm

• Package dimensions: 504 × 404 × 184 mm

• Operating temperature: -35 to +65 °C

• RAL color code: 7035

• Net weight: 4.3 kg
