ONKA 6mm2 screw connection fuse connection block (fuse not included) gray, 1010241
- Regular price
- €3,00
- Regular price
-
- Sale price
- €3,00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty

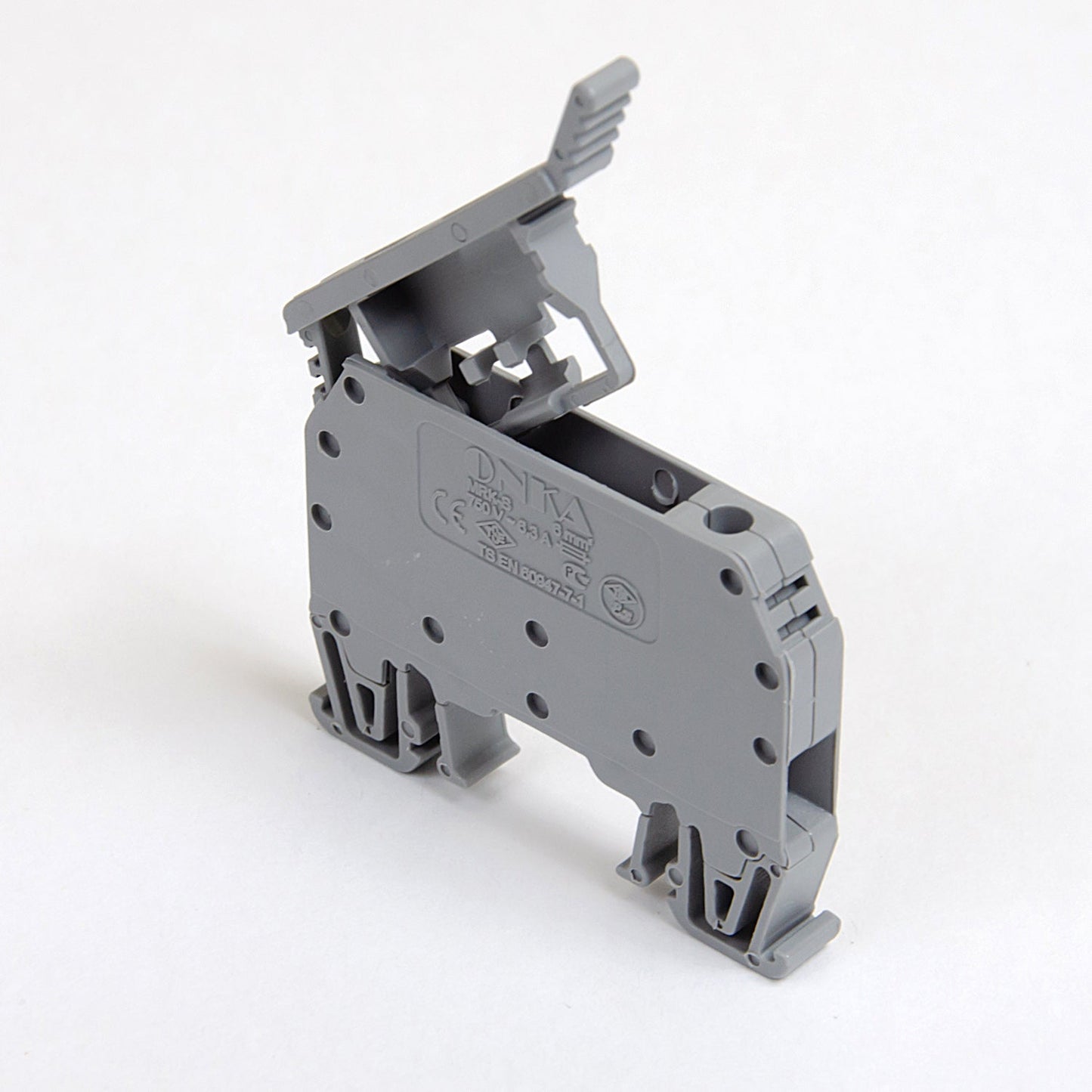

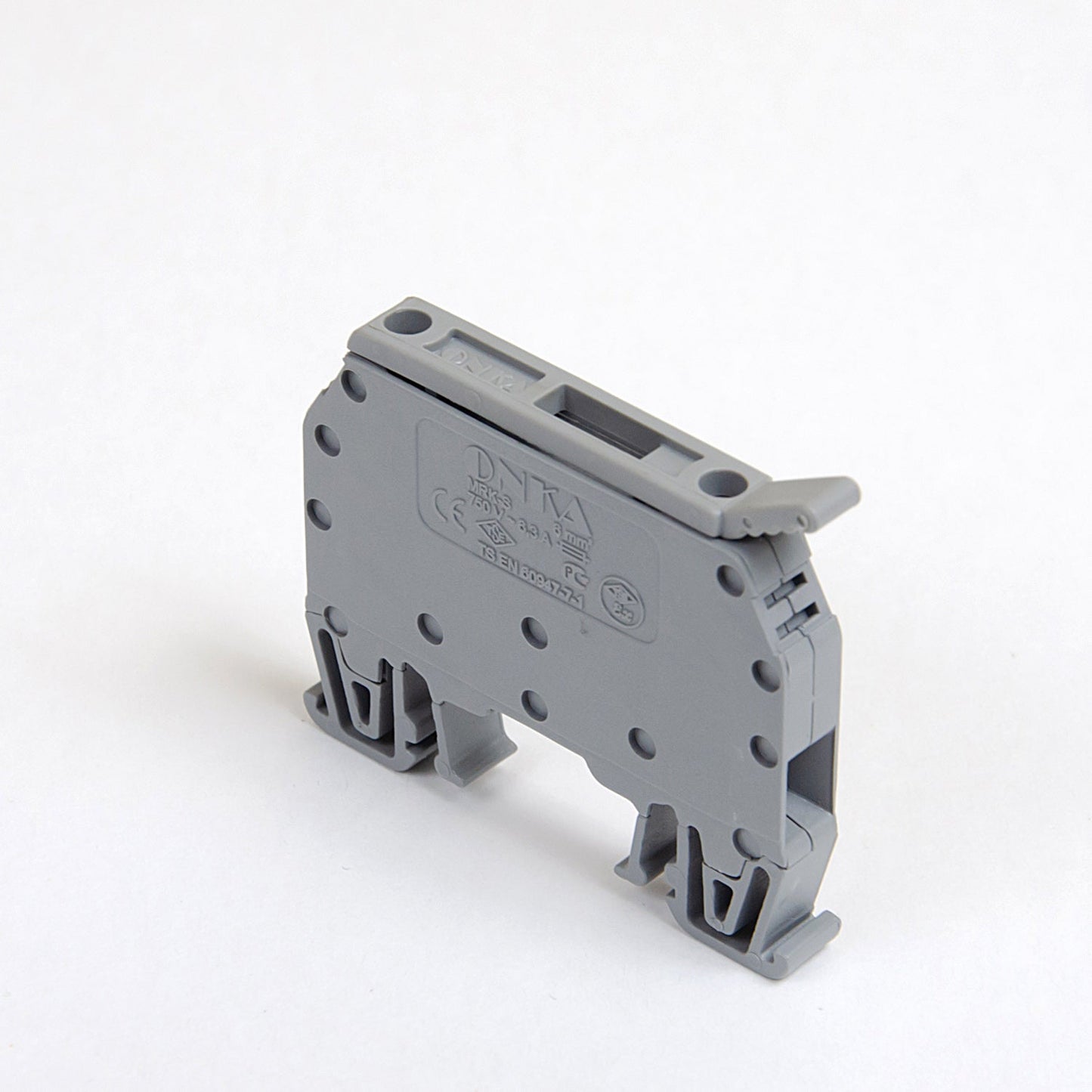

Screw connection fuse connection block (fuse not included) 2-wire, gray, ONKA, made in Turkey
Used to protect AC or DC circuits with low current. A 5x20 mm fuse is installed in the terminal with a current setting up to 6.3 A. The fuse is not included and must be ordered separately.
Technical parameters
Cross-section of the connected single wire up to: 6mm2
Color: gray
Insulation material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 0.8 Nm
Connection position: lateral
Cable strip length: 10 mm
Type of electrical connection: screw terminal
Nominal voltage: 750V
Nominal current: 6.3A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
