ONKA 4mm2, 2 wire screw rail terminal block DIN rail 4 wire gray, 1010368

Online payment by card – After completing the order, you will be redirected to the payment portal. You will receive a payment confirmation by email.

Cash on delivery – You pay the amount according to the payment instructions directly to the driver of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day. It contains the account number you should specify when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you want to use one of the last two payment methods, please contact our manager. He will give you instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In case of a complaint, no return shipping fee will be charged.

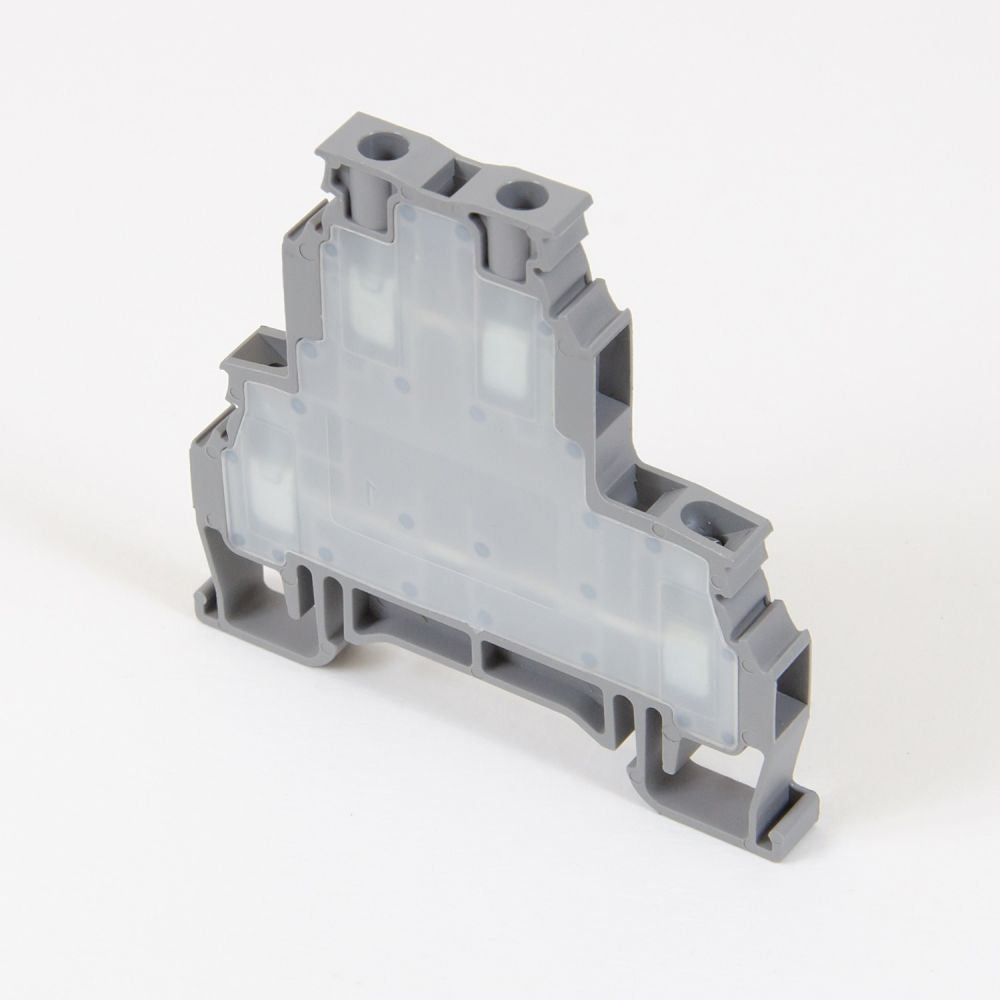

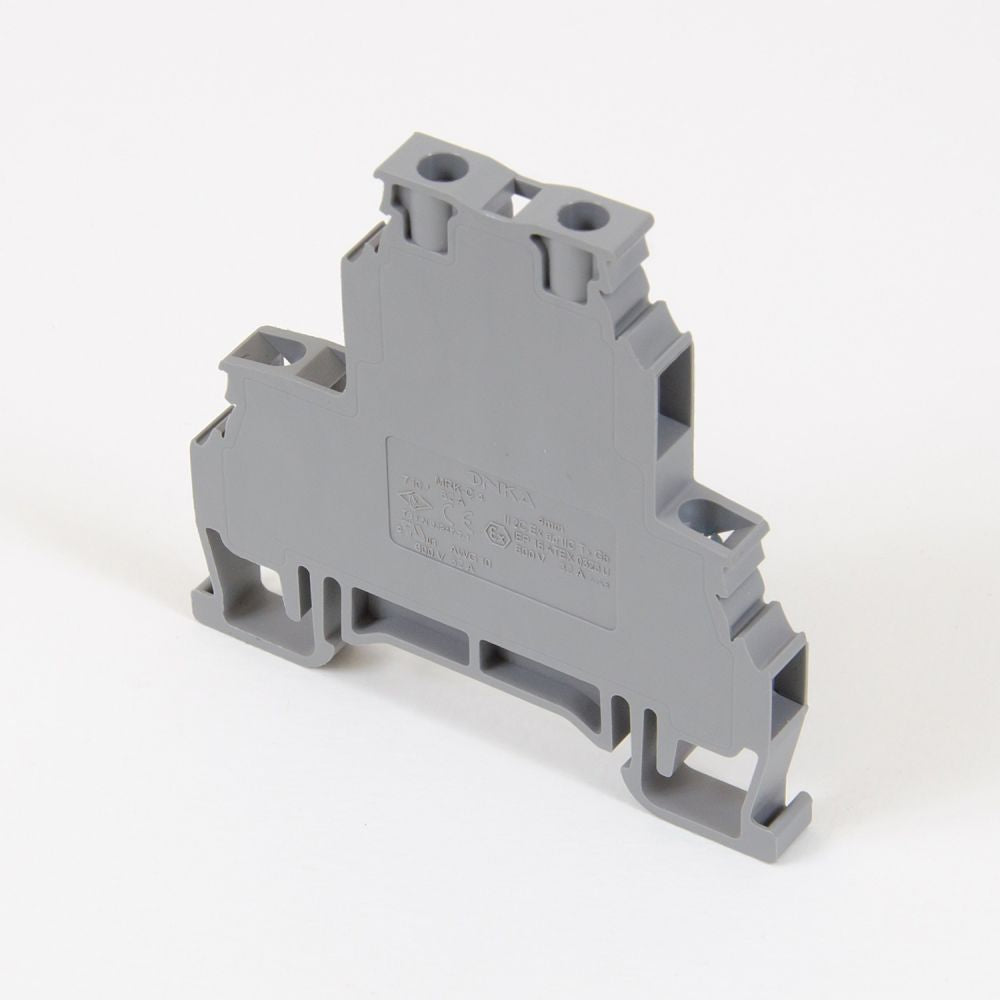

2-pair rail connection with thread / DIN rail clamp 4-wire gray, ONKA, made in Turkey

The compact installation rail couplings from ONKA offer great possibilities for connecting any wire with different cross-sections. The transparent housing makes it easy to check the correct placement of the wires. The original ONKA quick couplings are convenient for installation and 100% reliable when connecting.

Technical parameters

Cross-section of the connected single wire up to: 4mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Material contact/bridge: CK45 steel/copper
Torque: 0.5 Nm
Connection position: lateral
Cable strip length: 10 mm
Type of electrical connection: screw terminal
Nominal voltage: 750V
Nominal current: 32A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
