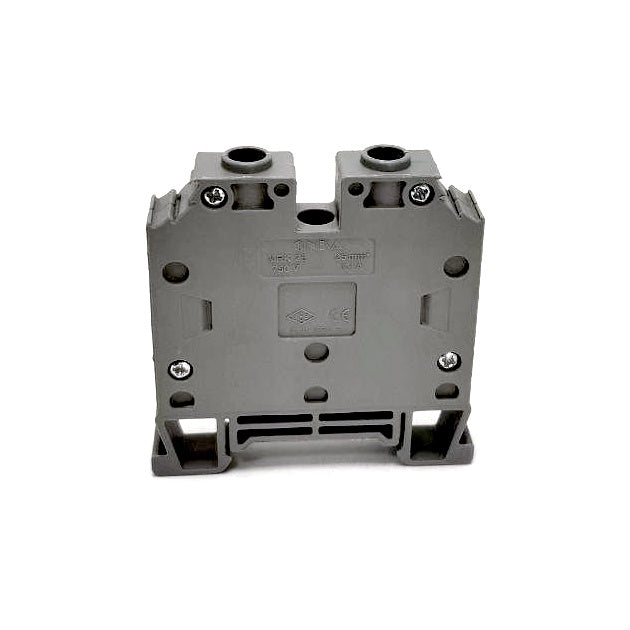

ONKA 25mm2 Screw rail connection block DIN rail clamp 2-wire gray, 1010062

Barcode: 1010062

Regular price: €2,08
Regular price
Sale price: €2,08
Unit price: per

96 in stock

Product variants

Description
Payment methods
Warranty

Rail-rail coupling with thread / DIN rail clamp 2-wire gray, ONKA, made in Turkey

The compact installation rail couplings from ONKA offer great possibilities for connecting any wire with different cross-sections. The transparent housing makes it easy to check the correct placement of the wires. The original ONKA quick couplings are convenient for installation and 100% reliable when connecting.

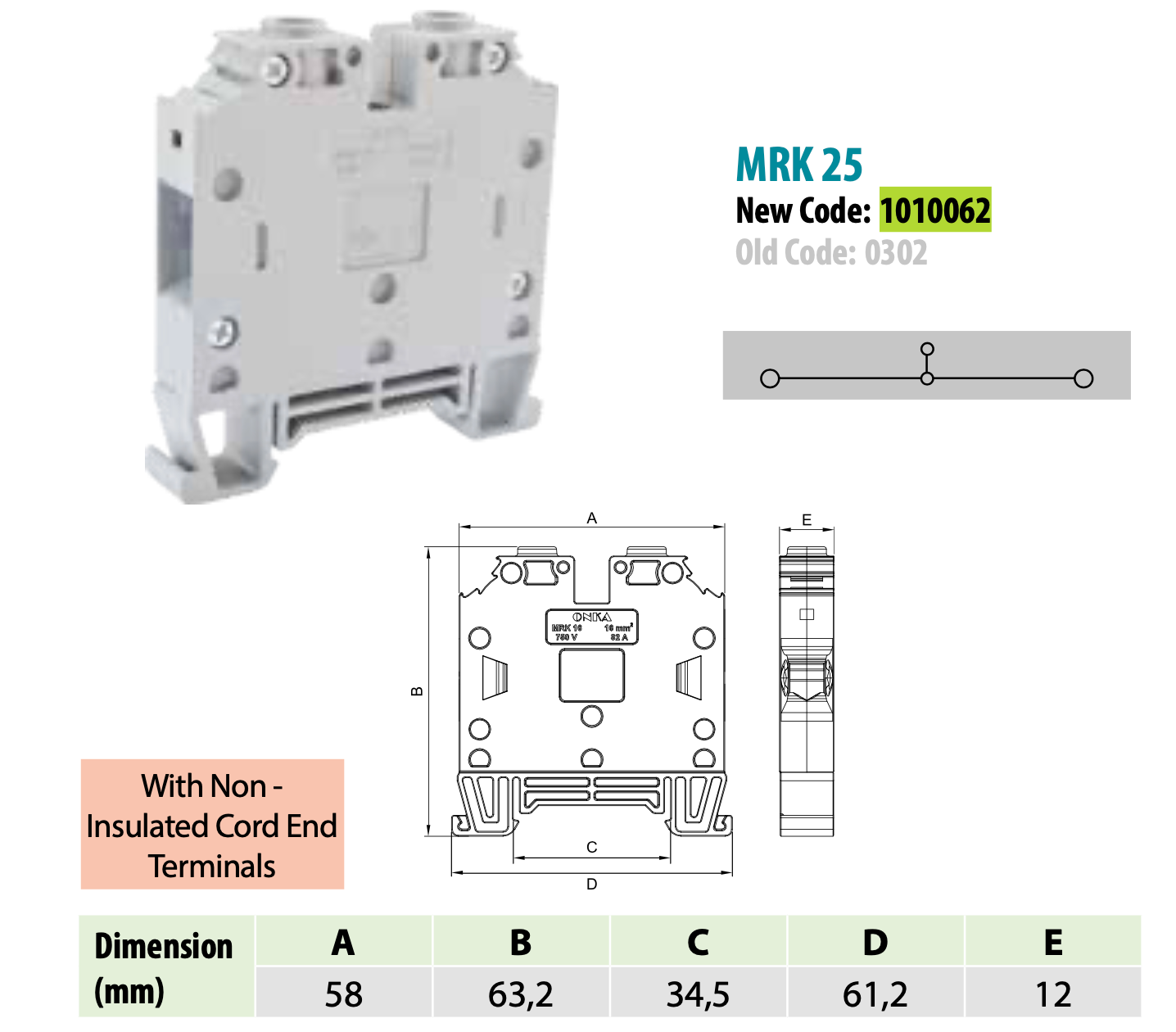

Technical parameters

Cross-section of the connected single wire up to: 25mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Material contact/bridge: CK45 steel/copper
Torque: 2.0 Nm
Connection position: lateral
Cable strip length: 18 mm
Type of electrical connection: screw terminal
Nominal voltage: 750V
Nominal current: 101A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
