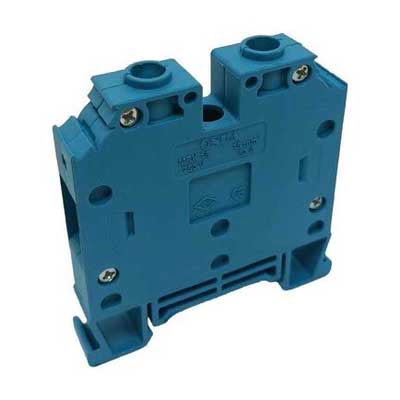

Rail socket with thread / DIN rail clamp 2-wire blue, ONKA, made in Turkey

The ONKA connector / terminal block is a reliable solution for anyone looking for functional and durable elements in electrical installations.
The connector is made of high-quality materials and guarantees long-term use and resistance to mechanical damage.

Technical parameters

Cross-section of the connected single wire up to: 25mm2
Color: blue
Insulating material of the main housing: polyamide (PA6.6)
Material contact/bridge: CK45 steel/copper
Torque: 2.0 Nm
Connection position: lateral
Cable strip length: 18 mm
Type of electrical connection: screw terminal
Nominal voltage: 750V
Nominal current: 101A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
