ONKA 2.5mm2 screw connection fuse connection block (fuse not included) gray, 1020223

Online payment by card – After completing the order, you will be redirected to the payment portal. You will receive a payment confirmation by email.

Cash on delivery – You pay the amount according to the payment instructions directly to the driver of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day. It contains the account number you should specify when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you want to use one of the last two payment methods, please contact our manager. He will give you instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In case of a complaint, no return shipping fee will be charged.

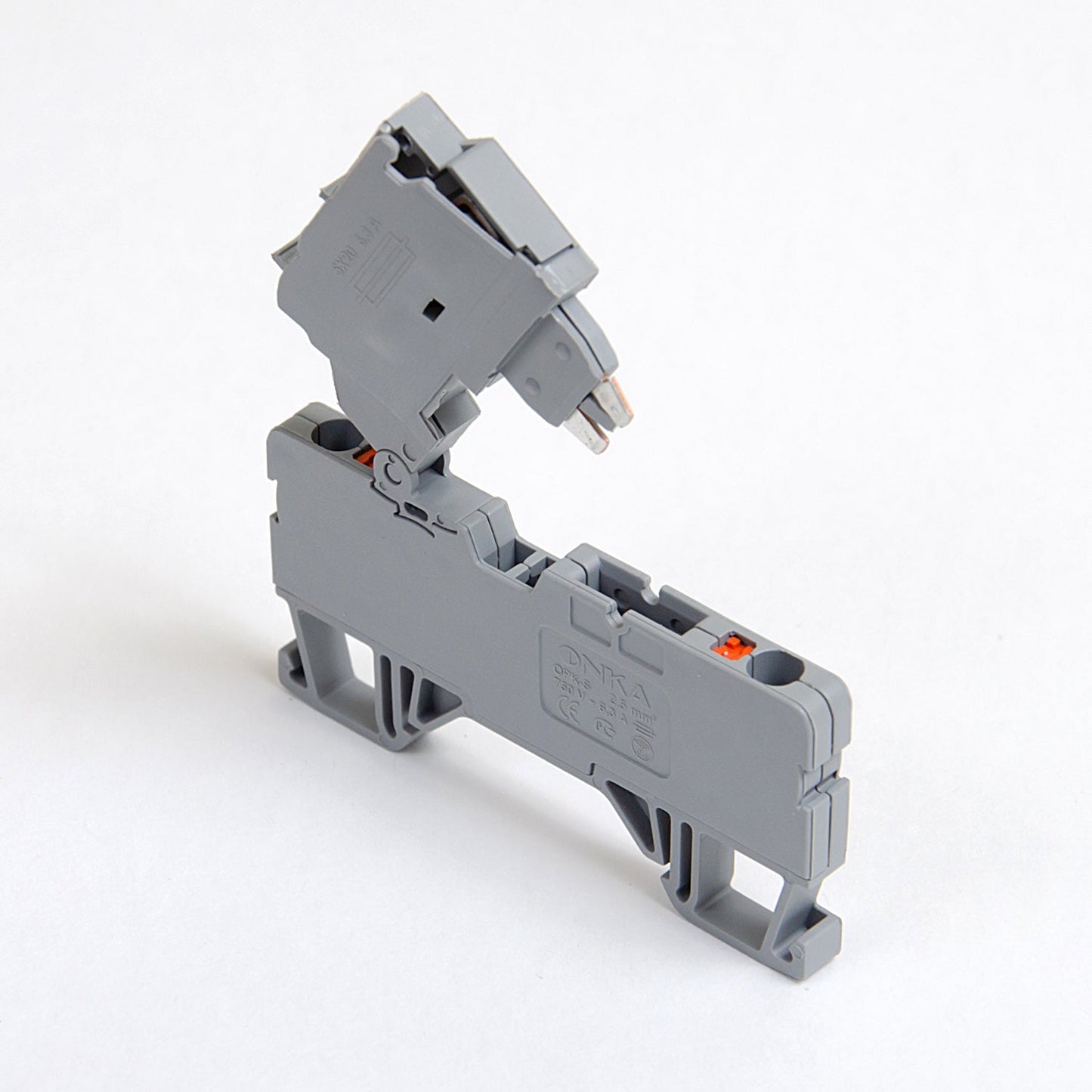

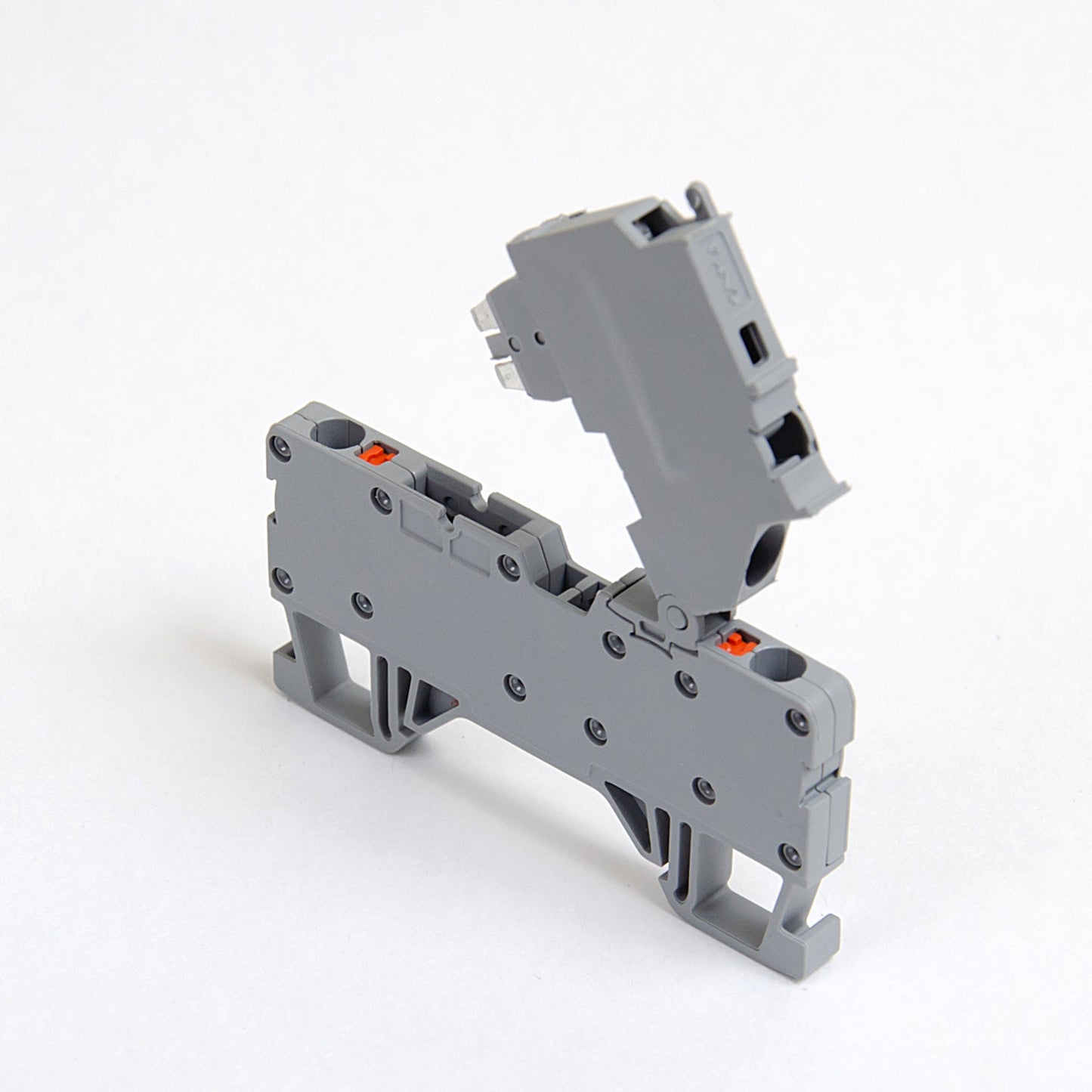

Terminal block for fuse connection (fuse not included) 2-wire, gray, ONKA, made in Turkey

Used to protect AC or DC circuits with low current. A 5x20 mm fuse is installed in the terminal with a current rating of up to 6.3 A. The fuse is not included and must be ordered separately.

Technical parameters

Cross-section of the connected single wire up to: 2.5 mm2
Color: gray
Insulation material of the main housing: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top/top
Cable strip length: 9mm
Type of electrical connection: screw terminal
Nominal voltage: 750V
Nominal current: 6.3A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
