ONKA 16mm2 PE Screw Rail Clamp Block DIN Rail Clamp 2-Wire Gray, 1010223
- Regular price
- €7,92
- Regular price
-
- Sale price
- €7,92
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
PE rail coupling with thread / DIN rail clamp 2-wire green-yellow, ONKA, made in Turkey
The compact installation rail couplings from ONKA offer great possibilities for connecting any wire with different cross-sections. The transparent housing makes it easy to check the correct placement of the wires. The original ONKA quick couplings are a convenience during installation and 100% reliable when connecting.

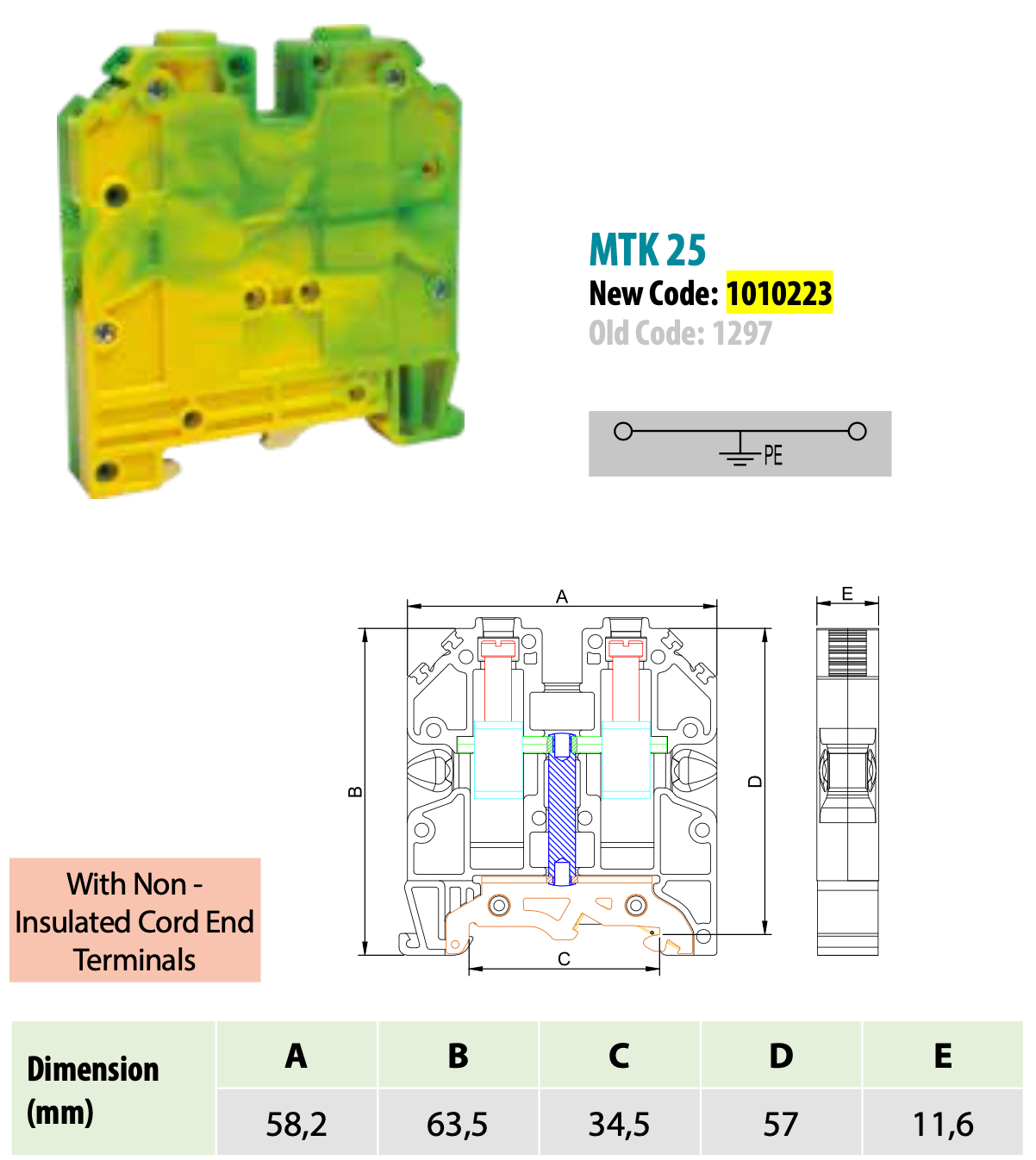

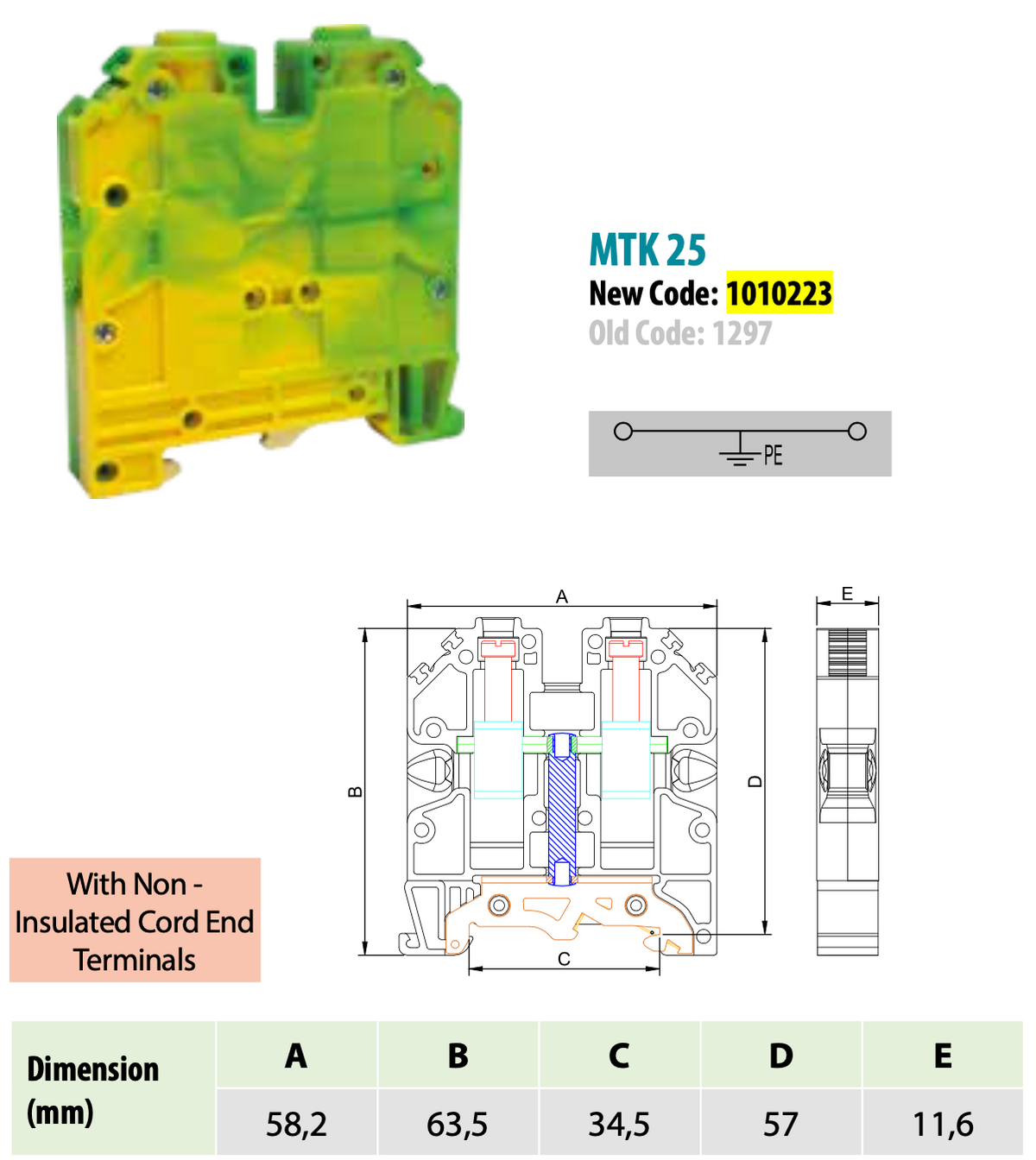

Technical parameters
Cross-section of the connected single wire up to: 25mm2
Color: Green-yellow (camouflage)
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 1.2 Nm
Connection position: lateral
Cable strip length: 16 mm
Type of electrical connection: screw terminal
Nominal voltage: 750V
Operating temperature range: -40°C... 140°C
Mounting method: mounting rail DIN 35 mm
Standard: EN-60947-7-1
