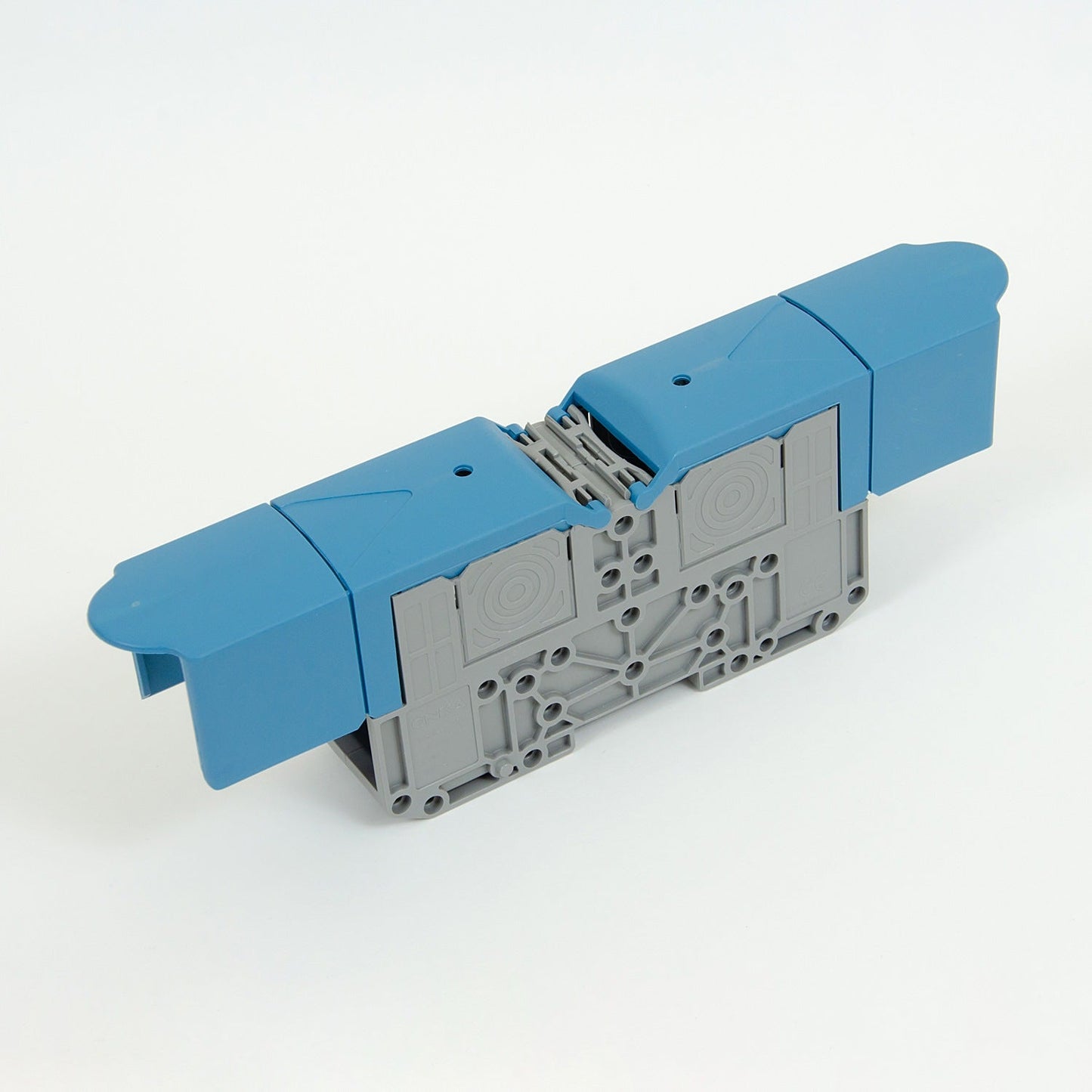

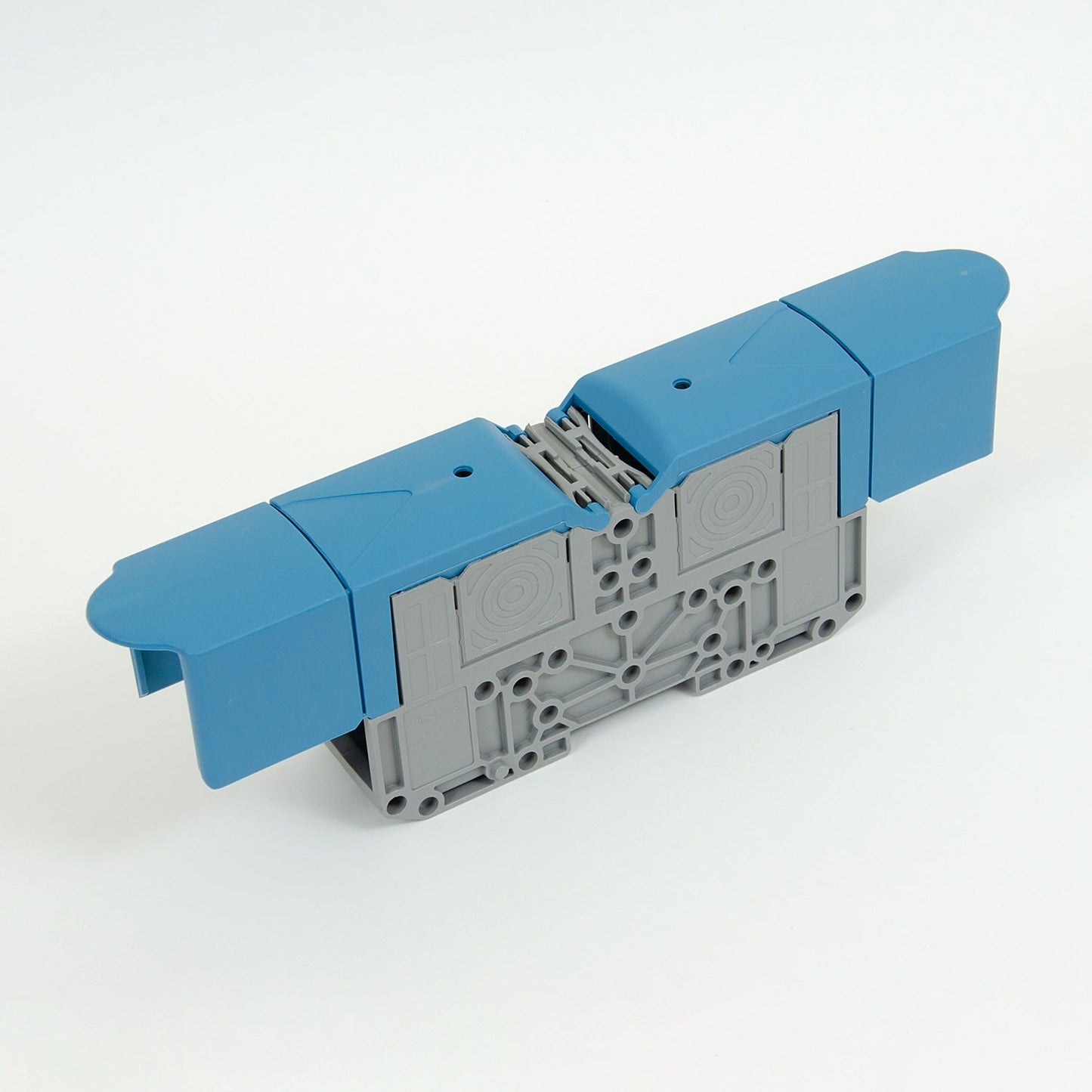

ONKA 150mm2 M12 screw rail connector terminal block DIN rail with protective cover, blue, 1030091

Barcode: 1030091

Regular price: €34,32
Regular price
Sale price: €34,32
Unit price: per

20 in stock

Product variants

Description
Payment methods
Warranty

M12, 150mm2, rail connection with thread / DIN rail clamp with protective cover, blue, ONKA, made in Turkey

The compact installation rail connectors from ONKA offer great possibilities for connecting wires of different cross-sections. The transparent housing makes it easy to check the correct placement of the wires. The original ONKA quick couplings are convenient for installation and 100% reliable for connections.

Technical parameters

Cross-section of the connected single wire up to: 150mm2
Color: blue
Insulating material of the main housing: polyamide (PA6.6)
Material contact/bridge: CK45 steel/copper
Connection position: side / lateral
Nominal voltage: 1000V
Nominal current: 309A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
