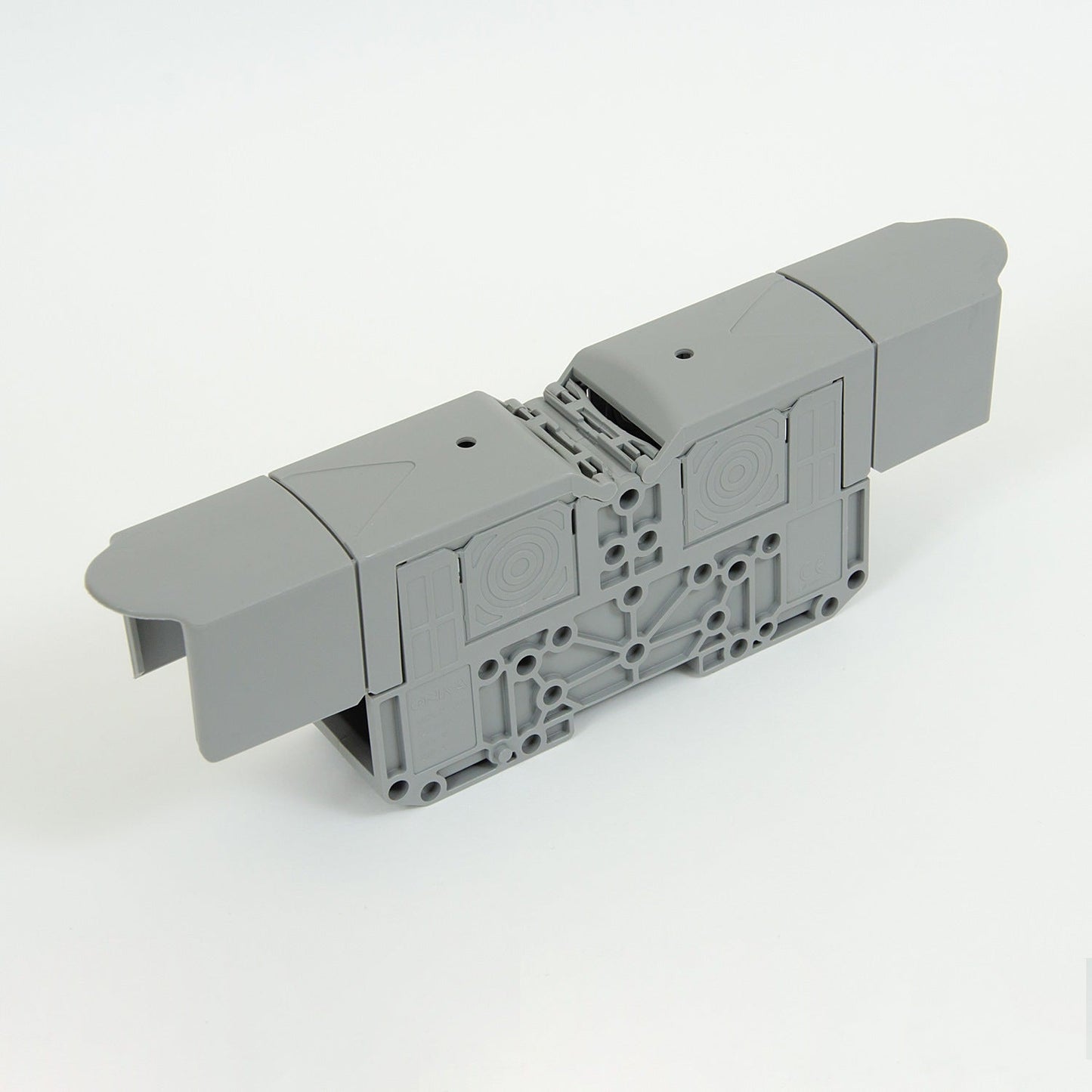

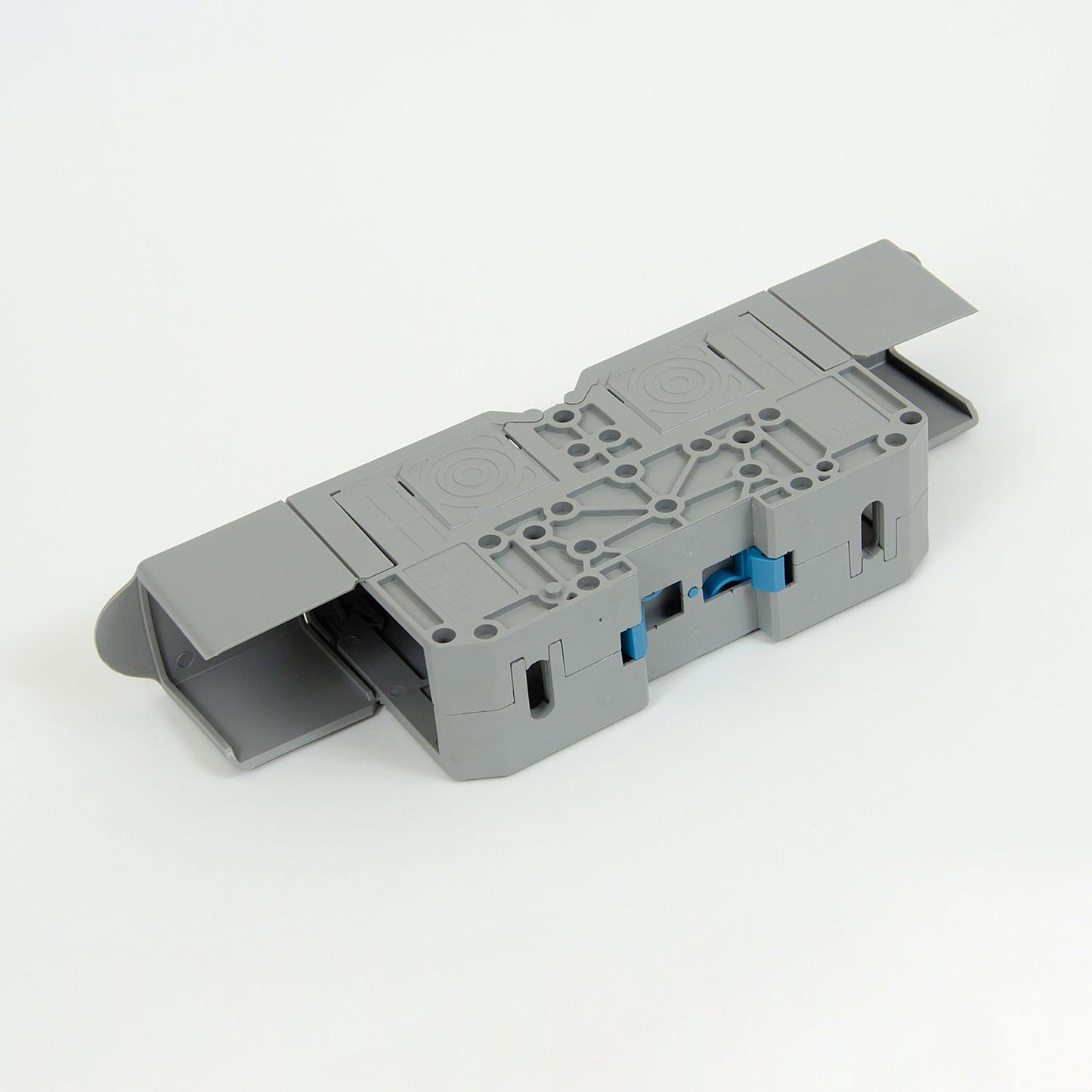

ONKA 120mm2 M10 screw rail connector terminal block DIN rail with protective cover, gray, 1030073

Barcode: 1030073

Regular price: €32,08
Regular price
Sale price: €32,08
Unit price: per

17 in stock

Product variants

Description
Payment methods
Warranty

M10, 120mm2, rail coupling with thread / DIN rail clamp with protective cover, gray, ONKA, made in Turkey

The compact installation rail connectors from ONKA offer great possibilities for connecting wires of different cross-sections. The transparent housing makes it easy to check the correct placement of the wires. The original ONKA quick couplings are convenient for installation and 100% reliable for connections.

Technical parameters

Cross-section of the connected single wire up to: 120mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Material contact/bridge: CK45 steel/copper
Connection position: side / lateral
Nominal voltage: 1000V
Nominal current: 269A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
