ONKA 10mm2 PE spring rail terminal block DIN-rail clamp 2-wire gray, 1020300
- Regular price
- €3,64
- Regular price
-
- Sale price
- €3,64
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty

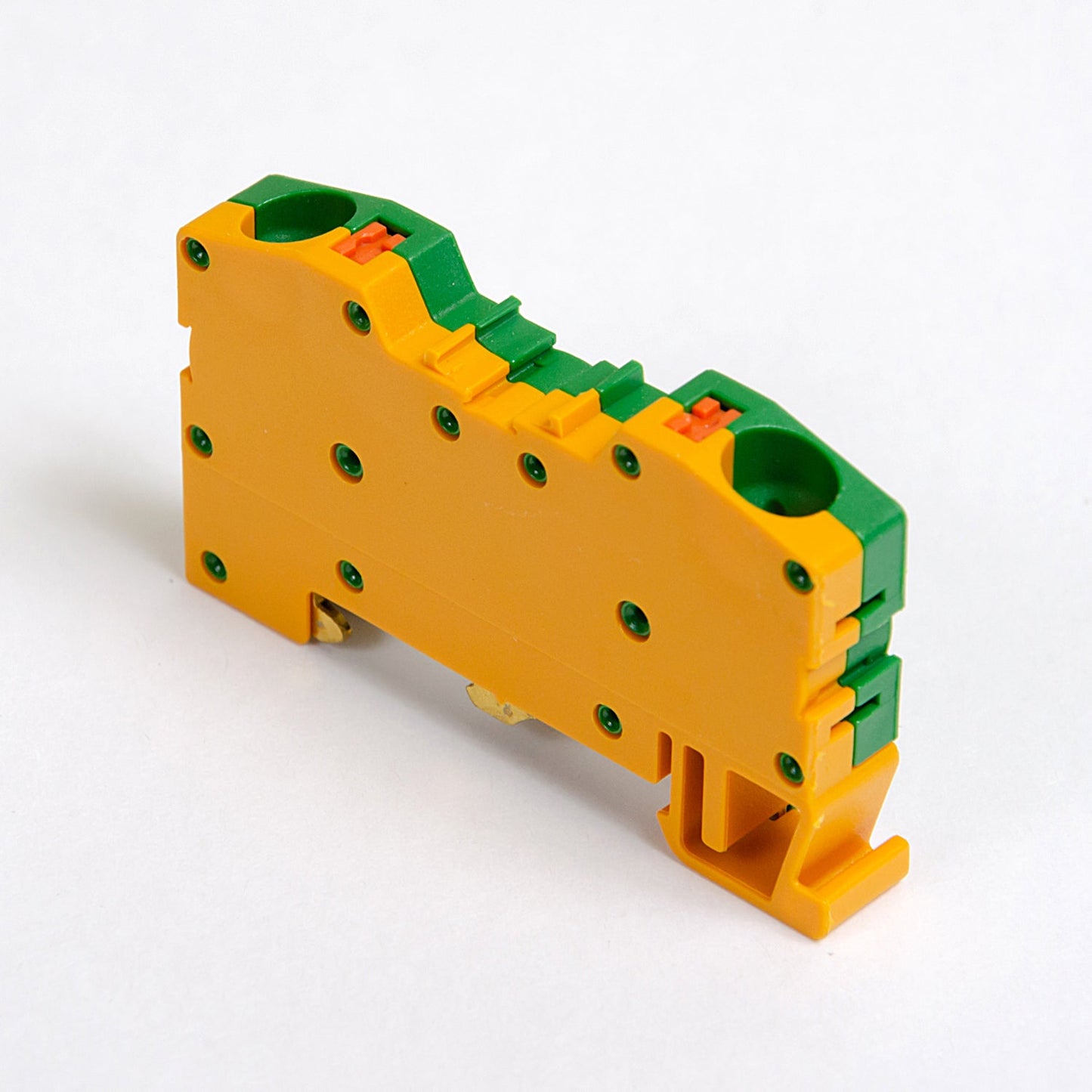

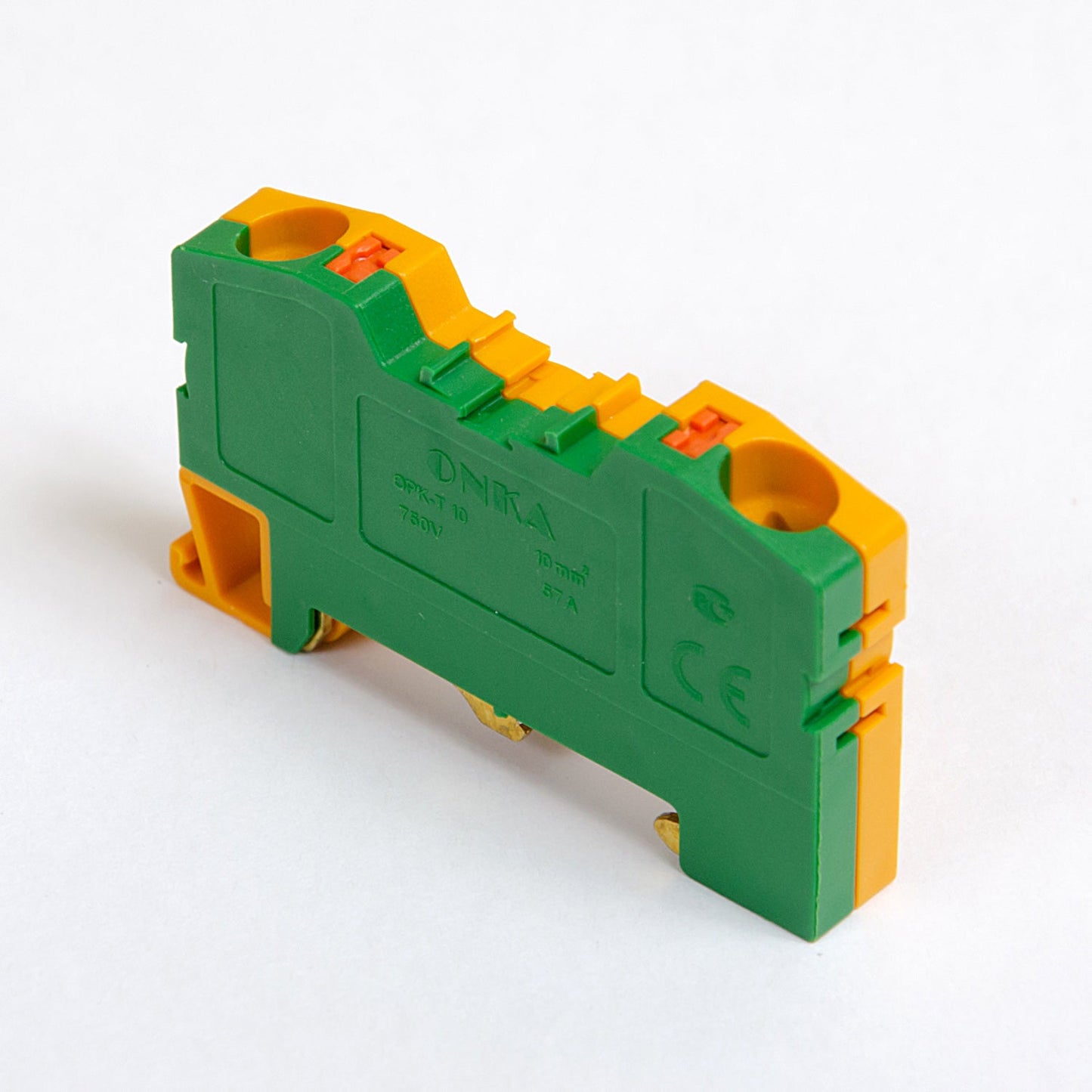

PE spring rail connector / DIN rail clamp 2-wire green-yellow, ONKA, made in Turkey
The compact installation rail couplings from ONKA offer great possibilities for connecting any wire with different cross-sections. The transparent housing makes it easy to check the correct placement of the wires. The original ONKA quick couplings are convenient for installation and 100% reliable when connecting.
Technical parameters
Cross-section of the connected single wire up to: 10mm2
Color: Green-yellow (camouflage)
Insulating material of the main housing: polyamide (PA6.6)
Material contact/bridge: CK45 steel/copper
Connection position: Top/top
Cable strip length: 12mm
Type of electrical connection: spring clamp
Nominal voltage: 750V
Operating temperature range: -40°C... 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
