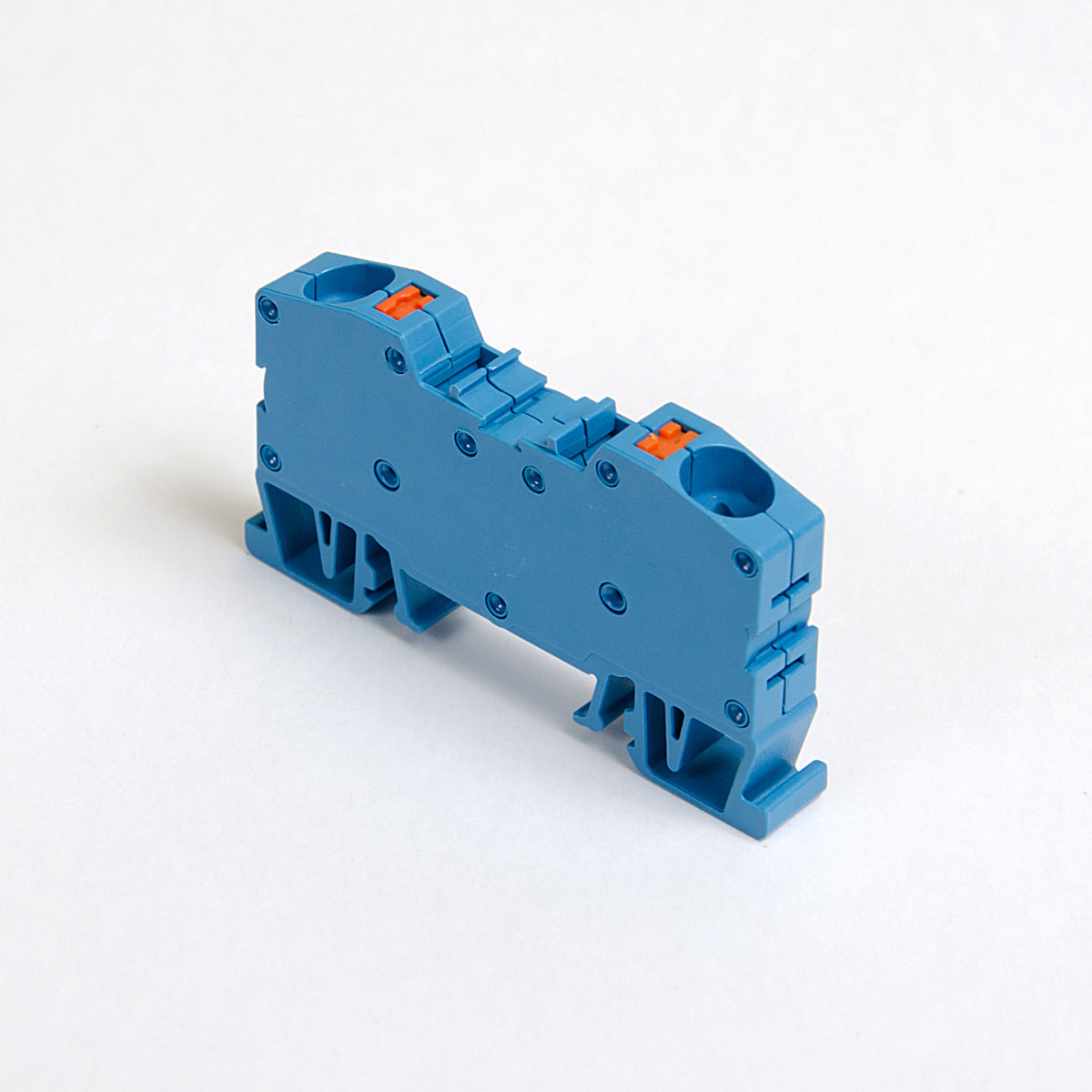

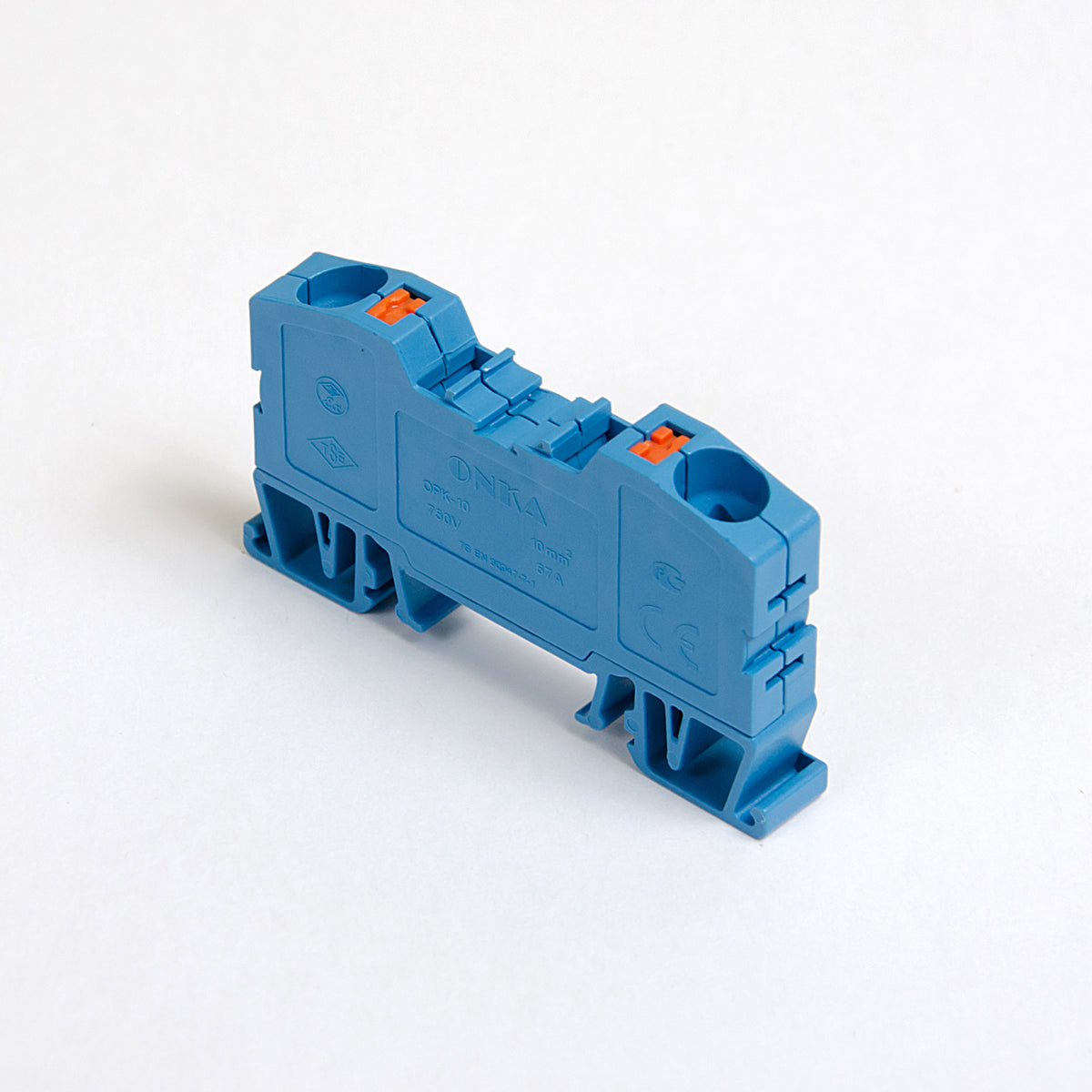

ONKA 10mm2 spring rail connector terminal block DIN rail terminal 2-wire blue, 1020047

Online payment by card – After completing the order, you will be redirected to the payment portal. You will receive a payment confirmation by email.

Cash on delivery – You pay the amount according to the payment instructions directly to the driver of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day. It contains the account number you should specify when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you want to use one of the last two payment methods, please contact our manager. He will give you instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In case of a complaint, no return shipping fee will be charged.

Spring rail coupling / DIN rail clamp 2-wire, retractable contact, blue, ONKA, made in Turkey.

The ONKA coupling/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations.
The coupling is made of high-quality materials and guarantees long-term use and resistance to mechanical damage.

Technical parameters

Cross-section of the connected single wire up to: 10mm2
Color: blue
Insulating material of the main housing: polyamide (PA6.6)
Material contact/bridge: stainless steel/copper
Connection position: top/top
Cable strip length: 12mm
Type electrical connection: spring clamp / retractable contact
Nominal voltage: 750V
Nominal current: 57A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
