ONKA 10-16mm2 / 3-Coil Steatite / Ceramic / Porcelain Plug - PORCELAIN TERMINAL BLOCK, 1070012
- Regular price
- €4,36 €3,60 excl. VAT
- Regular price
-
- Sale price
- €4,36 €3,60 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

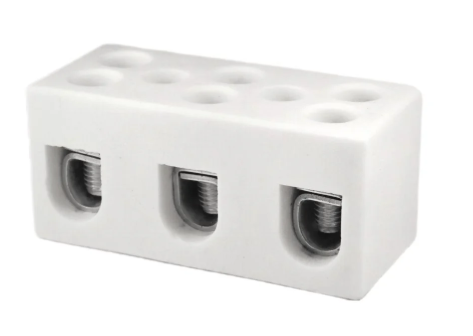

Steatite ceramic terminal block, ONKA
ONKA's high-temperature ceramic terminal blocks are designed for reliable electrical connections in extreme temperature conditions. The terminal body is made of steatite, which provides excellent insulation properties and withstands temperatures of up to 1100 °C. The high-quality CK45 steel contacts ensure a firm and stable screw connection for the conductors. The product is ideal for use in heating systems, ovens, and industrial equipment subject to high thermal stresses.
Technical parameters
Number of poles: 3
Insulating material: Steatite (ceramic)
Contact material: CK45 steel
Connection type.
Maximum operating temperature: 1100 °C
Standard: EN-60998-2-1
Dimensions
Length (A): 65.6 mm
Width (B): 30.0 mm
Height (C): 30.0 mm
Threaded hole diameter (DØ): 6.7 mm
Mounting hole diameter (MØ): 5.2 mm
