Vendor: TENSE

Level switch / low level monitor, outflow level meter for borehole VSR-05 TENSE

Barcode: VSR-05
€32,52
€32,52
excl. VAT: €27
Low stock: 10 left

Frequently bought together

de06e037dbc494e38b025e8b975bdb5e

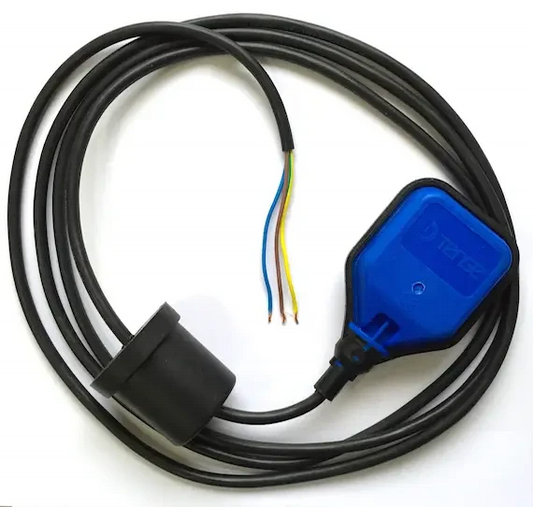

Float switch for clean water (filling, draining), NO+NC, PVC  – 1.6 m

€10,92
€10,92
50e56a1777788c33f4848d8b1b776e3f

 – Stainless steel level probe in PVC housing for water level controller SSE-10 TENSE

€4,92
€4,92
  • Description
  • Instructions
  • Payment methods
  • Warranty

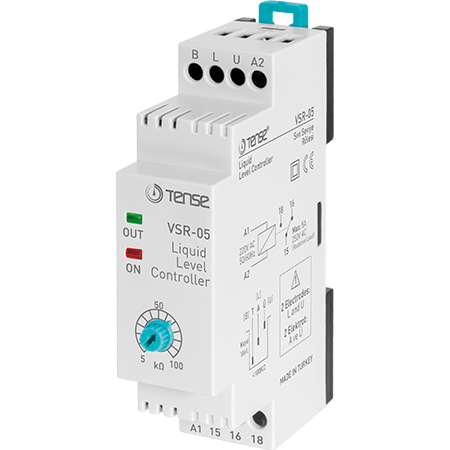

Water level control relay VSR-05 - TENSE

Product description

The VSR-05 relay is designed for automatic control of pumps or water transfer in tanks, wells, boreholes, or expansion tanks.

The relay supports the use of two or three level sensors and allows adjustment of sensor sensitivity for precise pump control.

Main Features

  • Level control of water in tanks, wells, boreholes, and expansion tanks

  • Supports two or three level sensors

  • Adjustment of sensor sensitivity for precise control

  • Pump protection with recommended 2A circuit breaker (2 pieces)

  • Terminal connection for easy installation

Technical parameters

  • Rated voltage: 220 VAC

  • Operating voltage range: 170-260 V AC

  • Operating frequency: 50/60 Hz

  • Operating power: < 3 VA

  • Operating temperature: -10 °C ... +50 °C

  • Dimensions: 22.5 × 75 × 85 mm

  • Weight: 250 g

Recommended accessories

  • Level sensors (2 or 3 pieces, depending on wiring)

  • 2A circuit breaker to protect input and output channels (2 pieces)

Application

  • Automatic switching on and off of pumps

  • Control of water pumps between tanks

  • Maintaining optimal water level in expansion tanks

  • Ideal for household and industrial applications
