Microprocessor stap/profile PID temperature controller

PID temperature controller, for panel and machine/control panel mounting, relay outputs, measurement range -100°C ... +1750°C, resolution / step 0.1ºC, 20 temperature steps / heating steps (made in Turkey, TENSE)

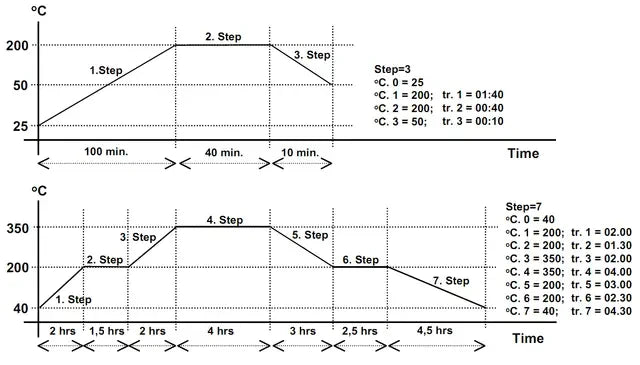

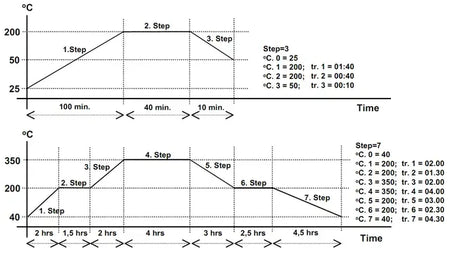

As you can see in the diagrams above, with the TENSE thermostat, unlike cheap analogs, you can set temperature limit points and the time it takes for the temperature to reach the set points. This greatly simplifies the programming process. Moreover, with the PID mode, you can keep the system temperature as close as possible to the set points.

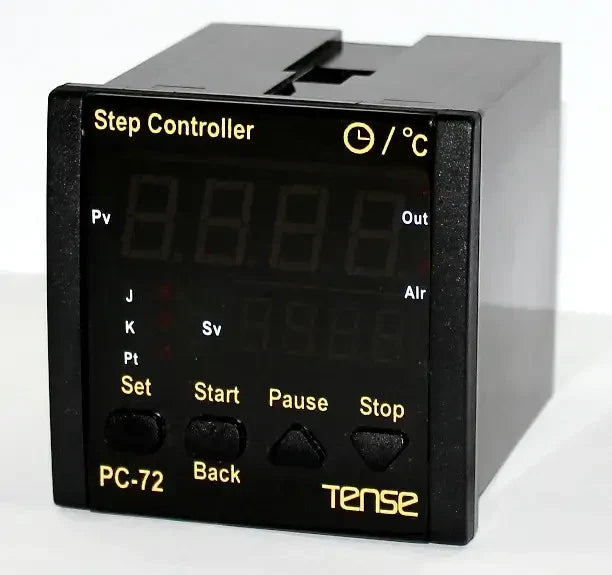

An important difference with the competition is also the simultaneous display of the current temperature, the set temperature, the set step, and the time. It is very convenient to have the control buttons START/STOP/PAUSE/SET on the front panel – this ensures quick and efficient control of your processes.

Temperature control is done via on/off or PID control. The controller offers self-optimization, preventing process values from being exceeded.

• Automatic adjustment of PID parameters

• Setting up to 20 temperature/heating steps

• Each step is programmed for up to 18 operating hours

• Sensor type: T/C (J,K,T,S,R), Pt100
• Selectable control type: P, PI, PD, PID or ON/OFF

• Automatic removal of "overshoot" in PID mode

• Anti-windup

• ON delay for OUT in cooling mode

• Password protection

• EEPROM memory for saving settings

• OUT relay outputs (NO+NC) 250VAC, 2A

The measurement range depends on the sensor and can be set with the buttons on the temperature controller.

Do not forget to order our temperature sensors – thermocouple type J Fe-Const (metric 6/8) with temperature measurement scale: -100 °C - +600 °C. Available with 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m and 5 m long cable.
