Microprocessor PID temperature controller for relay panel + SSR output up to 1750 °C

In stock - 11 items available
SKU: DT-48EM
Common price €44,00 incl. VAT
variant

Online payment by card – After completing the order, you will be redirected to the payment portal. You will receive a payment confirmation by email.

Cash on delivery – You pay the amount according to the payment instructions directly to the driver of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day. It contains the account number you should specify when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you want to use one of the last two payment methods, please contact our manager. He will give you instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In case of a complaint, no return shipping fee will be charged.

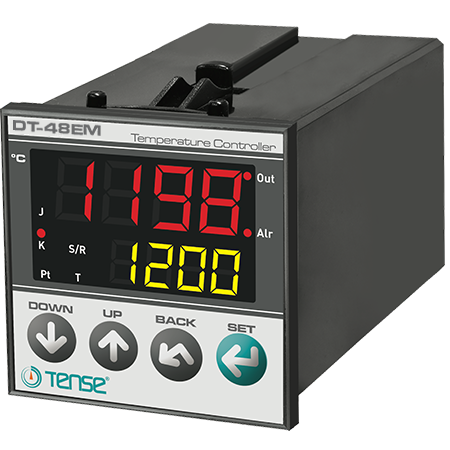

PID temperature controller for panel mounting, relay + SSR outputs, measurement range -100°C ... +1750°C, resolution / step 0.1ºC (manufactured in Turkey, TENSE)

Control and monitoring of thermal processes of heating, air conditioning, and ventilation systems, building automation, industrial equipment.

The temperature controller is implemented with on/off or PID control. The controller offers self-optimization to prevent process overshoot.

  • Automatic tuning of PID parameters

  • Sensor type: T/C (J,K,T,S,R), Pt100
  • Selectable control type: P, PI, PD, PID or ON/OFF.
  • Automatic removal of 'overshoot' in PID mode

  • Anti-windup
  • ON delay for OUT in cooling mode

  • Password protection

  • EEPROM memory for storing settings

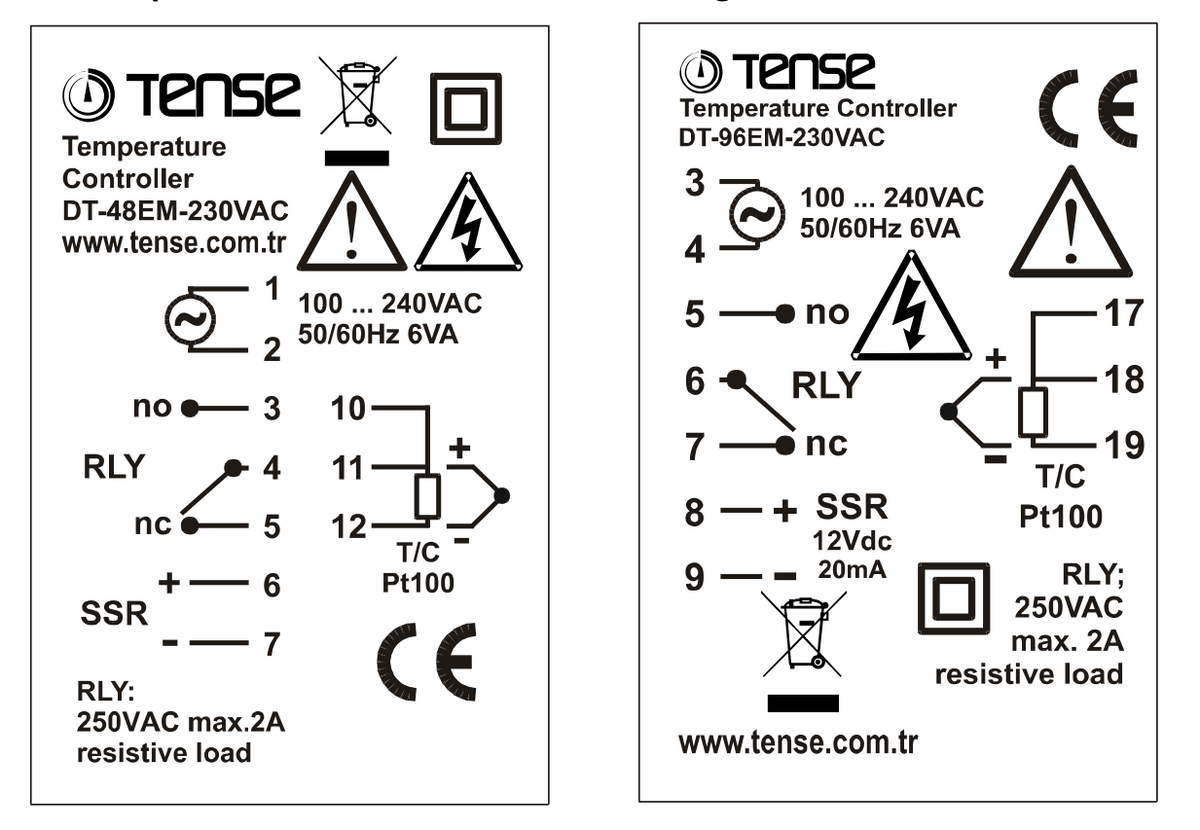

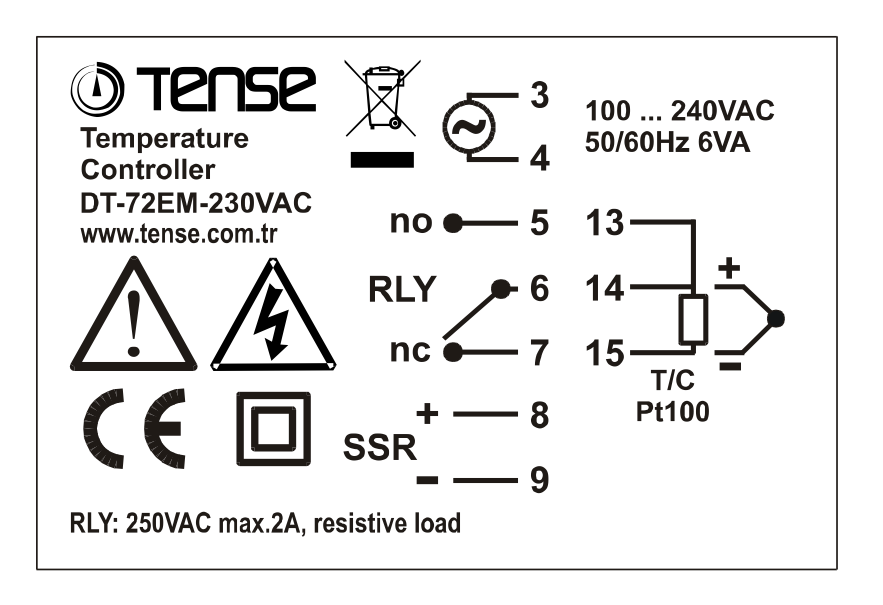

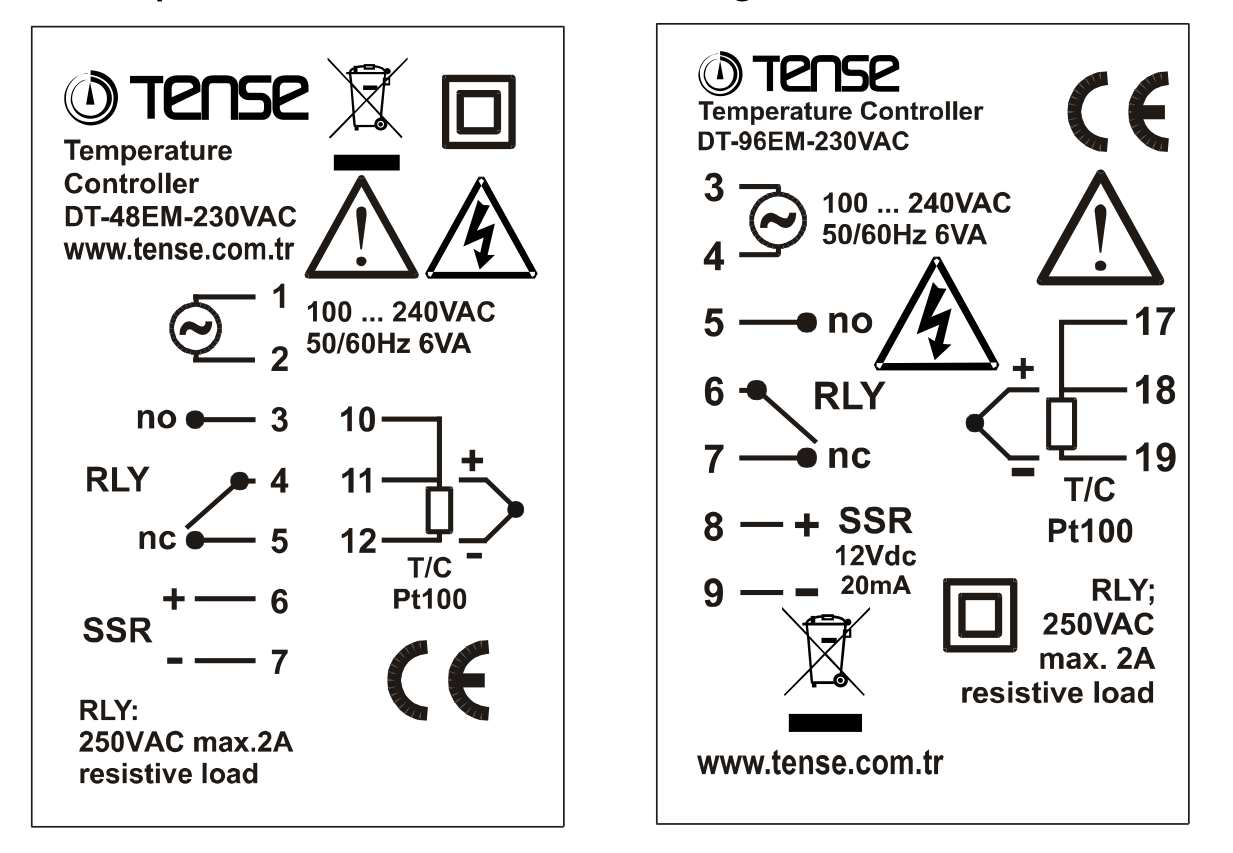

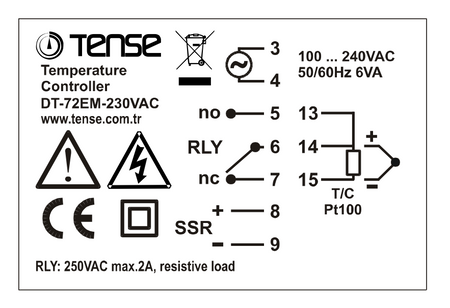

  • Relay outputs OUT (NO+NC) 250VAC, 2A/ SSR max 12Vdc, 20mA

The measurement range depends on the sensor and can be set with the buttons on the temperature controller.

The display of the temperature controller is a high-contrast display that can only be read accurately under poor conditions.

Don't forget to order our temperature sensors - type J Fe-Const thermocouples (metric 6/8) with temperature measurement range: -100 °C - +600 °C. Available with cable lengths of 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m, and 5 m.
