Air conditioning for control panels / Cooler 550W, PAD0550.01, Plastim
- Regular price
- €1.282,80
- Regular price
-
- Sale price
- €1.282,80
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty

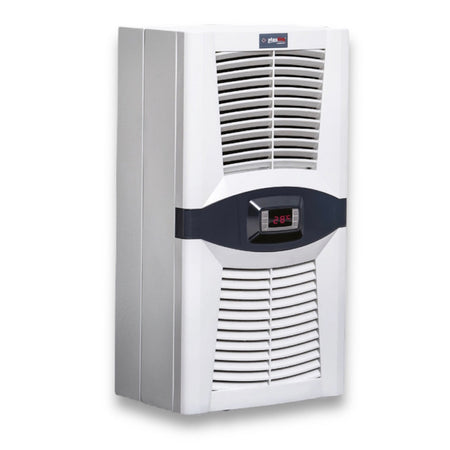

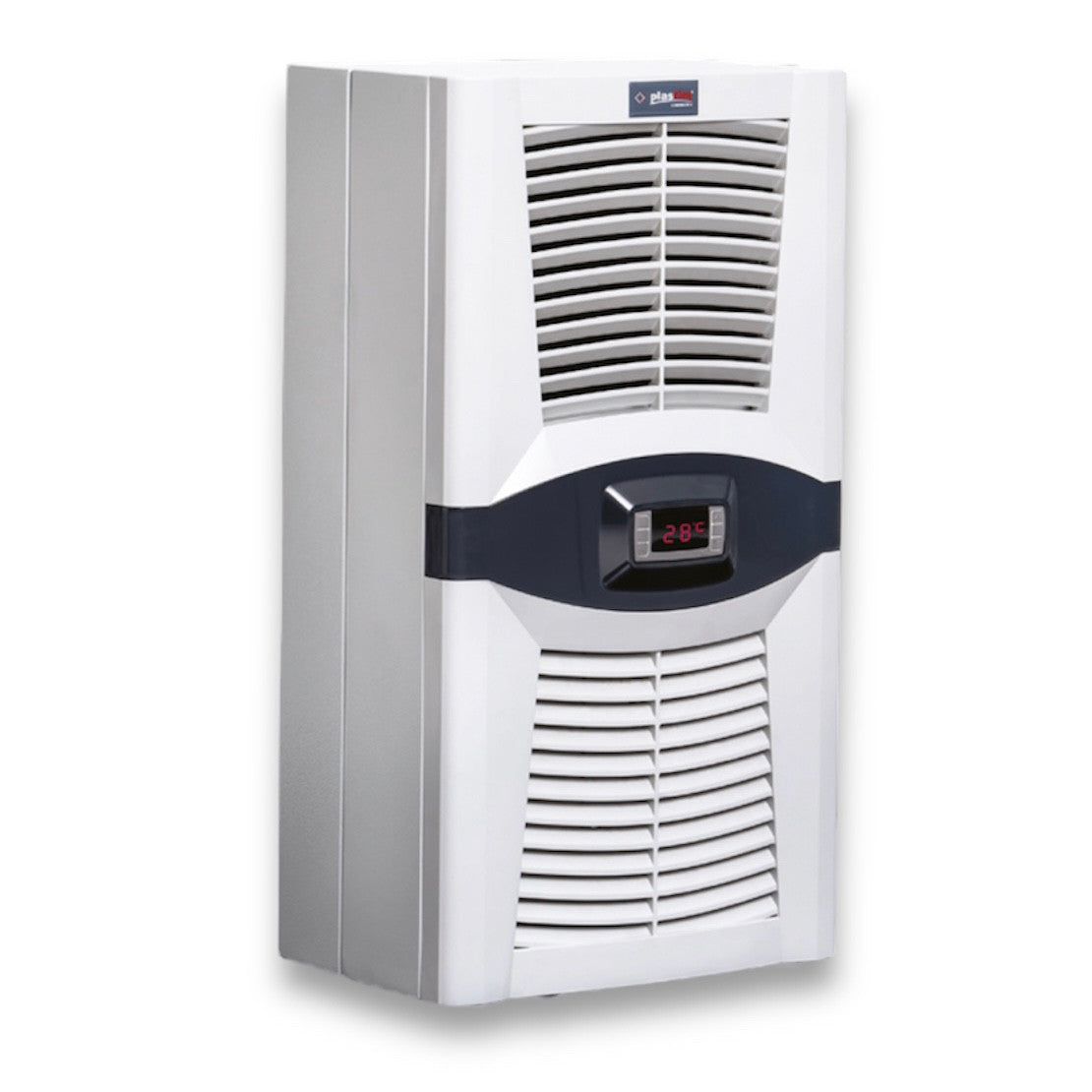

"Design Series" air conditioner for control panel/cooler 550 Watt / 1900BTU for control panel- and automation panel mounting on the side or on the wall.
The PAD0550.01 (PLASTIM) air conditioner for control cabinets is equipped with HIGHLY's state-of-the-art open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the opening of the control cabinet door.
Everything needed to install the air conditioning for the cabinet is included - gaskets, drain pipe, mounting screws, power connector.
| TECHNICAL DETAILS | PAD0550.01 |
| Cooling Capacity L35 / L35 | 550W / 1900BTU |
| Operating Voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting Current | 1.2A |
| Operating Current | 1.1A |
| Fuse | 6A |
| Power Consumption | 330W |
| Operating Range | 0-55 ° |
| Thermostat Factory Setting | 35 ° |
| Differential | 4 ° |
| Max. Air Volume Internal Circuit | 340 m³/h |
| Max. Air Volume External Circuit | 505 m³/h |
| Refrigerant Type | R134a |
| Refrigerant Quantity | 245gr |

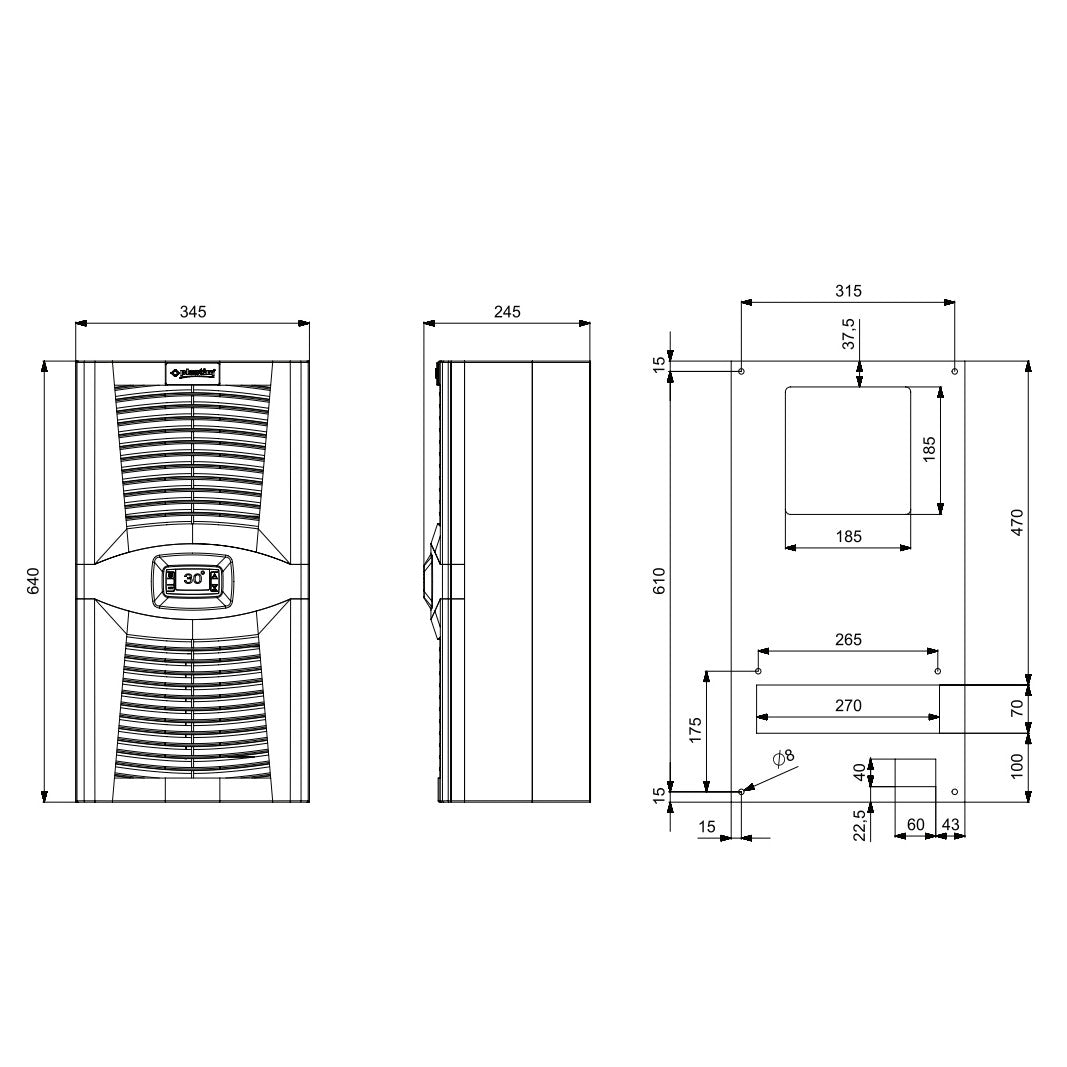

| Dimensions | 640x345x223mm |
| Weight | 27kg |
| Noise Level | 76 dB |
| Protection Class (Internal Circuit) | IP 54 |
| Protection Class (External Circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGH/HITACHI |
| Compressor Type | Rotary |
| Fans | EBMPAPST |
| Mounting Method | Wall Mounting |
