Air conditioning for control panels / Cooler 2500W, PAD2550.01, Plastim

In stock - 5 items available
SKU: PAD2550.01
Common price €2.156,40 incl. VAT

Online payment by card – After completing the order, you will be redirected to the payment portal. You will receive a payment confirmation by email.

Cash on delivery – You pay the amount according to the payment instructions directly to the driver of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day. It contains the account number you should specify when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you want to use one of the last two payment methods, please contact our manager. He will give you instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In case of a complaint, no return shipping fee will be charged.

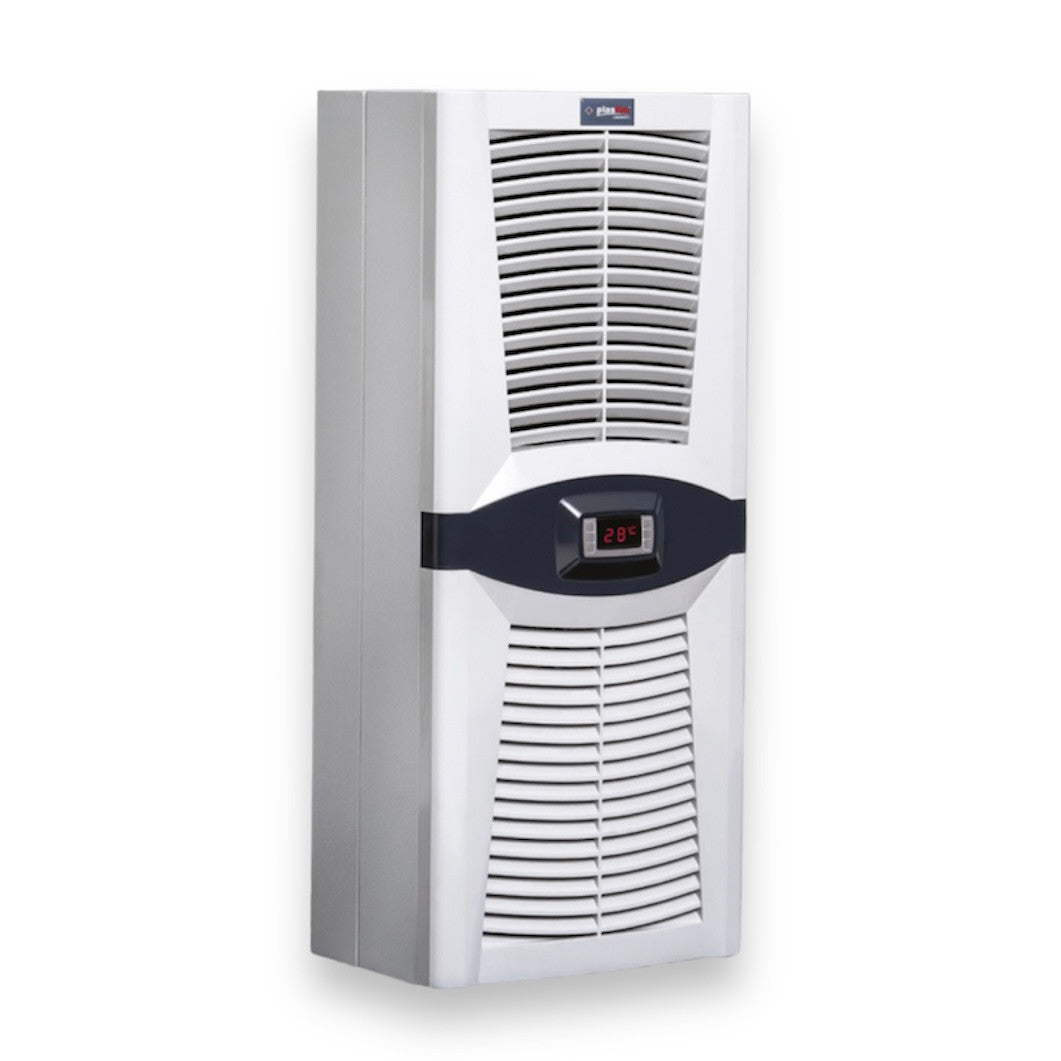

"Design Series" air conditioner for control panel / cooling machine 2500 Watt / 8550BTU for side or wall mounting on control panels and automation panels.

The PAD2550.01 (PLASTIM) air conditioner for control cabinets is equipped with HIGHLY's state-of-the-art open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the opening of the control cabinet door.

Everything needed to install the air conditioning for the cabinet is included - seals, drain pipe, mounting screws, power connector.

TECHNICAL DETAILS

PAD2550.01

Cooling capacity L35 / L35

2500W / 8550BTU

Operating voltage

230VAC

Frequency

50/60 Hz

Starting current

11A

Operating current

3.8A

Fuse

16A

Power consumption

800W

Operational range

0-55 °C

Thermostat factory setting

35 °C

Differential

4 °C

Max. internal circuit air volume

510 m³/h

Max. air volume external circuit

625 m³/h

Type of refrigerant

R134a

Amount of refrigerant

750gr

Dimensions

980x430x270mm

Weight

47 kg

Noise level

82 dB

Protection class (internal circuit)

IP 54

Protection class (external circuit)

IP 34

Colour

RAL7035

Compressor

HIGH/HITACHI

Type compressor

Rotary

Fans

EBMPAPST

Assembly method

Wall Mount
