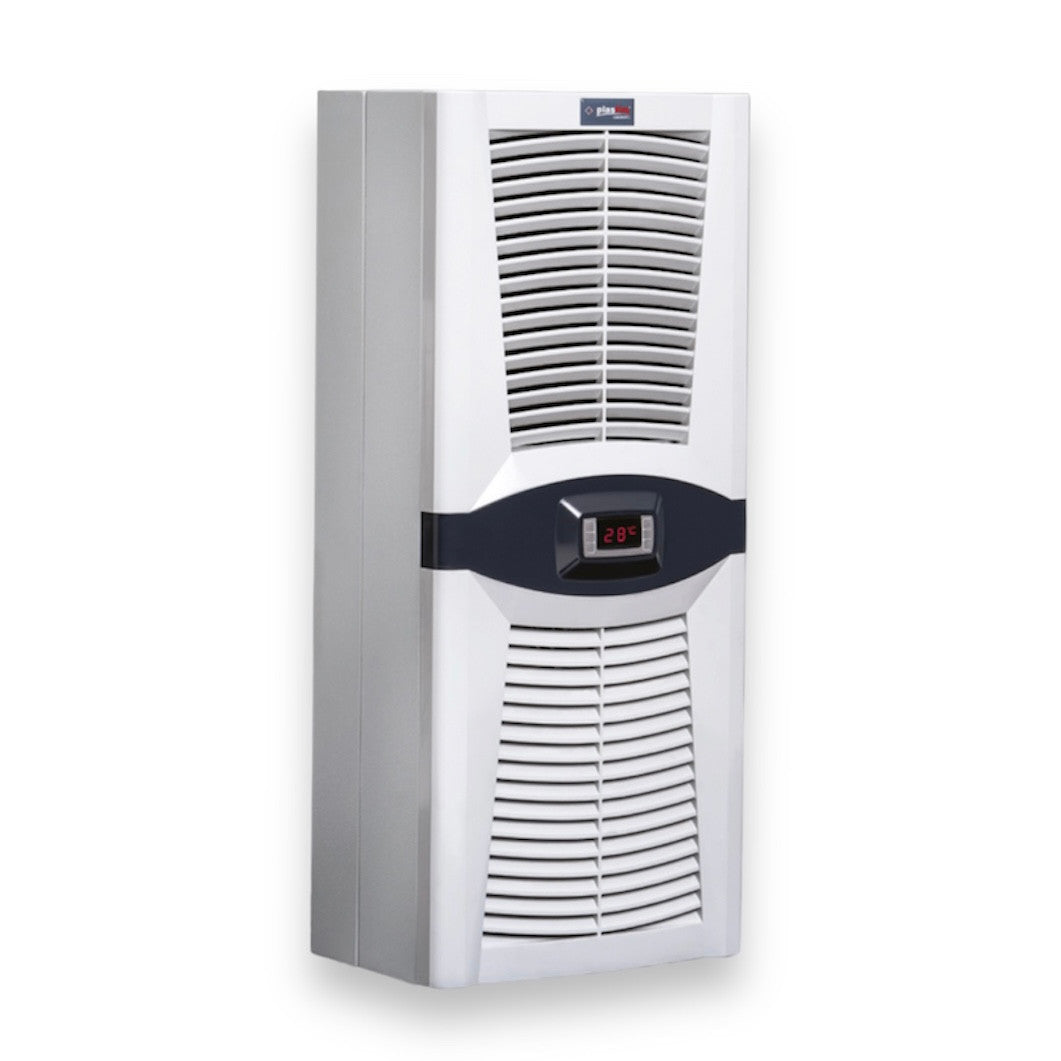

Air conditioning for control panels / Cooler 1100W, PAD1100.01, Plastim
- Regular price
- €1.563,40
- Regular price
-
- Sale price
- €1.563,40
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty
"Design Series" air conditioner for control panel/cooler 1100 Watt / 3800BTU for control panel and automation panel side or wall mounting.
The PAD1100.01 (PLASTIM) air conditioner for control cabinets is equipped with a modern open rotating compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch to control the opening of the control cabinet door.
Everything needed to install the air conditioning for the cabinet is included - seals, drain pipe, mounting screws, power connector.
| TECHNICAL DETAILS | PAD1100.01 |
| Cooling capacity L35 / L35 | 1100W / 3800BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 7.2A |
| Working Current | 2.5A |
| Fuse | 10A |
| Power consumption | 575W |
| Operational range | 0-55 °C |
| Thermostat factory setting | 35 °C |
| Differential | 4 °C |
| Max. internal circuit air volume | 340 m³/h |
| Max. air volume external circuit | 590 m³/h |
| Type of refrigerant | R134a |
| Amount of refrigerant | 310gr |

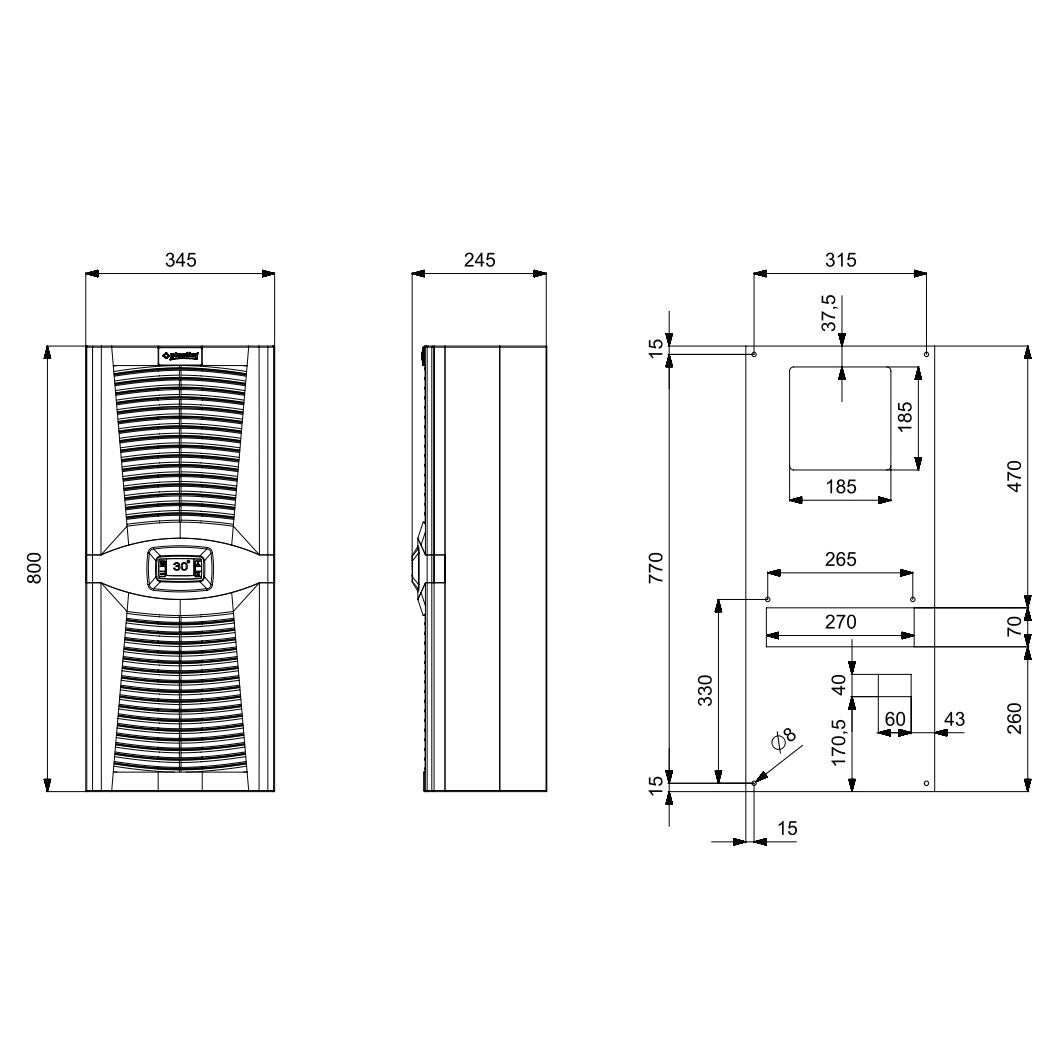

| Dimensions | 800x345x223mm |
| Weight | 32kg |
| Noise level | 76 dB |
| Protection class (internal circuit) | IP 54 |
| Protection class (external circuit) | IP 34 |
| Colour | RAL7035 |
| Compressor | HIGH/HITACHI |
| Type compressor | Rotary |
| Fans | EBMPAPST |
| Assembly method | Wall Mount |
