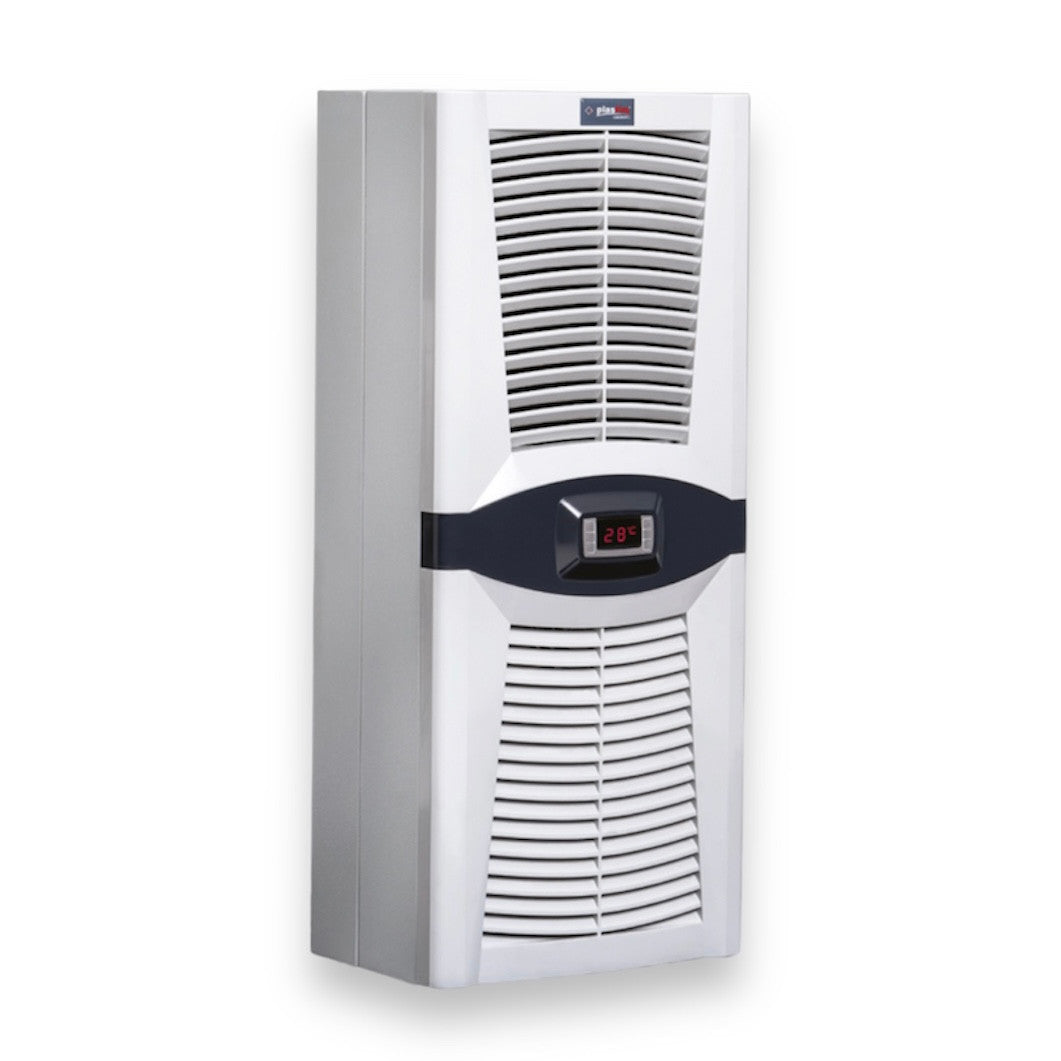

Air conditioning for control panels / Cooler 850W, PAD0850.01, Plastim
- Regular price
- €1.503,28
- Regular price
-
- Sale price
- €1.503,28
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
"Design Series" air conditioner for control panel / chiller 850 Watt / 2990BTU for control and automation panel side or wall mounting.
The air conditioner for control panels PAD08500.01 (PLASTIM) is equipped with a modern open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch to control the opening of the control panel door.
Everything needed to install the air conditioning for the cabinet is included - gaskets, drain pipe, mounting screws, power connector.
| TECHNICAL DATA | PAD0850.01 |
| Cooling capacity L35 / L35 | 850W / 2900BTU |
| Voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 6A |
| Operating current | 1.7A |
| Fuse | 10A |
| Power consumption | 394W |
| Operating range | 0-55 °C |
| Factory thermostat | 35 °C |
| Differential | 4 °C |
| Max. air volume internal circuit | 340 m³/h |
| Max. air volume external circuit | 505 m³/h |
| Type of refrigerant | R134a |
| Amount of refrigerant | 290gr |
| Dimensions | 800x345x223mm |
| Weight | 30kg |
| Noise level | 76 dB |
| Protection rating (internal circuit) | IP 54 |
| Protection rating (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HOOG/HITACHI |
| Compressor type | Rotating |
| Fans | EBMPAPST |
| Assembly method | Wall mounting |
Online payment by card – after completing the order, you will be redirected to the payment page. The payment confirmation will be sent to your e‑mail.
Cash on delivery (COD) – you pay the amount directly to the driver upon delivery.
By bank transfer – at the latest on the next working day, you will receive a pro-forma invoice by e‑mail with the account number to which you can pay.
On invoice – this payment option is available for partners who have concluded a framework agreement with our company.
If you want to use one of the last two payment methods, please contact our business manager. He will explain to you how to receive an invoice with or without VAT.
The electrical equipment we supply meets high quality standards, has a 24-month warranty, and fully complies with all EU requirements.
In case of a complaint, no return costs will be charged.
