Vendor: TENSE

Frequency counter / frequency counter / frequency meter panel digital built-in 1-400Hz

Barcode: DJ-F72
Regular price
€38,20
Regular price
Sale price
€38,20
Low stock: 5 left

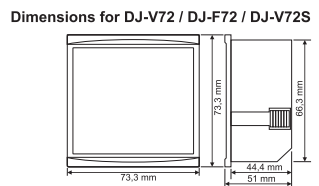

Height x Width: 73 mm x 73 mm
  • Description
  • Instructions
  • Payment methods
  • Warranty

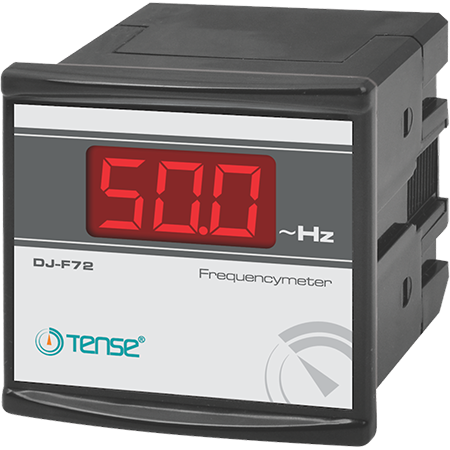

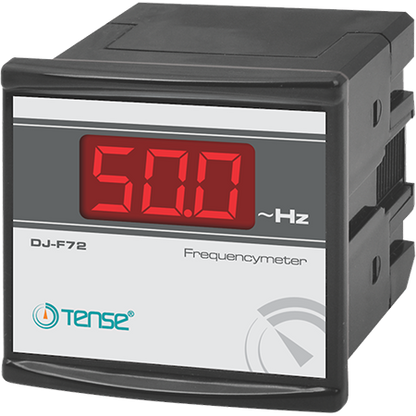

Digitale frequentiemeter TENSE DJ-F72

Beschrijving

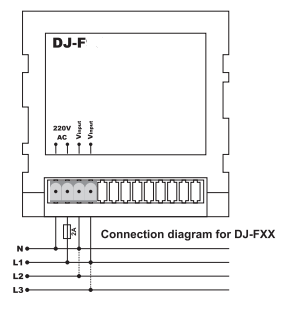

De TENSE DJ-F72 digitale frequentiemeters zijn ontworpen voor continue bewaking van de frequentie van wisselstroom (AC). Als de voeding is aangesloten, geeft het apparaat op het digitale display de frequentie weer van de fase of lijnspanning die op de Vin-ingangen wordt toegepast. De gemeten spanning moet liggen in het bereik van 15-500 VAC.

Voordelen

  • Continue frequentiebewaking

  • Nauwkeurige digitale meting met ±1% nauwkeurigheid

  • Eenvoudige installatie op het frontpaneel

  • Laag stroomverbruik (<6 VA)

  • Compacte en betrouwbare werking, zelfs op hoogtes tot 2000 m

Technische specificaties

ParameterWaarde
Bedrijfsspanning (Un)140 - 260 V AC
Bedrijfsfrequentie50/60 Hz
Opgenomen vermogen<6 VA
Frequentiemeetbereik1 - 400 Hz (spanning 15-500 V AC)
Meetnauwkeurigheid±1 %
Bedrijfstemperatuur0 °C - 55 °C
BeschermingsklasseIP20
Type aansluitingAansluitklem
Max.
Kabeldoorsnede1,5 mm²
Gewicht<220 g
Werkhoogte<2000 m

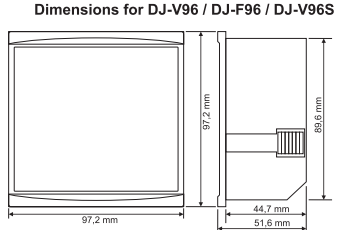

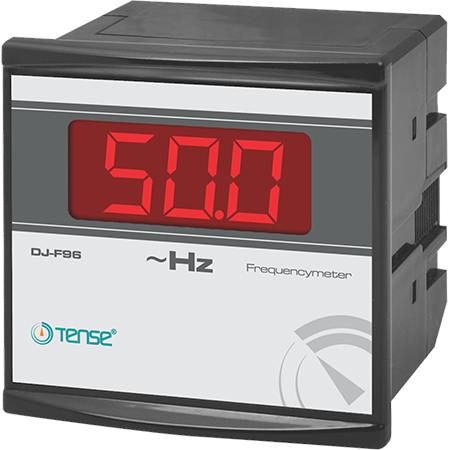

ModelDisplaygrootteMontagegatgrootteDJ-F9620
mm, 3-cijferig91x 91
mmDJ-F7214
mm, 3-cijferig68x 68
mmDJ-F489

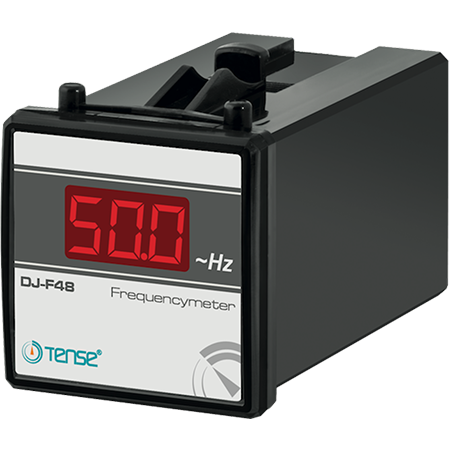

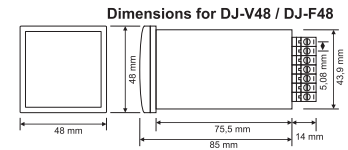

mm, 3-cijferig45x 45 mm


Installatie

  • Montage op voorpaneel

  • Geschikt voor industriële en huishoudelijke stroomsystemen
