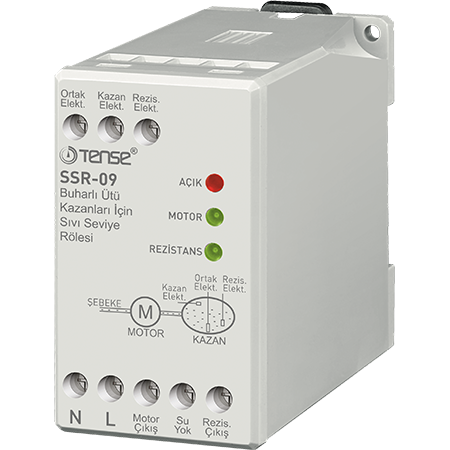

Water level control relay for a single tank with heating protection - Tense SSR-09

Product description

The SSR-09 relay from Tense is a modern device designed for automatic water level control in boilers, storage tanks, and heaters.
It ensures a reliable water supply, timely pump shutdown, and above all, effective protection of the electric heating element against dry running.

The device uses capacitive electrodes to monitor the water level and automatically controls the pump and heating element based on the current tank situation.

Main benefits

• Dry run protection for both the boiler and the heating element - extends the equipment's lifespan.

• Automatic water level control: the pump turns on when the water level is low and turns off when the upper level is reached.

• Heating protection: if no water is present at the heater, the device immediately blocks the power supply.

• LED indication of pump and heating function for easy status monitoring.

• Easy installation - DIN-rail mounting, clear screw terminals.

• Compact dimensions, low consumption.

• Wide operating voltage range of 170-260 VAC - stable operation, even with power fluctuations.

Operating principle

The SSR-09 operates with two electrodes in the tank:

1. Lower electrode (min. level)

   • If the water level falls below this electrode, the relay activates the pump and starts pumping water.

2. The upper electrode (max. level)

   • When the upper level is reached, the relay automatically switches off the pump.

3. Protective electrode at the heating element

   • If there is no water at the heating element, the relay switches off the power to the heating element to prevent overheating.

This intelligent logic ensures safe and economical operation of the entire system.

Usage

• Electric boilers and water heaters

• Heating systems with storage tank

• Storage tanks for household and industrial water

• Water utilities and pump systems

• Reservoirs for drinking water or household water

Installation and connection

• Mounting on standard DIN rail in the enclosure.

• Connection via screw terminals.

• Electrodes must be installed at the required levels in the tank.

• For stable operation, the manufacturer recommends using conductors of at least 2.5 mm².

Note: The electrodes (level probes) are not included and must be ordered separately.
