Phase control relay FKV-03F
- Regular price
- €22,28
- Regular price
-
- Sale price
- €22,28
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

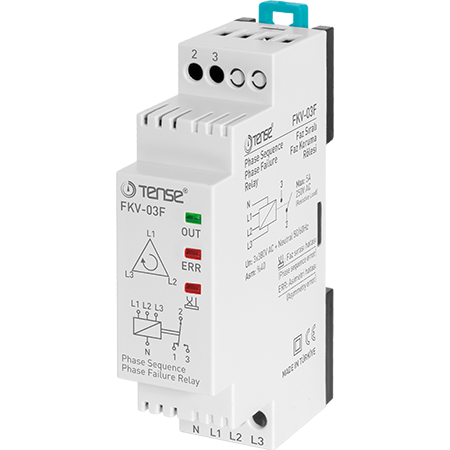

FKV-03F - Phase monitoring relay, TENSE
Product description
The FKV-03F relay is designed to protect three-phase electric motors against incorrect phase sequence, phase failure, and voltage asymmetry (fixed at 40%). The device includes a neutral conductor and clear LED indication for status and faults.
Function and operation
-
Normal operation: LED OUT on, relay active.
-
Asymmetry error: LED ERR off, relay deactivated.
-
Incorrect phase sequence: error indicator lit, LED OUT off, relay deactivated.
-

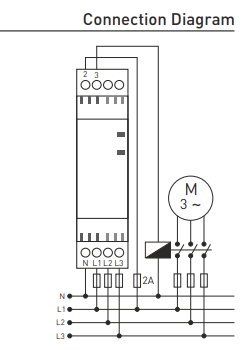

Contacts:
-
Relay active: 2 (COM) and 3 (NO) connected.
-
Relay deactivated: 2 (COM) and 3 (NO) connected.
-
Technical details
-
Operating voltage: 3×380 V AC + neutral wire
-
Frequency: 50/60 Hz
-
Power consumption: <6 VA
-
Asymmetry: fixed 40%
-
Contact: 5 A / 250 V AC (resistive load)
-
LED indication: 3 diodes
-

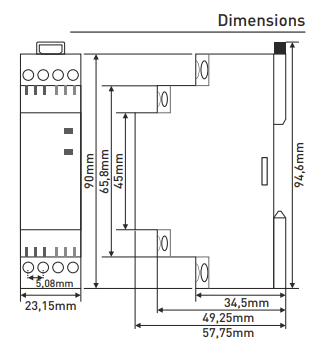

Mounting: DIN rail
-
Operating temperature: -20 °C to +55 °C
-
Cable diameter: up to 2.5 mm²
-
Weight: <150 g
Application
-
Three-phase electric motors
-
Industrial machines and pumps
-
Equipment sensitive to the quality of the power supply network
