Vendor: TENSE

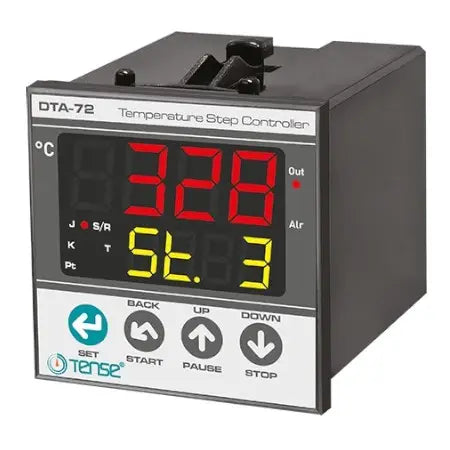

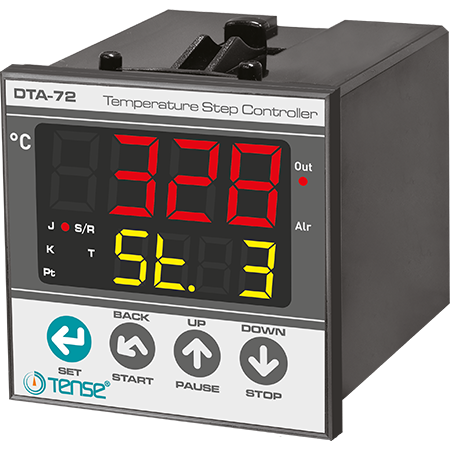

DTA-72 Digital Temperature Phase Control Relay

Barcode: DTA-72
€98,00
€98,00
Low stock: 4 left
  • Description
  • Payment methods
  • Warranty

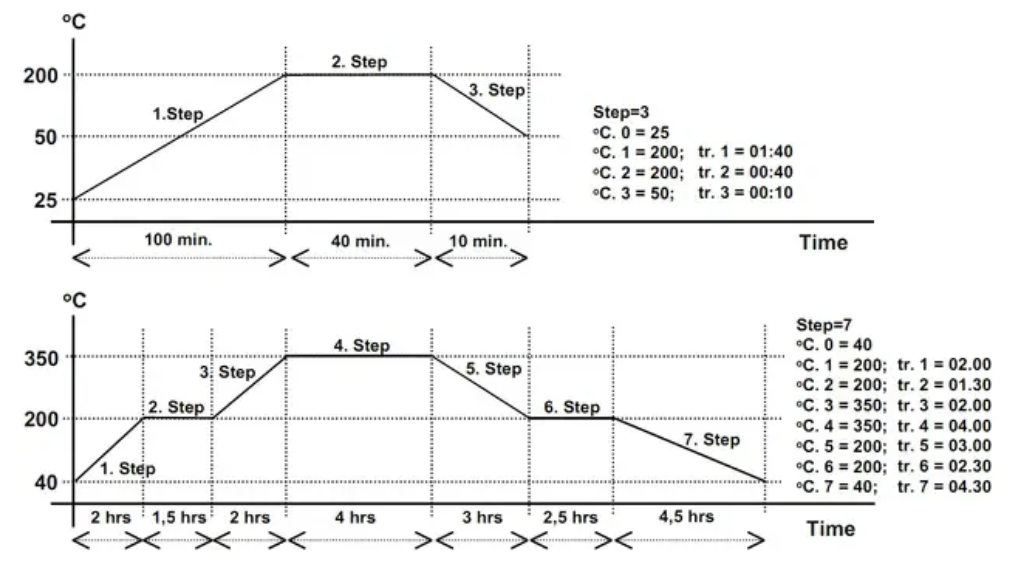

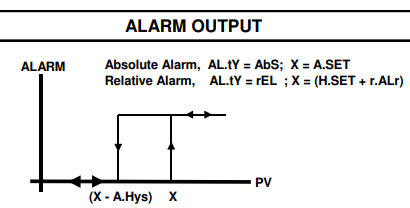

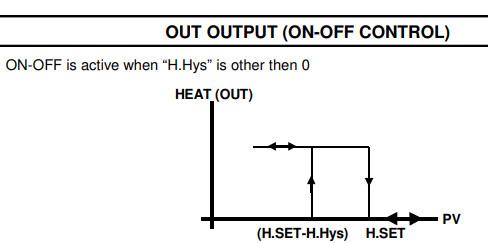

Digital temperature control relays are designed to maintain a set temperature in environments where temperature regulation is required. - Microprocessor PID temperature controller with step control - Automatic setting of PID parameters - Sensor types: T/C (J,K,S), Pt100 - Selectable control type: P, PI, PD, PID or ON-OFF - Anti-windup function - Maximum 20 steps - Step time setting up to 18 hours/step - Selection of relative or absolute alarm - Display: SET value, process value, step number, remaining time - Cold junction compensation for T/C - Lead compensation for Pt100 - Excellent linearity with conversion tables for °C/mV and °C/Ohm - Correction function for input offset - Password protection - High accuracy - EEPROM memory for storing settings - Optional SSR output - Easy connection via connectors

Online payment by card – after completing the order, you will be redirected to the payment page. The payment confirmation will be sent to your e‑mail.

Cash on delivery (COD) – you pay the amount directly to the driver upon delivery.

By bank transfer – at the latest on the next working day, you will receive a pro-forma invoice by e‑mail with the account number to which you can pay.

On invoice – this payment option is available for partners who have concluded a framework agreement with our company.

If you want to use one of the last two payment methods, please contact our business manager. He will explain to you how to receive an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and fully complies with all EU requirements.

In case of a complaint, no return costs will be charged.
