Three-phase monitoring relay with PTC control phase disconnection/asymmetry/order

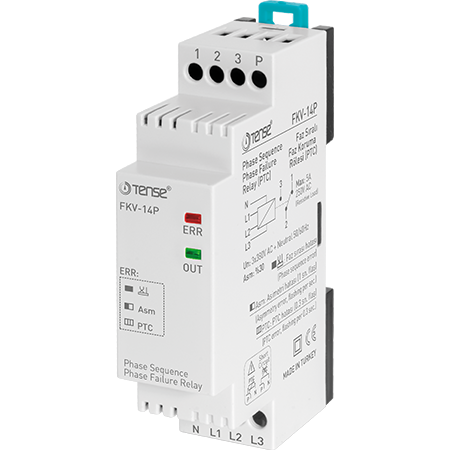

Three-phase phase control relays with shutdown protection and winding temperature control, TENSE - FKV-14P

Product description

The FKV-14P three-phase phase control relay is designed to protect three-phase electric motors and equipment against critical faults in the power network. It provides comprehensive control over phase presence, phase failure, phase disturbance, asymmetry (fixed 40%), phase sequence error, and excessive motor winding temperature. Equipped with a neutral conductor and designed for DIN rail mounting.

Main Features

• Checks the presence of all three phases

• Phase failure protection

• Phase disturbance detection (kinks)

• Fixed voltage asymmetry control 40%

• Protection against incorrect phase sequence

• Motor winding temperature control

• Optical status indication (OUT LED)

• Automatic recovery of operation when parameters return to the allowed range

Operating principle

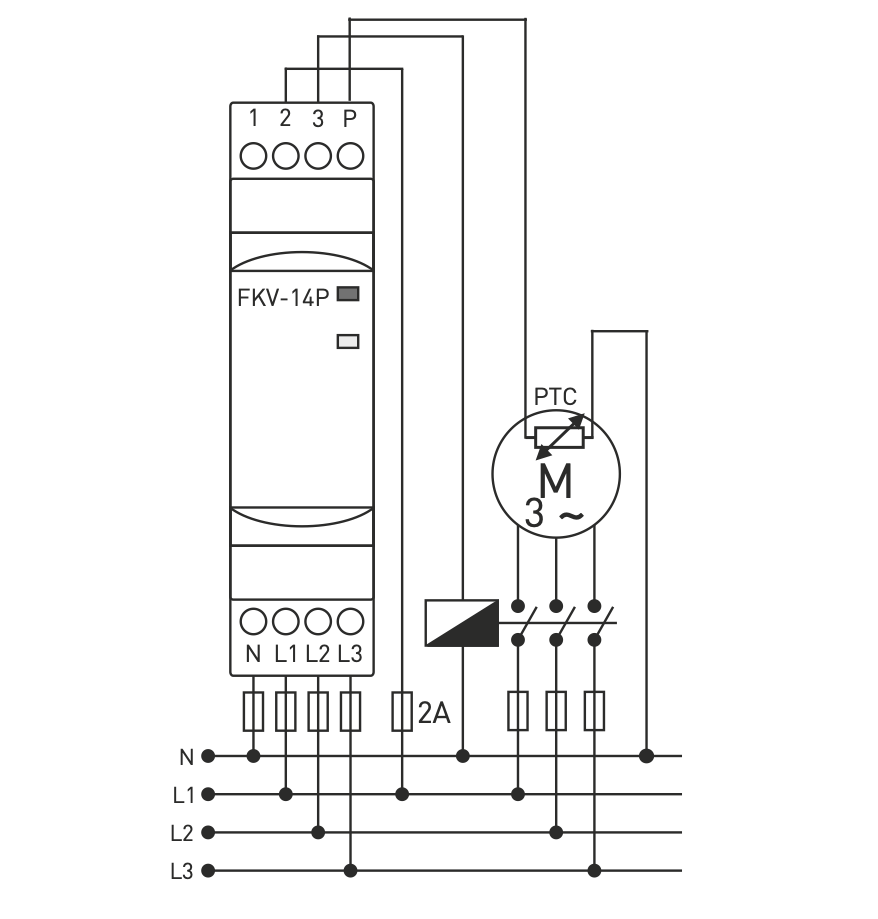

• Normal operation: if all three mains voltages are present, the phase sequence is correct, and the winding temperature does not exceed limits, the relay is activated (contacts 15-18 are closed) and the OUT LED lights up.

• Voltage fault or asymmetry: if the voltage of one phase deviates more than 40%, contacts 15-18 open and contacts 15-16 are energized; the OUT LED turns off.

• Phase sequence risk: the relay responds by opening the contacts and turning off the OUT LED.

• Winding temperature exceeded: relay switches off the output until the temperature returns to allowed limits.

• Function recovery: The relay automatically returns to operating state after parameters have normalized.

Technical specifications

• Device type: Phase monitoring relay

• Number of phases: 3 + N

• Asymmetry: 40% (fixed)

• Winding temperature protection: Yes

• Output contacts: 15-18 (closed in operation), 15-16 (closed in fault)

• Indication: LED OFF

• Mounting: DIN rail

• Manufacturer: TENSE (Turkey)

Benefits

• Extensive motor and wiring protection

• Stable operation thanks to fixed asymmetry of 40%

• Easy installation on DIN rail

• Automatic function recovery without operator intervention

• Reliable protection under harsh industrial conditions

Typical applications

• Three-phase electric motors

• Industrial pump systems

• Compressors

• Fans

• Machines sensitive to phase sequence and quality
