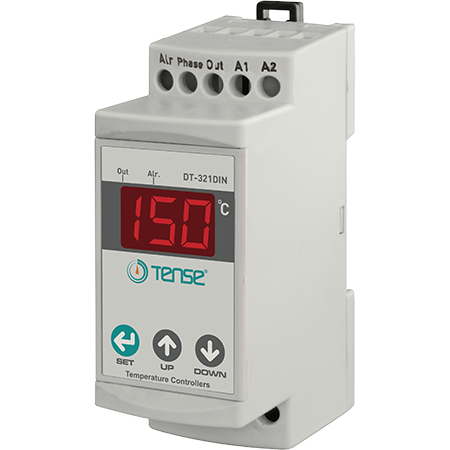

2-point temperature controller / thermostat for DIN rail mounting with external sensor - DT-321DIN (TENSE, Turkey)

ON-OFF control, measuring range -30 °C ... +150 °C

Product description

The temperature controller DT-321DIN is characterized by its individual applicability and is used to control heating or cooling devices. Alternatively, the DT-321DIN can also simply serve as a display device.
It is used for controlling and monitoring thermal processes in heating, air conditioning, and ventilation systems, in building automation and industrial installations.

Main features

• Sensor type: NTC

• Outputs: OUT and ALARM (NO+NC), 250VAC, 2A

• Optional heating/cooling function

• Adjustable hysteresis

• Adjustable ON/OFF timers for OUT output in case of sensor failure

• Protection against compression by adjustable switch-off times

• Upper and lower limits for SET- and ALARM settings

• Separate adjustable hysteresis for SET and ALARM

• ON delay for OUT in cooling mode

• EEPROM memory for storing settings

• Password protection

• High precision

Scope of delivery

• 1× DT-321DIN temperature controller

• 1× NTC sensor

• 1× user manual (English)

This temperature controller is compatible with the three types of sensors presented on our website:

1. -30 °C to 105 °C - SKU: NTC-105 (included)

2. -30 °C to 150 °C - SKU: NTC-150

3. -30 °C to 150 °C - with thread and nut - SKU: NTC-S-150

Technical specifications

• Power supply voltage: 100 to 240 V AC, 50/60 Hz

• Power consumption: < 6 VA

• Sensor type: NTC

• Temperature measuring range: -30 °C to +150 °C

• Resolution: ±1 °C

• Measurement accuracy: ±3 % (°C), over the entire measuring range

• Output: relay (NO + NC), 250 VAC, 2 A

• ALARM output: relay (NO + NC), 250 VAC, 2 A

• Operating temperature: 0 °C to 50 °C

• Heating/cooling: Ht (heating) / Cl (cooling) - selectable

• Cutout for panel: 66 × 36 mm

• Display: 3-digit, 7-segment

• Product type: temperature measuring instrument

• Protection class: IP00

• Brand: TENSE

• Country and region of manufacture: Türkiye

• Power supply voltage: 100V - 240V ~

• Connection type: screw terminals

• Mounting: DIN rail

• Temperature measuring range: -30...+150 °C

• Temperature relay (NO + NC), 250 VAC, 2 A, resistive load

• Sensor type: NTC sensor

• Shipping weight: 0.12 kg

• Item weight: 0.10 kg

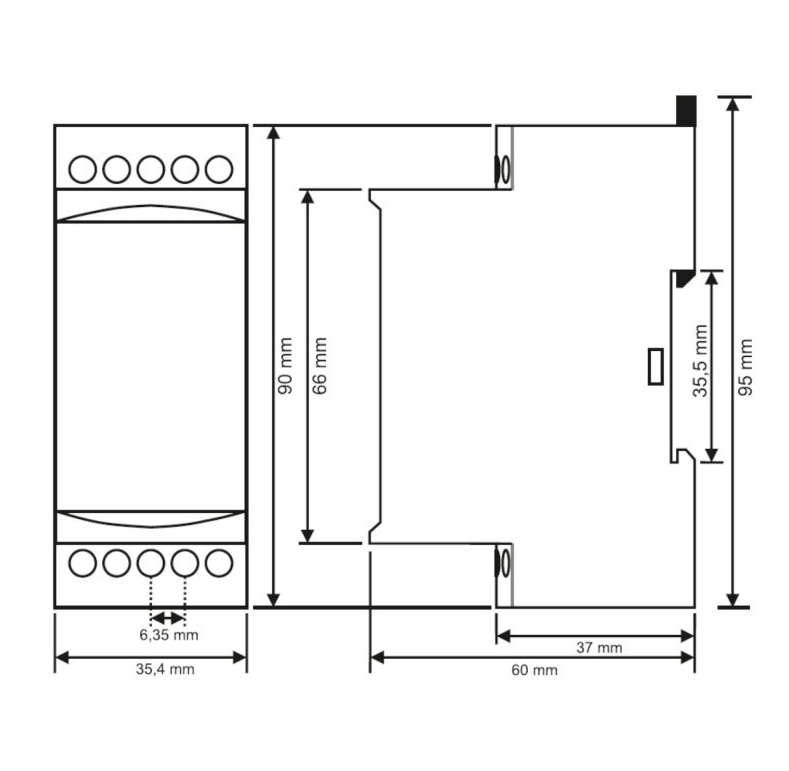

• Dimensions (l × w × h): 8.50 × 7.80 × 3.60 cm
