TENSE

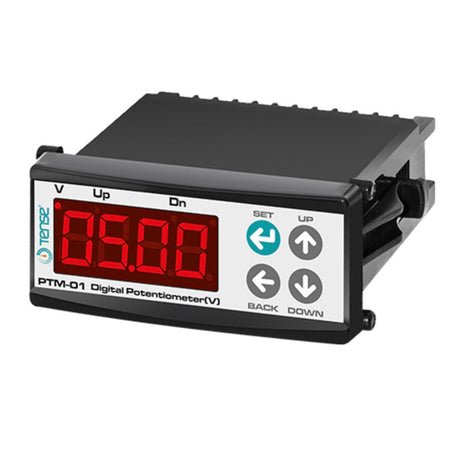

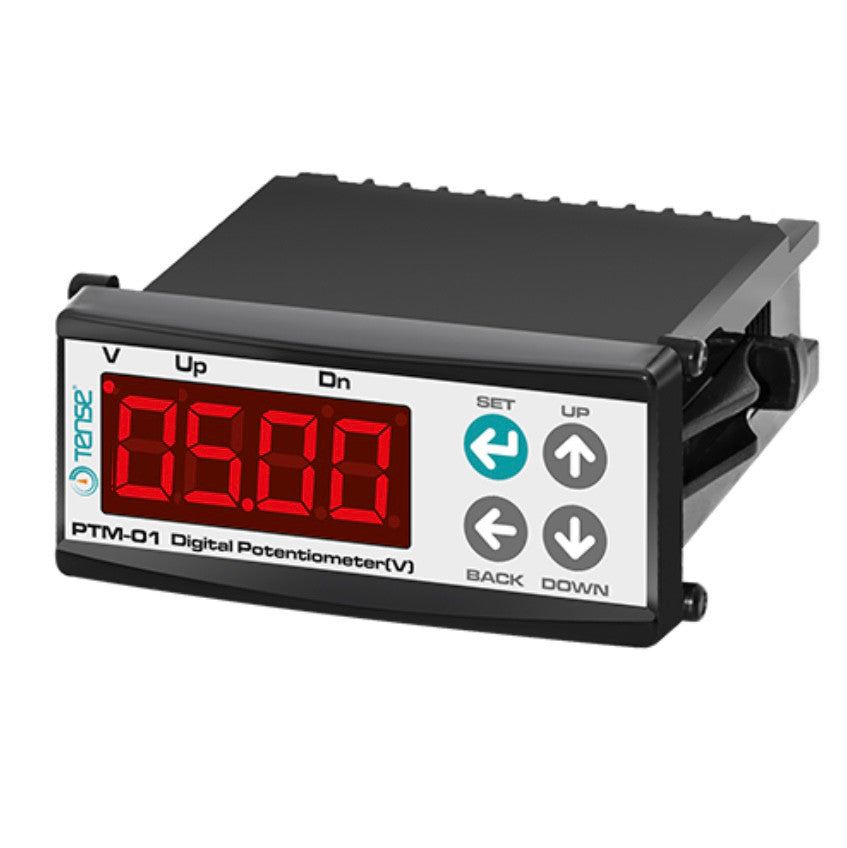

Digital potentiometer, 0-10V voltage source

In stock - 22 items available
SKU: PTM-01
€45,00 incl. VAT

Online payment by card – After completing the order, you will be redirected to the payment portal. You will receive a payment confirmation by email.

Cash on delivery – You pay the amount according to the payment instructions directly to the driver of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day. It contains the account number you should specify when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you want to use one of the last two payment methods, please contact our manager. He will give you instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In case of a complaint, no return shipping fee will be charged.

Digital potentiometers are control devices that produce an analog output between 0-10V.

  • Microprocessor-based
  • Analog output: 0-10V
  • Menu input and control of analog output via keys on the front
  • Control of the analog output via digital inputs
  • Adjustable upper and lower scale level
  • Adjustable upper and lower limits for SET
  • Separate function selection for the front keys and digital inputs for controlling the analog output
  • Password protection
  • SECU setting for enabling/disabling the SET setup menu
  • High accuracy
  • EEPROM memory to store settings
  • Simple connection with plug-in connectors

TECHNICAL SPECIFICATION

  • Dimensions: 35x77mm
  • Panel cutout: 29x71mm
  • Display: 4 digits 7 segments
  • Analog output: 0-10V or 4-20mA (must be specified when ordering)
  • 0-10V load impedance: >5K
  • 4-20mA max. Voltage: <10V
  • Resolution: 2mV (0-10V), 4μA (4-20mA)
  • Accuracy: ±%1; (Overfullscale)
  • User operation: Via up/down buttons on the front panel or up/down digital inputs
  • Digital inputs: Only dry contact input
  • Supply voltage: 100..240VAC, 50-60Hz or 24VDC/AC.
  • Power consumption: < 6VA
  • Humidity: 80% up to 30oC, then linearly decreasing to 50% at 50oC (non-condensing)
  • Height: < 2000 m
  • Protection class: IP20
  • Operating temperature: 0 .. 50 oC
  • Storage temperature: -10oC ... 60oC (no ice formation)
  • Weight: < 0.5 kg
