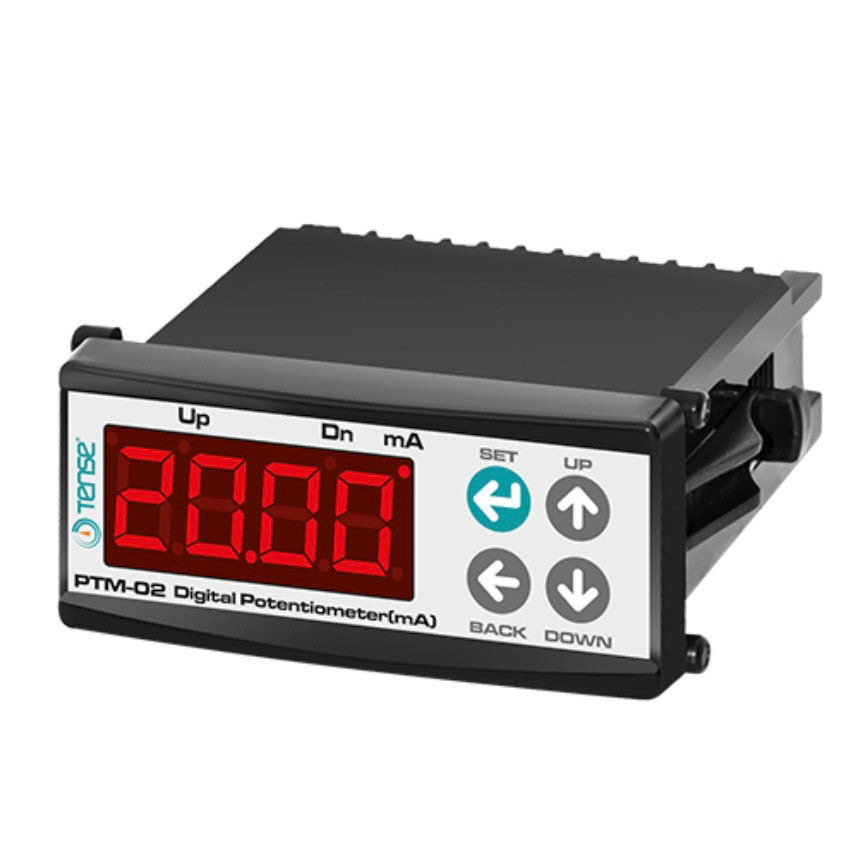

Digital potentiometer current source 4-20mA
- Regular price
- €50,12
- Regular price
-
- Sale price
- €50,12
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty
Digital potentiometers are control devices that produce an analog output between 4-20mA values.
- Microprocessor based
- Analog output: 4-20mA
- Menu input and control of analog output via keys on the front
- Control of analog output via digital inputs
- Adjustable upper and lower scale level
- Adjustable upper and lower limits for SET
- Separate function selection for the keys on the front and digital inputs for controlling the analog output
- Password protection
- SECU setting for enabling/disabling the SET setup menu
- High accuracy
- EEPROM memory to store settings
- Simple connection with plug-in connectors
TECHNICAL SPECIFICATION
- Dimensions: 35x77mm
- Panel cutout: 29x71mm
- Display: 4 digits 7 segments
- Analog output: 0-10V or 4-20mA (must be specified when ordering)
- 0-10V load impedance: >5K
- 4-20mA max. Voltage: <10V
- Resolution: 2mV (0-10V), 4μA (4-20mA)
- Accuracy: ±%1; (Overfullscale)
- User operation: Via up/down buttons on the front panel or up/down digital inputs
- Digital inputs: Only dry contact input
- Supply voltage: 100..240VAC, 50-60Hz or 24VDC/AC.
- Power consumption: < 6VA
- Humidity: 80% up to 30oC, then linearly decreasing to 50% at 50oC (non-condensing)
- Height: < 2000 m
- Protection class: IP20
- Operating temperature: 0 .. 50 oC
- Storage temperature: -10oC ... 60oC (no ice formation)
- Weight: < 0.5 kg
