Plastim

Duct fan, control panel fan, 400m3/h, 230VAC, 364x364x107mm, IP54, PTS4000

In stock - 10 items available
SKU: PTS4000
€248,40 incl. VAT

Online payment by card – After completing the order, you will be redirected to the payment portal. You will receive a payment confirmation by email.

Cash on delivery – You pay the amount according to the payment instructions directly to the driver of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day. It contains the account number you should specify when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you want to use one of the last two payment methods, please contact our manager. He will give you instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In case of a complaint, no return shipping fee will be charged.

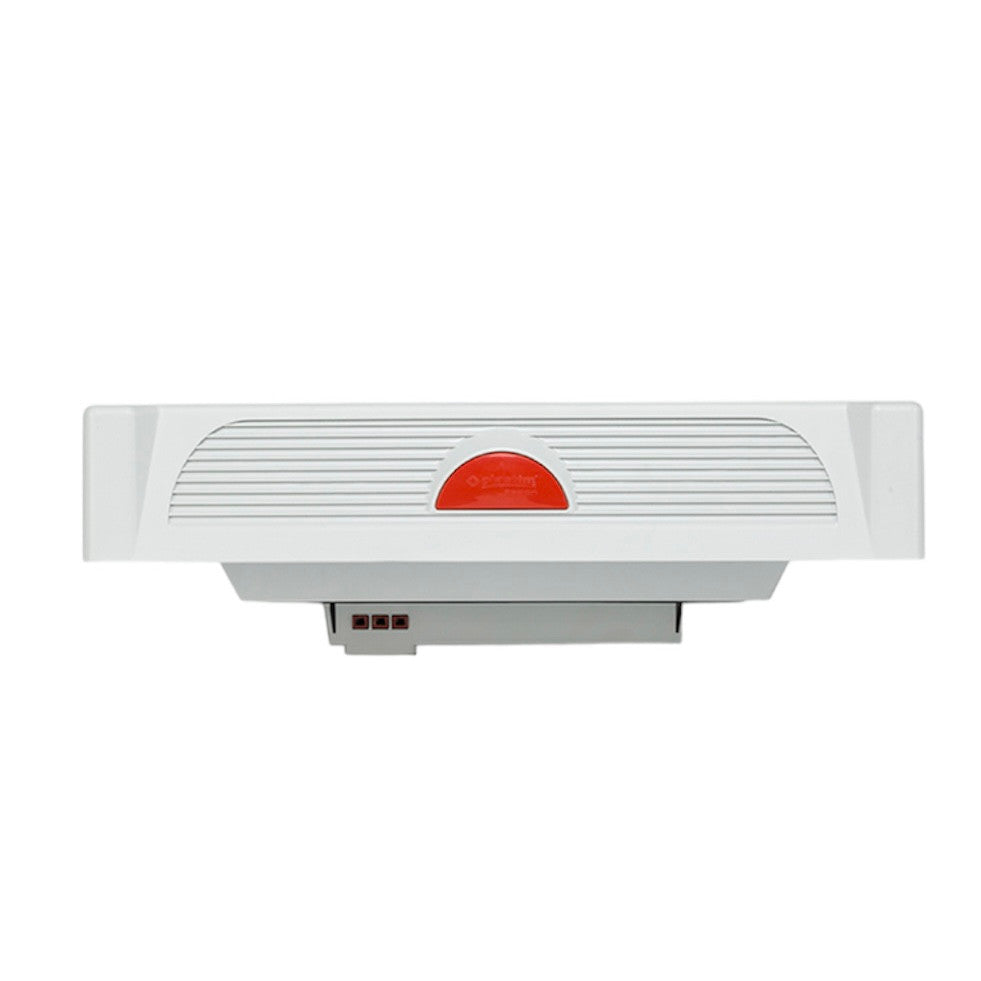

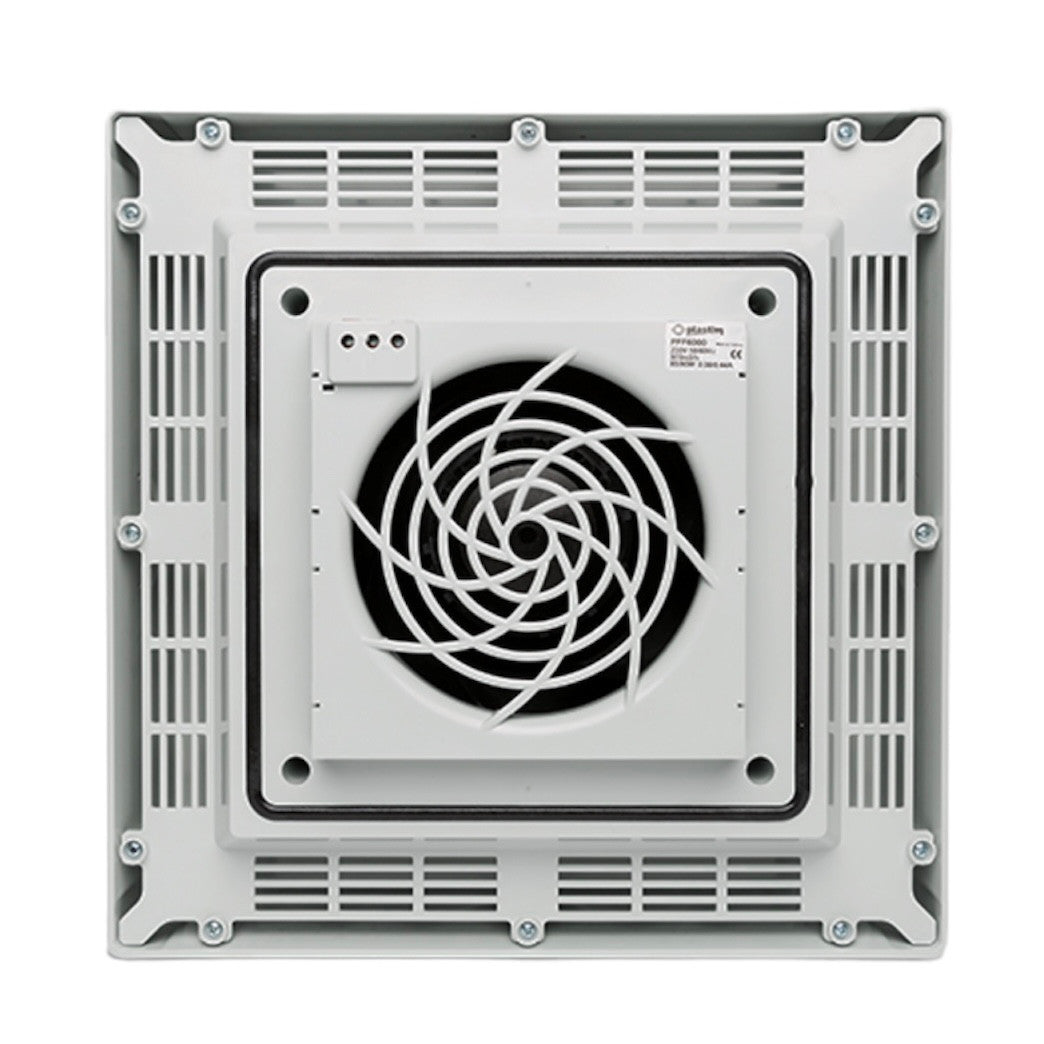

Fan in housing for installation on the roof of the control cabinet, PTS4000, PLASTIM (Turkey)

This fan is designed for use in a microclimate system in a distribution board or automation panel and is usually used in combination with a PTVT or PTHVT thermostat. It is installed on the roof of the cabinet, allowing excess warm air to be expelled from the cabinet volume as efficiently as possible.

Although the fans have the same external dimensions, they differ in the volume of air expelled and the noise level.

  • External dimensions: 364x364x107 mm
  • Installation dimensions: 178x178 mm
  • Air volume: 400 m3/h
  • Noise level: 62 (64) dB(A)
  • Bearing: Ball bearing
  • Lifetime: 50000 h
  • Operating voltage: 220-230VAC, 50/60Hz
  • Power consumption: 0.11/0.15 A
  • Nominal power: 25/32 W
  • Electrical connection: 3-pole 2.5 mm2 terminal
  • Flow direction: The airflow is directed from inside to outside the cabinet
  • Operating temperature: -10/+70 °C
  • Protection class: IP54
  • Plastic: UL94 V0 ABS Flame retardant
  • Sealing: Polyurethane seal
  • Color: RAL 7035
  • Weight: 2.6 kg
  • Installation: Quick Clip-on

For automatic air exchange and temperature control with this fan, you need a simple bimetal thermostat or a more complex temperature controller. Both devices are available on our website.
