Bimetal thermostat 0-60C NC, PTHT, Plastim

Barcode: PTHT

Regular price: €9,24
Regular price
Sale price: €9,24
Unit price: per

excl. VAT: €8

427 in stock

Product variants

Description
Payment methods
Warranty

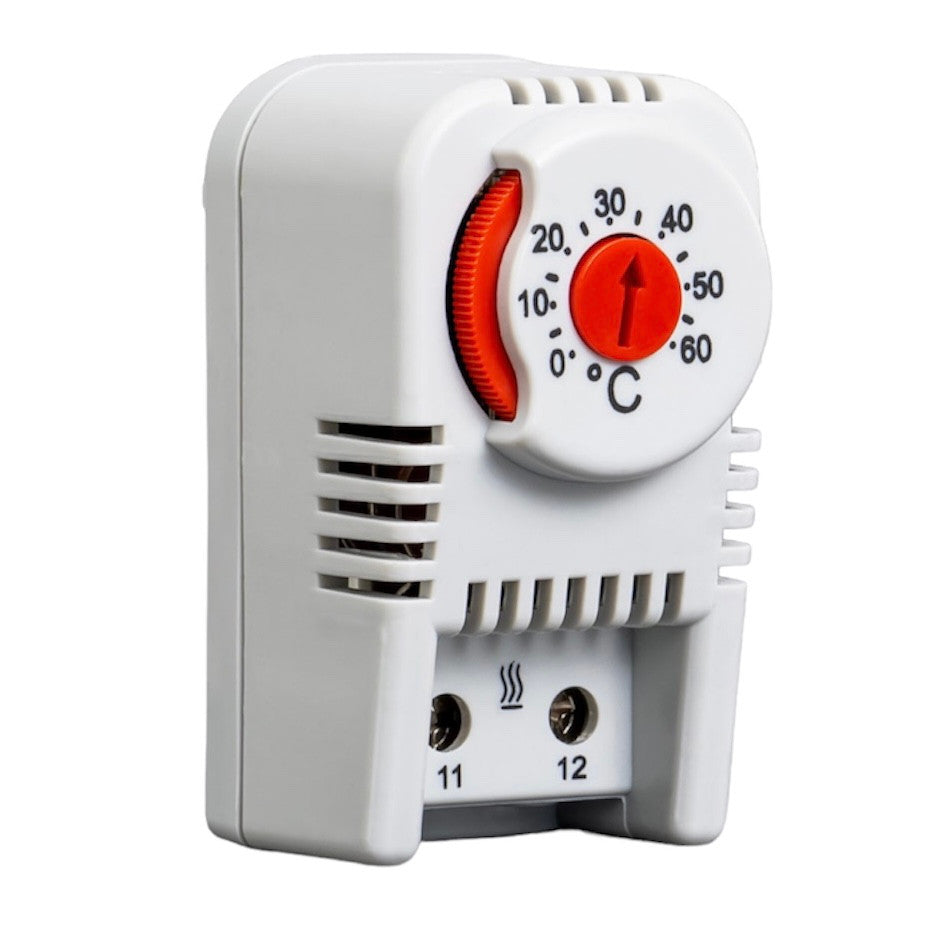

Thermostat for heating control. Adjustable temperature 0-60°C. Mounting on DIN rail. 1xNC, Plastim bimetal thermostats.

Simple thermostat. 220(250) V AC. Bimetal sensor with type, heating function. Electrical connection with 2 terminals 2.5 mm2. Mounting option on 35mm DIN rail, cross rails, on mounting panel.

Used to connect heating elements - heating elements, panel heaters, underfloor heating, heating cables, heat fans

Features	PTHT
Contact type	NC
Setpoint range	0-60°C
Potentiometer color	Red
250 V AC / 120 V AC	10 (2)A
Sensor type	Bimetal
Contact type	Unexpected Action
Lifespan	> 100,000
Electrical connection	2-pole terminal, screw terminals
Plastic	UL94 V0 ABS Flame retardant
Protection rating	IP20
Operating temperature	-25 / +80 °C
Storage temperature	-45/+80°C
Installation	DIN rail 35 mm

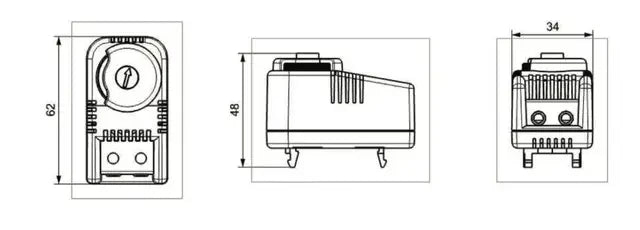

Dimensions HxWxD	61x34x38 mm
Weight	45g
