Vendor: TENSE

Operating hours counter with LCD display 24AC/DC 230VAC

Barcode: HM-48D
€31,20
€31,20
excl. VAT: €25,79
Low stock: 1 left
Vernieuw: Ja
Reset: Ja
  • Description
  • Instructions
  • Payment methods
  • Warranty

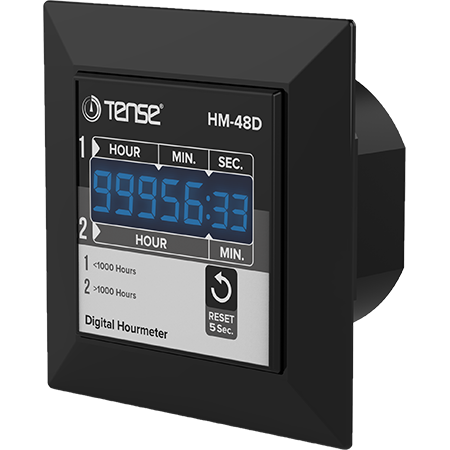

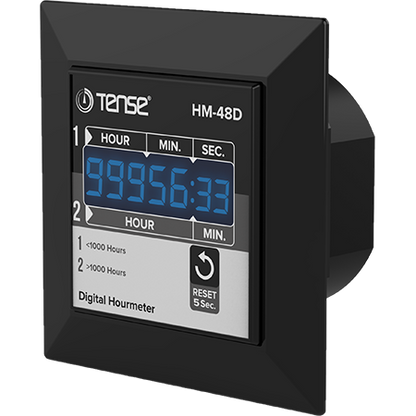

Digital hour meter - TENSE

Product description:
The digital hour meter is designed to measure the operating time of any load that starts when the power supply voltage is connected. The meter is suitable for industrial machines, equipment, switching devices, and automation systems.

Technical specifications

  • Operating voltage: 160-240 V AC, 50/60 Hz

  • Alternative power supply: 24 V AC/DC

  • Power consumption: < 7 VA

  • Operating temperature: -20 °C ... +55 °C

  • Time range: 0 seconds to 99,999 hours 59 minutes

  • Display: 1×7 LED

  • Connection: terminal block

  • Mounting: in panel

  • Weight: < 60 g

  • Altitude during use: < 2000 m

  • Cable diameter: < 1.5 mm²

Operating principle

  1. Connect the counter according to the wiring diagram.

  2. When the power is connected, it automatically starts counting the operating time.

  3. Display of the values:

    • Up to 1000 hours: hour format: minutes: seconds

      • Example: 12345:30 → 123 hours, 45 minutes, 30 seconds

    • More than 1000 hours: hour notation: minutes

      • Example: 14530:45 → 14,530 hours, 45 minutes

Usage

  • Cumulative measurement of operating time of machines and equipment

  • Monitoring the operation of motors, pumps, fans, and automation lines

  • Maintenance planning and monitoring of equipment lifespan
