Asymmetric cycle timer relay with two displays -12VDC, 230VAC
- Regular price
- €43,88
- Regular price
-
- Sale price
- €43,88
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty

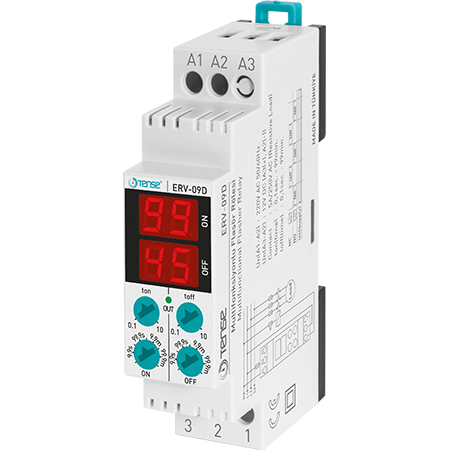

Cyclic relay ERV-09D - TENSE (Turkey)
The ERV-09D signaling and cyclic relay is designed for applications where alternating (on-off) control of equipment is required. It is suitable for industrial installations, production lines, residential and office buildings, or any situation where periodic load switching is needed.
Main features
-
Universal power supply: 230 V AC or 12 V DC
-
Adjustable operating time (ON): 1 s - 99 min
-
Adjustable standby time (OFF): 1 s - 99 min
-
Display shows current settings and countdown time
-
Indication ON = operating time, OFF = standby time
-
Mounting on DIN rail
-
Low power consumption: < 6 VA
-
Compact and lightweight: weight < 80 g
Functions and controls
-
Dual mode: ON/OFF
-
Countdown of the set time is displayed on the LED display
-
When the time is set in minutes, the dot on the right blinks for easy orientation
-
Ideal for switching lighting, fans, motors, and other devices
Technical specifications
| Parameter | Value |
|---|---|
| Operating voltage | 100-240 V AC (A1-A2), 12 V DC (A2(-)/A3(+)) |
| Operating frequency | 50/60 Hz |
| Power | <6 VA |
| Operating Temperature | -20 °C to +55 °C |
| Time interval | 0.1 s - 99 min |
| Display | 2×2 LED + 1 LED indication |
| Contact | 5 A / 250 V AC, resistive load |
| Installation | DIN rail |
| Weight | <80 g |
| Height in use | <2000 m |
| Cable cross-section | up to 2.5 mm² |
The ERV-09D relay offers reliable and accurate cyclic switching with simple setting and visualization of times directly on the display, making it suitable for industrial and household applications.
