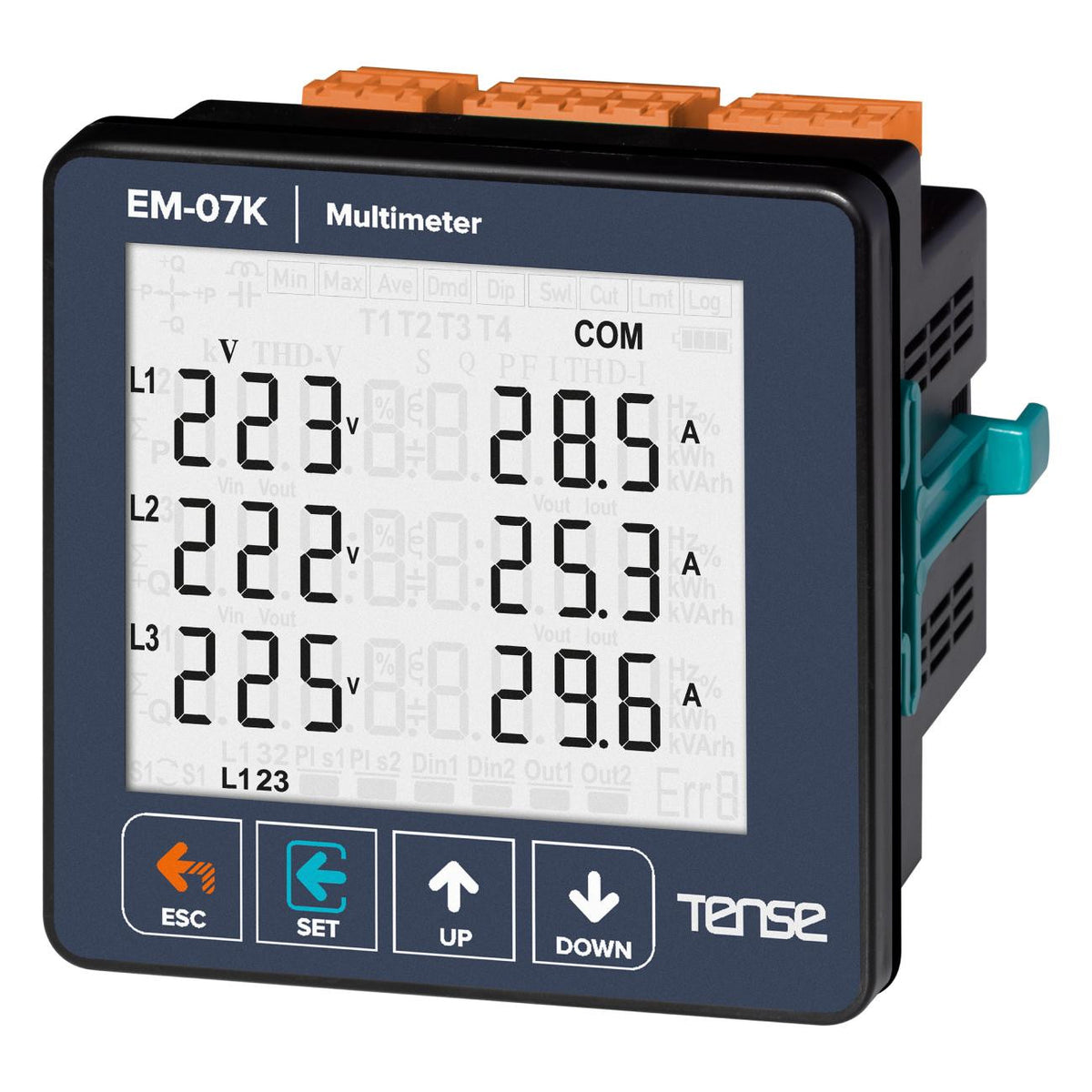

3-phase RS485 spanning frequency power energy current multimeter for panel mounting
- Regular price
- €98,00
- Regular price
-
- Sale price
- €98,00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty
Three-phase multimeter - 3-phase multifunctional digital panel meter, current, voltage, frequency, and total power indicator, energy kW*h and ModBus RTU manufacturer TENSE (Turkey), panel meters.
Key benefits:
- RS485 Modbus RTU (1200-38400bps)

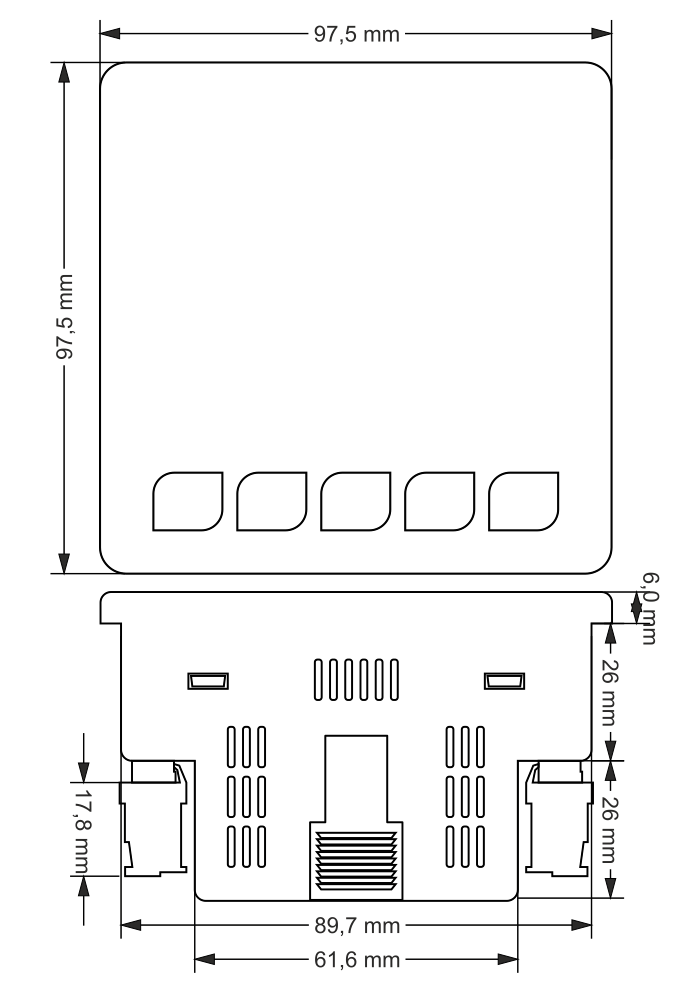

- 71.5 x 61.5 custom glass LCD design

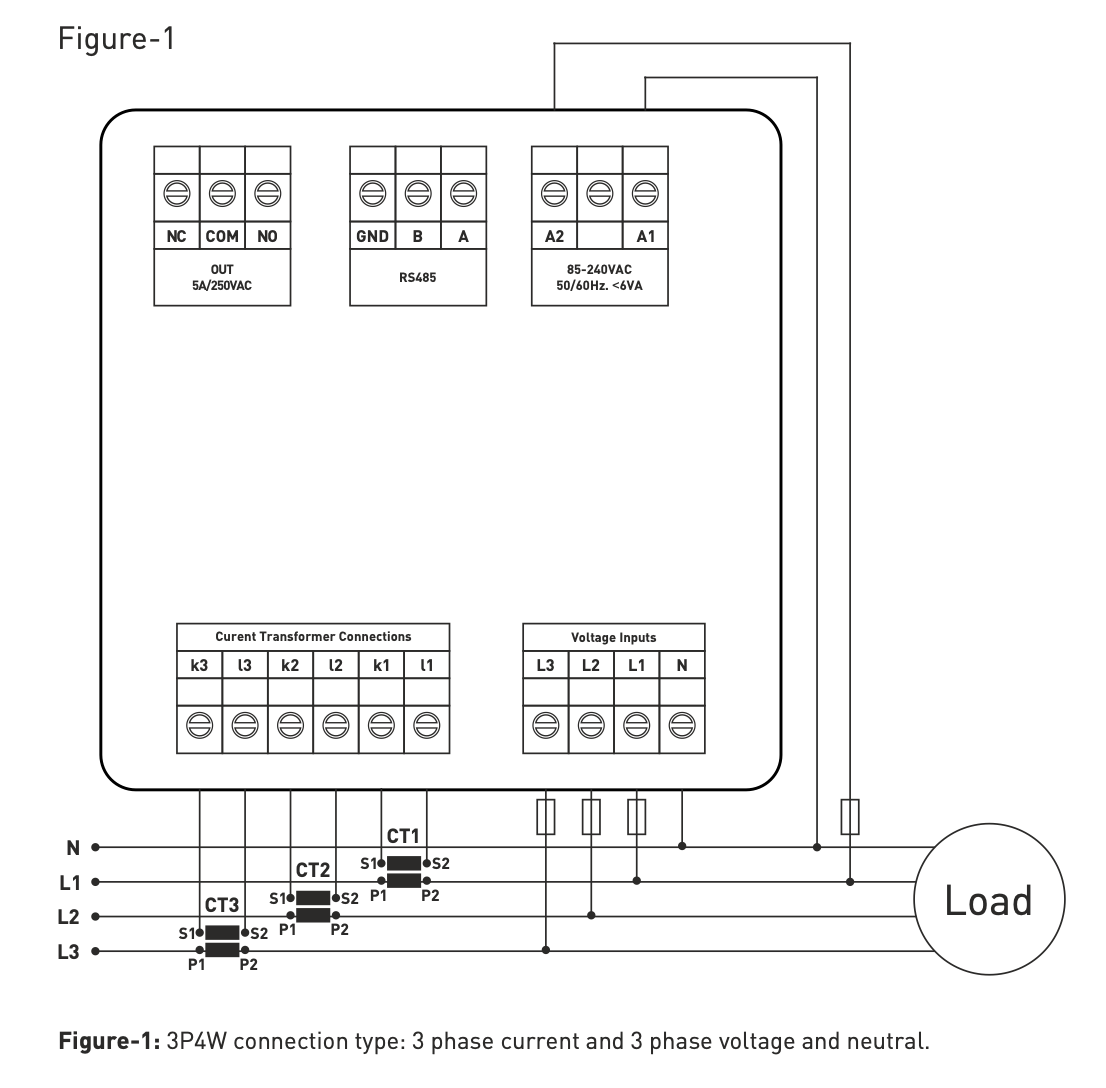

- 3-phase voltage transformer and 3-phase current transformer.
- Displays V1, V2, V3, V12, V23, V31, I1, I2, I3, S1, S2, S3, F1, F2, F3.
- Displays the minimum, maximum, and average values of V1, V2, V3, V12, V23, V31, F1, F2, F3.
- Displays minimum, maximum, average, and setpoints I1,I2,I3,S1,S2,S3 High/low voltage, current, frequency (configurable) Phase-neutral or phase-phase protection (configurable)
- Energy meter / Power meter
- Protects voltage, current, and frequency
- Display phase sequence
- You can clear requirements
- Menu is password protected.
Typically, this multimeter is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can purchase such transformers in our e-shop,
