3-Phase Digital Panel Multimeter DIN Current, Voltage, and Frequency Indicator
- Regular price
- €61,52
- Regular price
-
- Sale price
- €61,52
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty

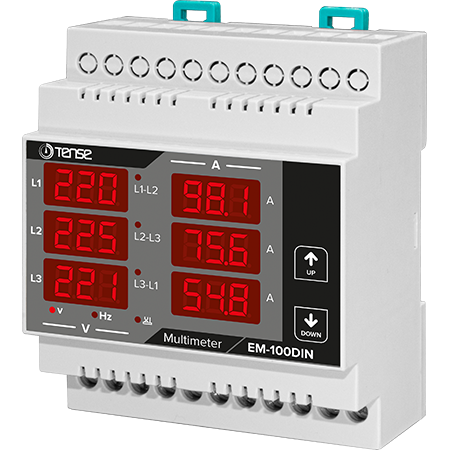

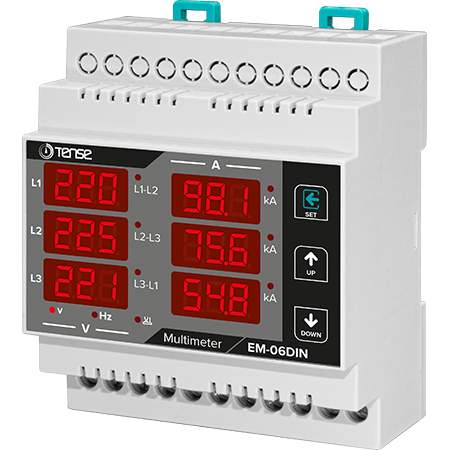

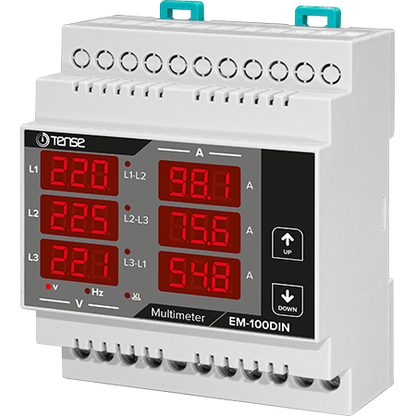

TENSE 3-fasen multifunctionele paneel multimeter
Beschrijving
De TENSE digitale 3-fasen multimeter is een multifunctionele paneelmeter die is ontworpen voor het bewaken van elektrische parameters in 3-fasen systemen. Het instrument geeft spanning, stroom en frequentie weer en maakt bewaking van afzonderlijke fasen mogelijk.
De multimeter is ontworpen voor montage op een standaard DIN-rail van 35 mm.
Belangrijkste voordelen
Multifunctionele meting van 4 grootheden:
Stroom (I)
Spanning (U) - L-L en L-N
Frequentie (Hz)
Monofasige bewaking
Nauwkeurige meting met stroomtransformator
Meegeleverde meettransformator op EM-100DIN en EM-250DIN modellen
Eenvoudige montage op standaard DIN-rail
Technische specificaties
| Parameter | Waarde |
|---|---|
| Stroommeetbereik | EM-06DIN: 5/5 ... 9995/5 A (indirecte meting) EM-100DIN: 1 - 100 A EM-250DIN: 2 - 250 A |
| Spanningsmeetbereik | L-N: 1 - 300 V AC L-L: 1 - 500 V AC |
| Frequentie | 40 - 60 Hz |
| Installatie | DIN-rail 35 mm |
| Toepassing | Industriële en huishoudelijke 3-fasen netwerken |
Aanbevelingen
Voor een nauwkeurige stroommeting raden we aan compatibele stroomtransformatoren te gebruiken:
60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5Transformatoren kunnen rechtstreeks in onze e-shop worden gekocht.
