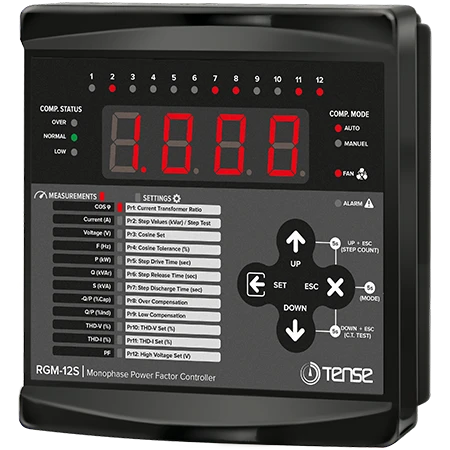

12-level reactive power controller with LED display
- Regular price
- €168,84
- Regular price
-
- Sale price
- €168,84
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
12 steps Single-phase connection Power factor controller for power factor regulation in networks with balanced loads (TENSE)
The reactive power control relay RGM-12S is designed to reduce inductive power that does not use loads but is drawn from the network. When inductive reactive power is drawn from the network, the relay intervenes by activating capacitors with the correct value. In this way, it tries to bring the Cos-phi value to the desired level.
7 Different programs for power factor compensation
Manual compensation programs for cos phi
Can only compensate inductive systems
Automatic step measurement
Step drive, charge and discharge times are adjustable
Harmonic alarm values for voltage and current adjustable
Alarm values for over- and undercompensation can be set
Alarm output voltage, harmonic voltage/current, over- and undercompensation
Voltage, current, and frequency values can be monitored
Values for active power, reactive power, and apparent power can be monitored.
Up to 15th harmonic THD-I can be monitored.
Up to 15th harmonic THD-V can be monitored.
Cosine value can be monitored
Power factor can be monitored
Automatic fan output
Equal aging in steps (in some compensation programs)
