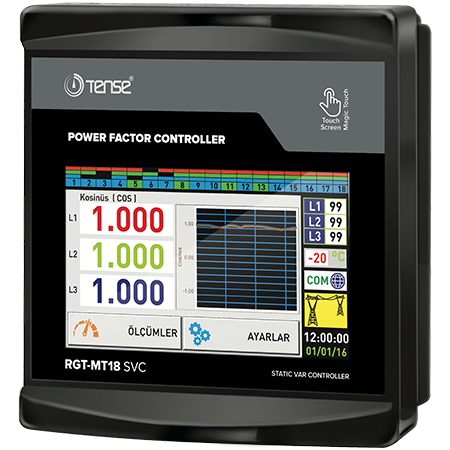

RGT-MT18 - Blind Power Controller 18 Level +TCR with RS485 ModBus

18 steps + TCR Power factor controller for symmetrical/asymmetrical networks with 5 inch touchscreen and RS-485 (TENSE)

Reactive power regulation relays are designed to reduce reactive power (inductive and capacitive) that is not used by the load and is drawn from the grid. When inductive power is drawn from the grid, the relay intervenes by removing a capacitor of an appropriate value. When capacitive power is taken from the electricity grid, it intervenes by taking a shunt inductor of the correct value. In this way, it attempts to reduce the inductive/active and capacitive/active speeds of the system. It is designed to provide a more reasonable compensation in unbalanced inductive and capacitive systems with the RGT-MT18 TCR step.

• Generator input and generator compensation

• Voltage, harmonic current/voltage, inductive and capacitive alarm output

• Starting, discharging, and settling times can be adjusted

• Remote communication via RS485 (RS485 ModBus RTU)

• Single-phase, two-phase, and three-phase capacitors and shunt reactors can be connected

• Harmonic voltage and current can be observed up to the 61st harmonic

• Total energy (import/export) can be monitored

• THD-V and THD-I values of each phase can be viewed

• Create power analysis (20 samples 9999 min.) - for capacitor selection

• Temperature alarm output

• Demand registration (active and reactive and apparent power and current demand)

• Minimum, maximum, and average current and voltage values of each phase can be monitored

• Current date and time
